Compact capability
Selected for demanding property and project work.
4 Ton, Kubota Diesel Engine Mini Excavator w/ Hydraulic Thumb & A/C | CFG-40UF
4.9/5 243 reviews
$3,500.00
Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb. Dimension Operating Weight: 3.8 Ton (8377 lb) Overall Length: 4890 mm (192.5 in) Overall Width: 1700 mm (67 in) Overall Height: 2555 mm (100.5 in) Track Size: 3005584...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

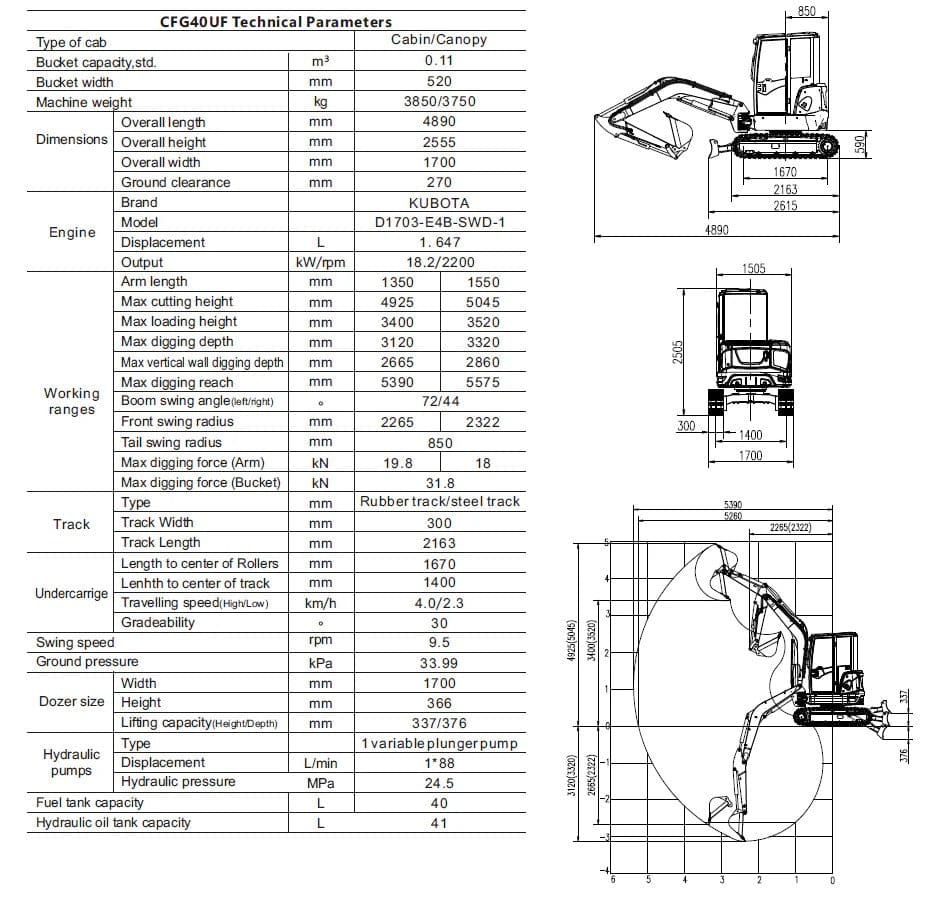

Dimension
Operating Weight: 3.8 Ton (8377 lb)
Overall Length: 4890 mm (192.5 in)
Overall Width: 1700 mm (67 in)
Overall Height: 2555 mm (100.5 in)
Track Size: 3005584 (WPL)
Working Range
Max Digging Depth: 3320 mm (131 in)
Max Digging Height: 5045 mm (198 in)
Max Dumping Height: 3520 mm (138 in)
Max Reach at Ground: 5575 mm (219 in)
Dozer Blade Width: 1700 mm (67 in)
Dozer Blade Height: 366 mm (14 in)
Blade Max Lifting Height: 336 mm (13 in)
Blade Max Drop Depth: 336 mm (13 in)
Engine
Engine Brand: Kubota
Fuel Type: Diesel
Model: D1703-E4B
Rated Power: 18.2 kW (24.4 HP)
Displacement: 1647 cc
Fuel Capacity: 40L (10.6 gal)
Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
Hydraulic Pressure: 24.5 MPa (3553 psi)
Hydraulic Tank Capacity: 41 L (10.8 gal)
Battery: 12V

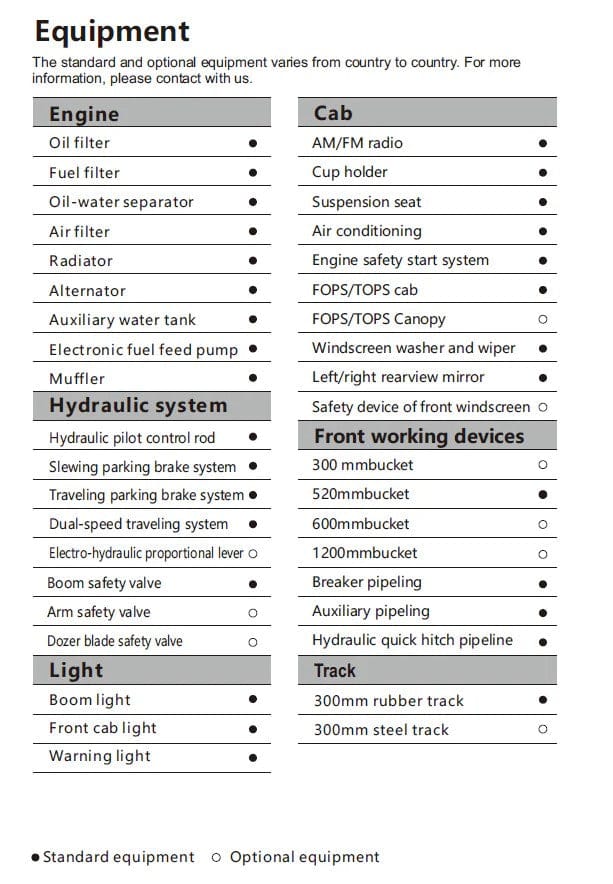

Features
Enclosed Cab
LED Lights
AM/FM Radio
AC
Rearview Mirror
Pilot Control
Side Swing Boom
Delivery information
Freight planned for your destination.
Nationwide U.S. delivery is shipping only, with no pickup. Typical delivery is 2–6 weeks depending on equipment, inventory, ZIP code, and freight scheduling. Heavy equipment may require specialized freight coordination.
Ordering information
Order securely online.
Add this equipment to your cart and complete checkout at the displayed full price. Delivery details are confirmed as part of order processing.
Customer confidence
Trusted through every step.
Customer feedback about compact equipment, ordering, delivery, and support.
“Compact enough for our property but much more capable than I expected. It has been extremely useful for trenching and landscaping work.”
“Excellent build quality and very clear communication. Delivery was organized and everything arrived as expected.”
“The ordering process was simple and transparent. HyperLifts kept us updated throughout the entire order.”
“Very impressed with the quality of the equipment. It feels professional and built for long-term use.”
“Freight access and delivery timing were explained clearly, and the equipment arrived as coordinated.”
“Fast responses, honest information, and a premium experience from start to finish.”
“The compact size has made it useful around the property for maintenance, cleanup, and farm work.”
“Everything was explained clearly before ordering. No surprises and great communication.”
“Professional service and a high-quality product. We would definitely recommend HyperLifts.”
“Great experience overall. The team helped us select the right solution for our needs.”
Common questions
Before you order.
Can you help me choose the right Mini Excavator?
Our team can help compare machines based on intended use, project type, size requirements, delivery access, and budget.
How do I order this equipment?
Choose your configuration, add the equipment to your cart, and complete secure checkout at the displayed full price.
How long does delivery take?
Typical delivery may take approximately 2–6 weeks depending on equipment, inventory, ZIP code, and freight scheduling.
How is delivery arranged?
Freight transportation, destination access, unloading requirements, and expected timing are reviewed before delivery is scheduled.
