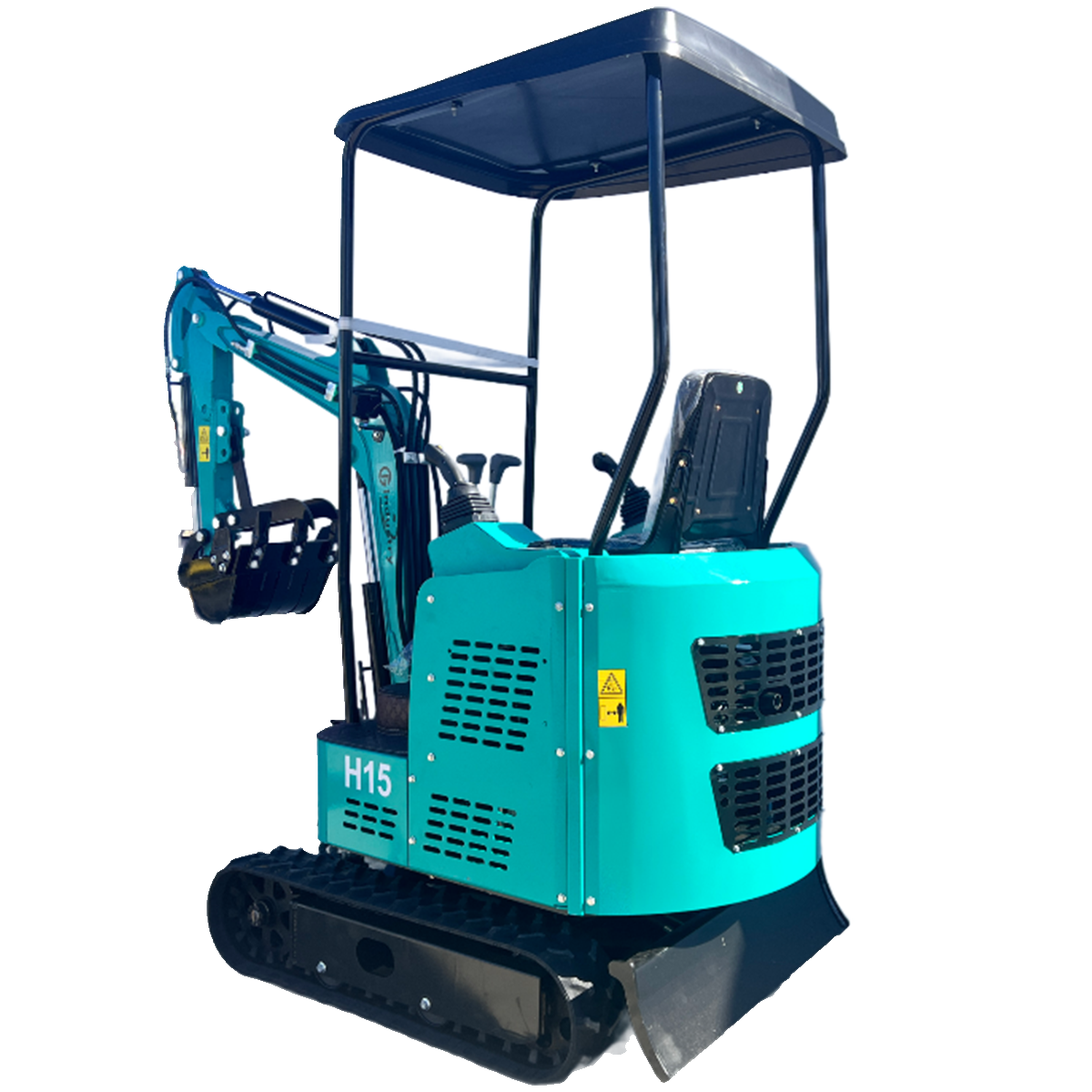

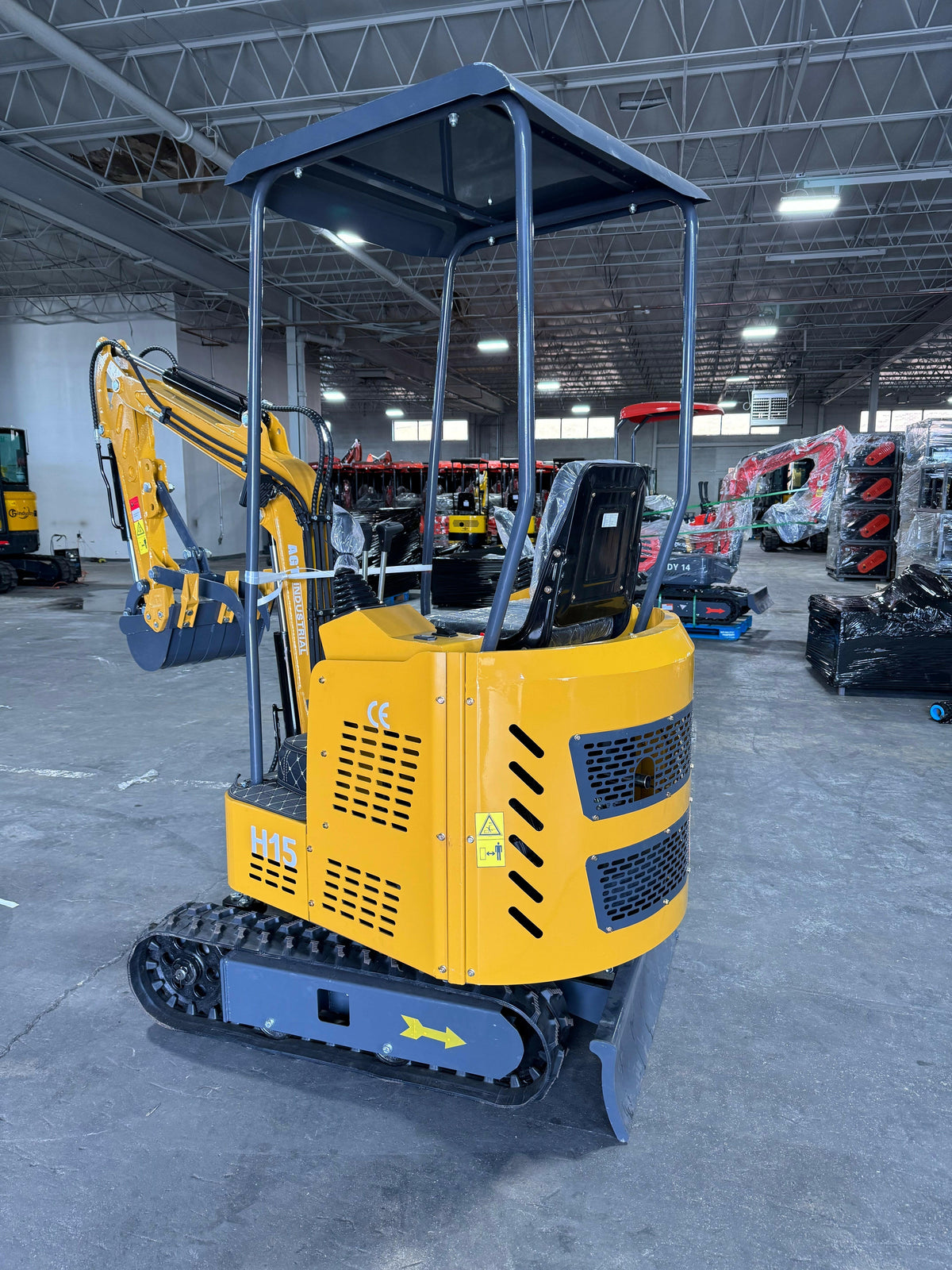

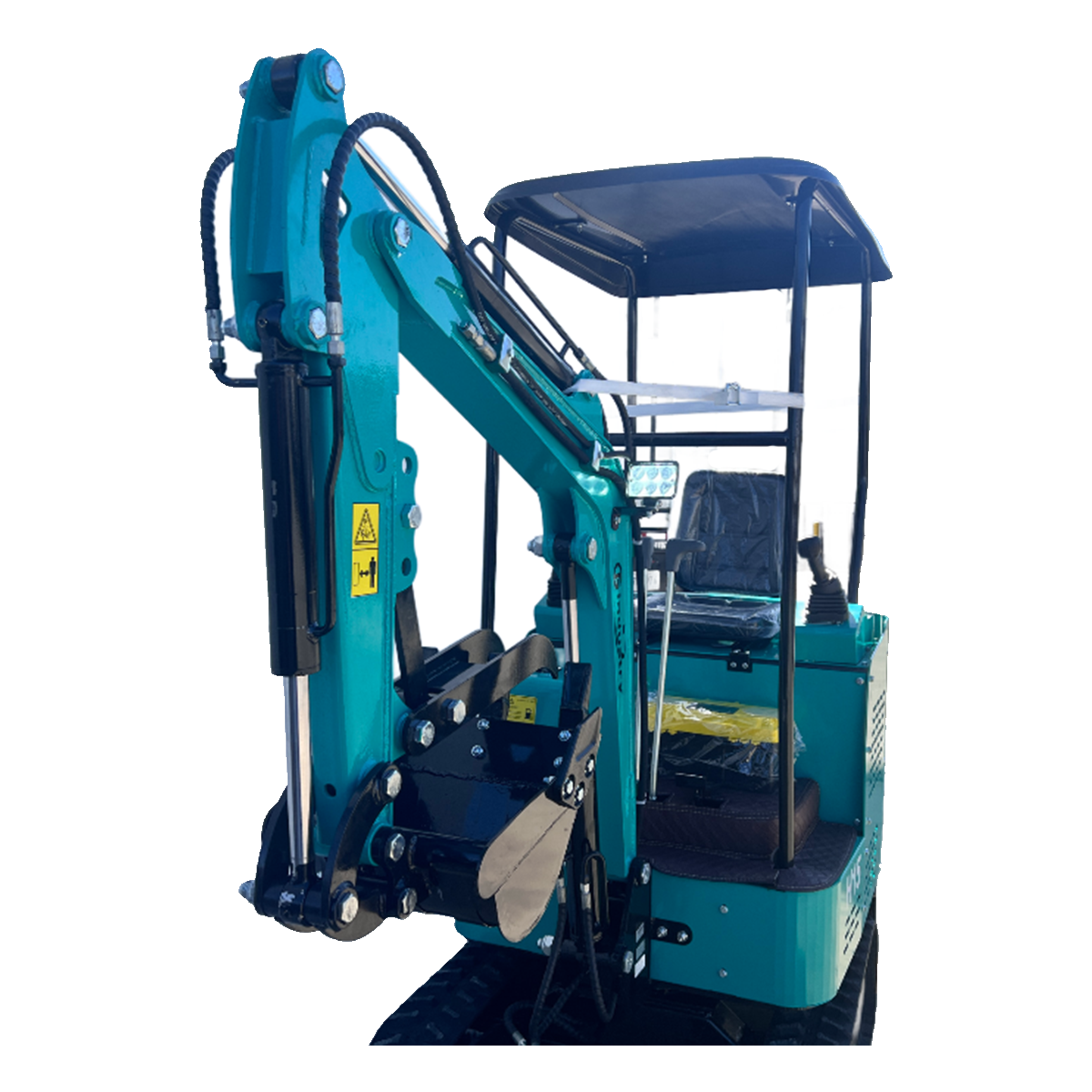

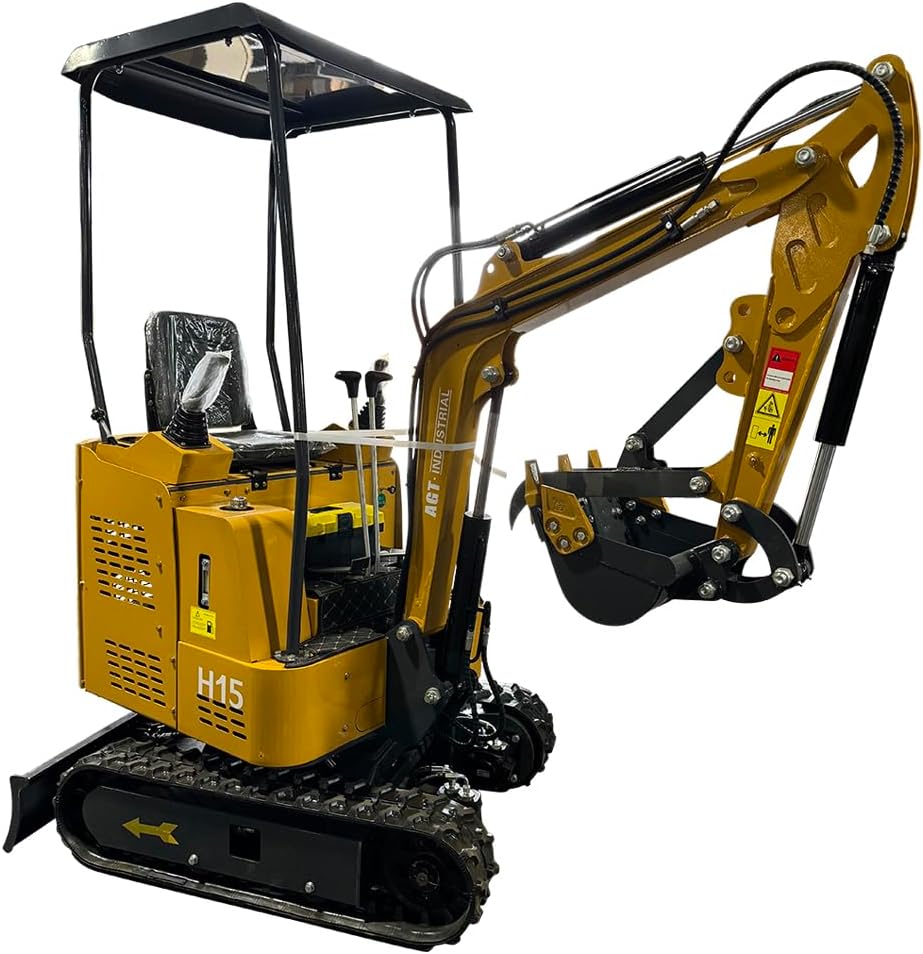

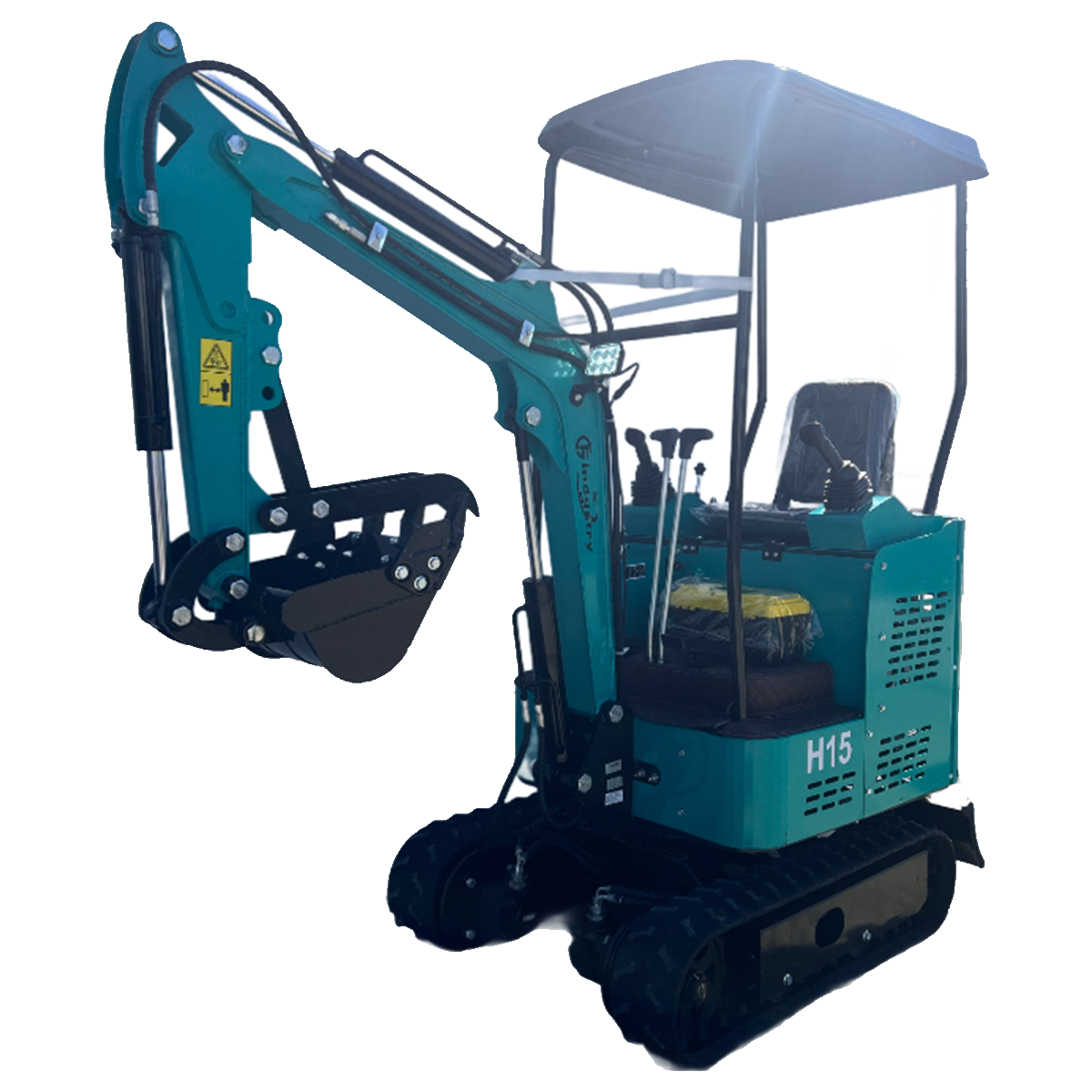

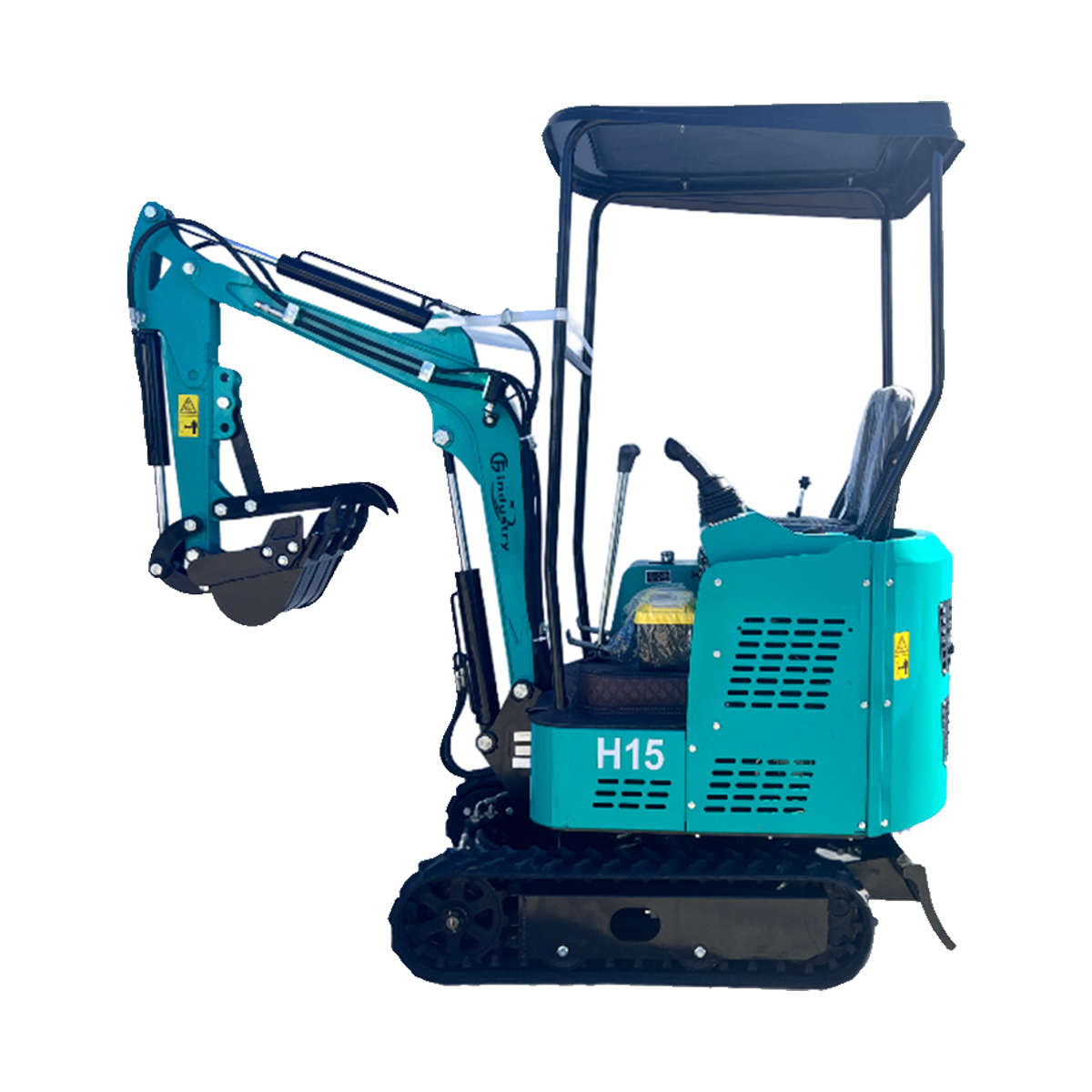

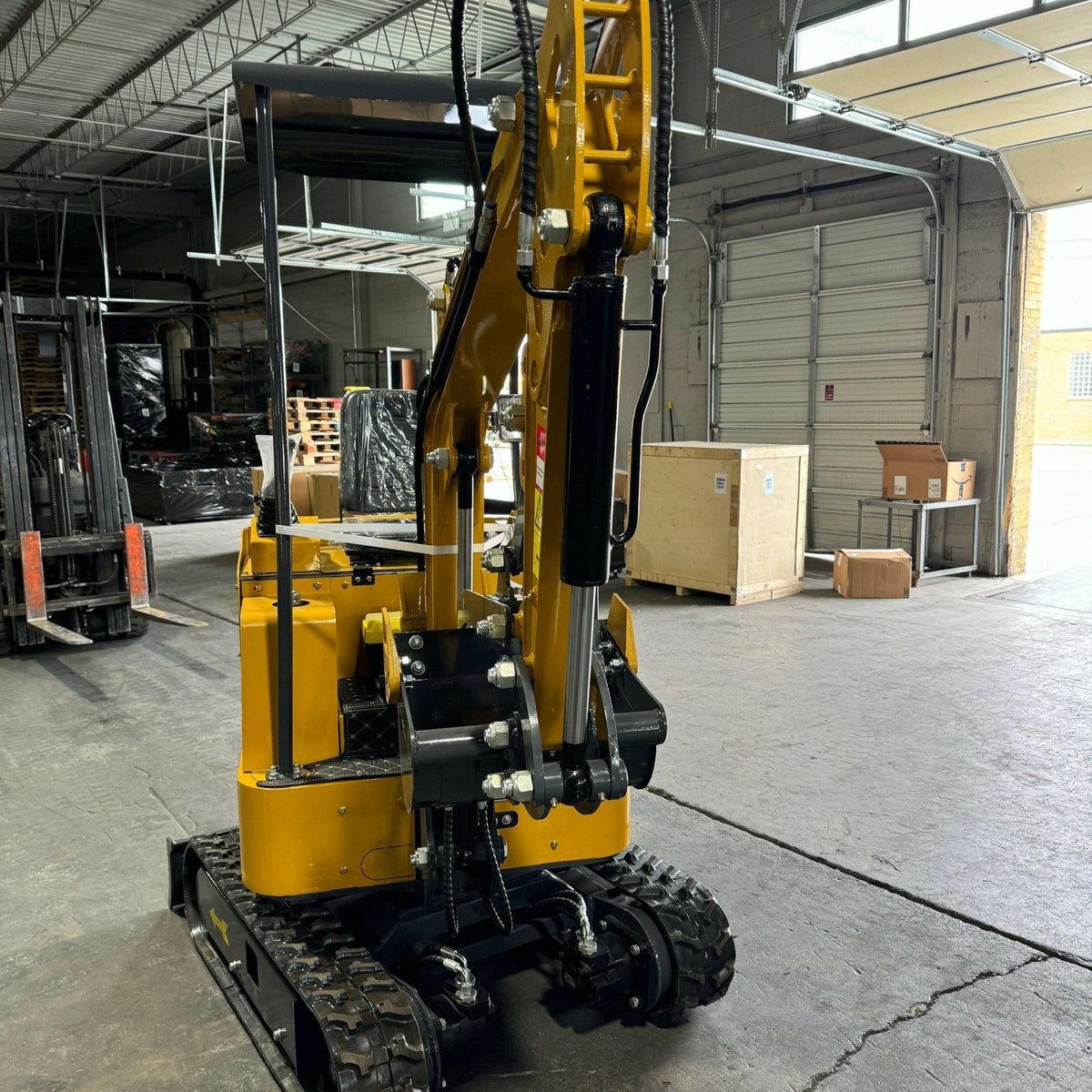

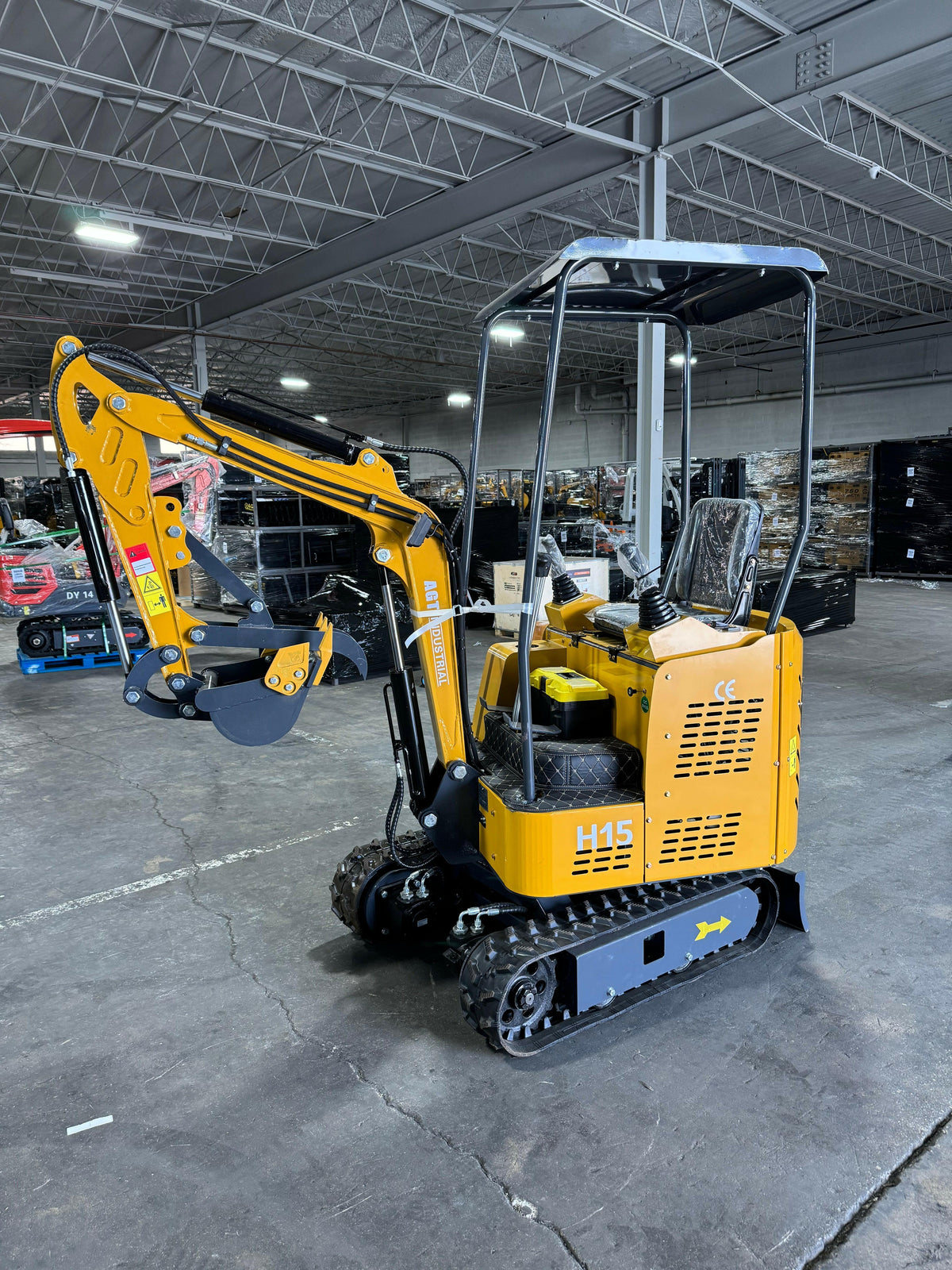

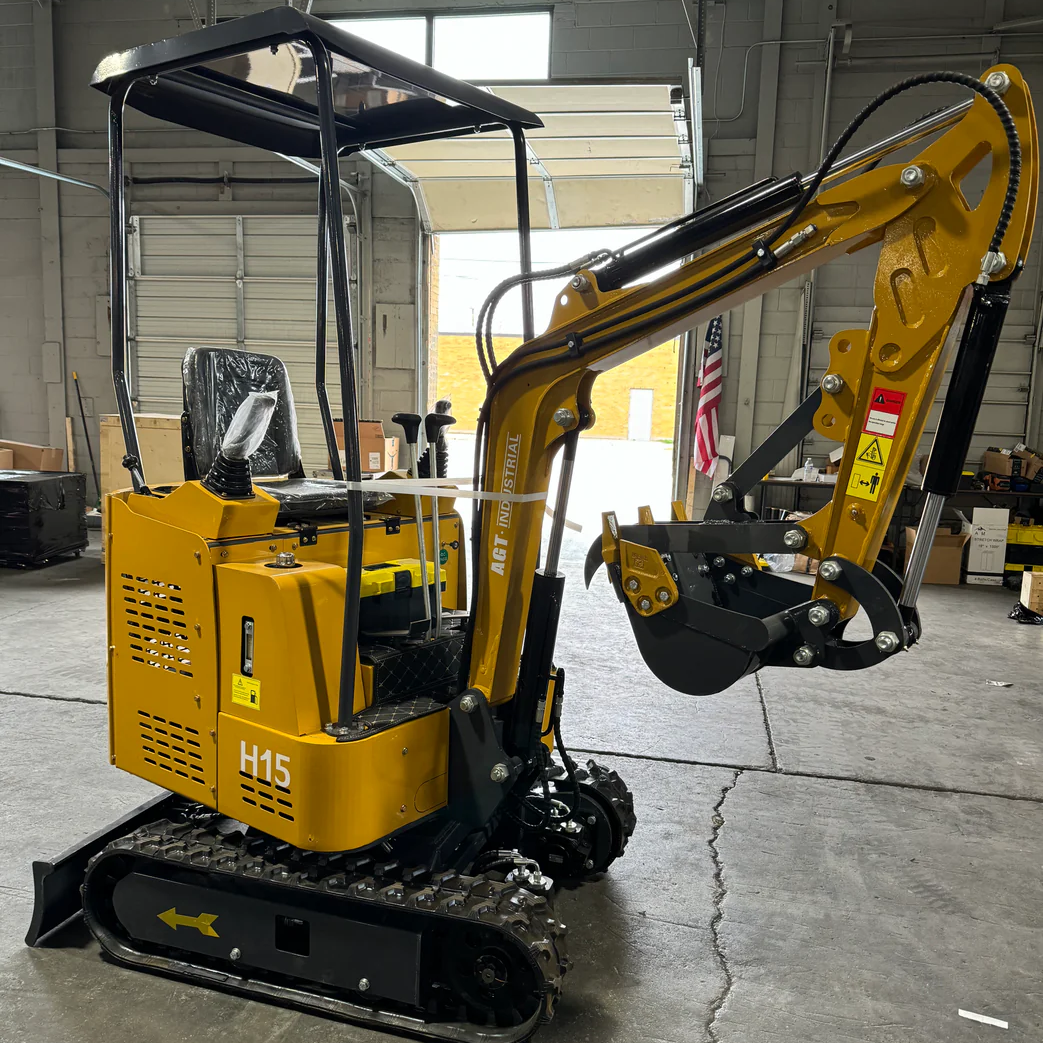

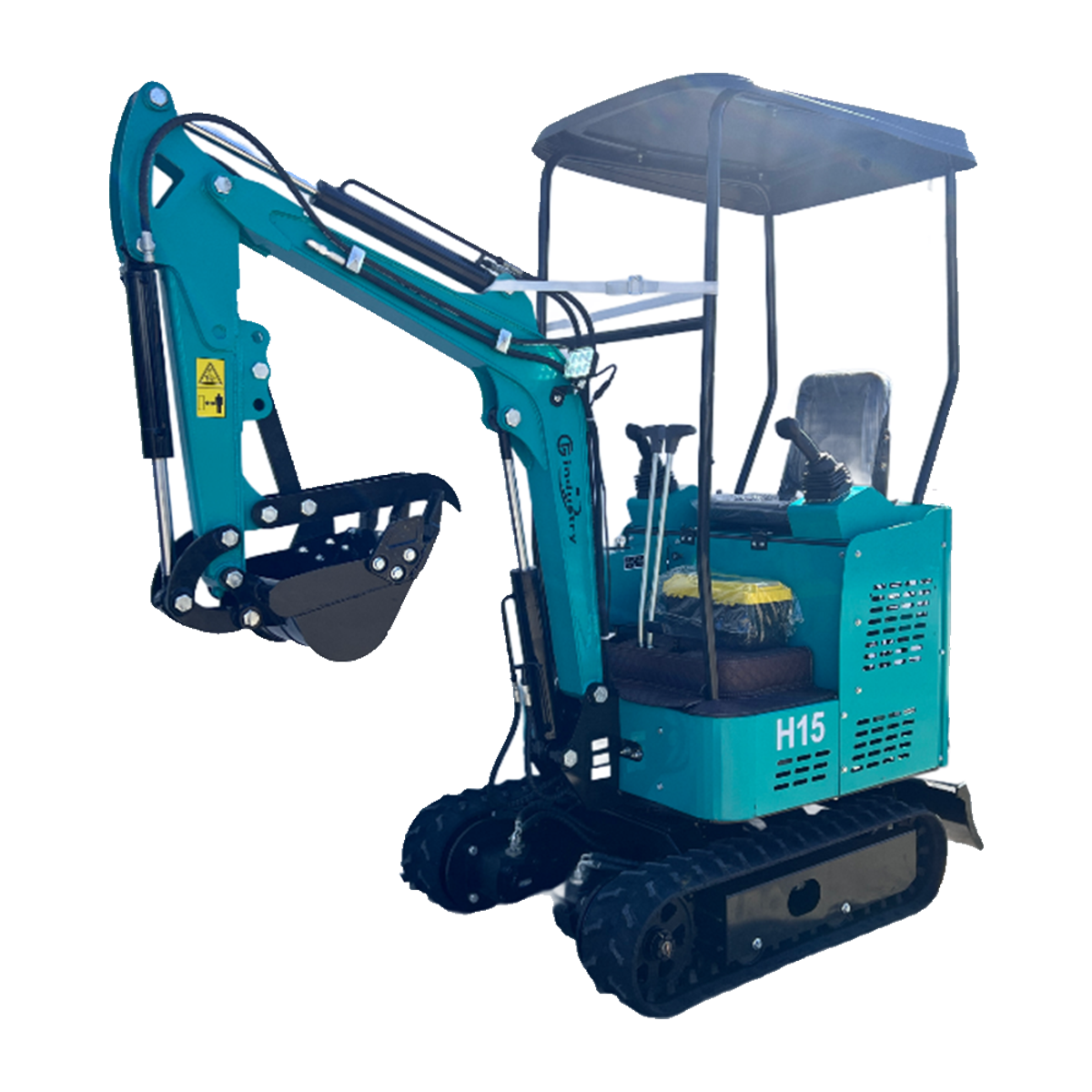

1 Ton Mini Excavator RATO 13.5HP Gasoline w/ Pilot Control | AGT-H15R
4.9/5 243 reviews
$3,977.36
Professional equipment built for demanding jobs. 1 Ton Mini Excavator RATO 13.5HP Gasoline w/ Pilot Control | AGT-H15R The AGT-H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1-ton design and a maximum digging...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
1 Ton Mini Excavator RATO 13.5HP Gasoline w/ Pilot Control | AGT-H15R
The AGT-H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1-ton design and a maximum digging depth of 5.41 feet. Ideal for tight spaces like gardens, parks, and orchards, it combines maneuverability with enhanced safety features, including internal hydraulic hoses and rear-opening compartments for easy maintenance.
In Action Video
Manual
Hydraulic pump: PGP51063G3LP
Dimension
- Operating Weight: 1 Tons (2,200 lbs)
- Overall Length: 2,140 mm (84 in)
- Overall Width: 1,000 mm (40 in)
- Overall Height: 2,190 mm (86 in)
- Track Width: 180*72*37 (Width*Pitch Length*Links)
Working Range
- Max Digging Depth: 1,650 mm (65 in)
- Max Digging Height: 2,610 mm (102.5 in)
- Max Dumping Height: 1,850 mm (73 in)
- Max Reach at Ground: 2,815 mm (111 in)
- Blade Width: 950 mm (37 in)
- Blade Height: 220 mm (8.5 in)
- Blade Max Lifting Height: 295 mm (11.5 in)
- Blade Max Drop Depth: 270 mm (10.5 in)
Engine
- Engine Brand: Rato
- Fuel Type: Gasoline
- Model: R420D
- Rated Power: 10 kW (13.5 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
- Fuel Consumption: 0.5-1.1 L/hr
- Hydraulic Flow Rate: 45 L/min (4.2 GPM)
- Hydraulic Pressure: 18 MPa (2,320 PSI)
- Hydraulic Tank Capacity: 18 L (4.7 gal)
Features

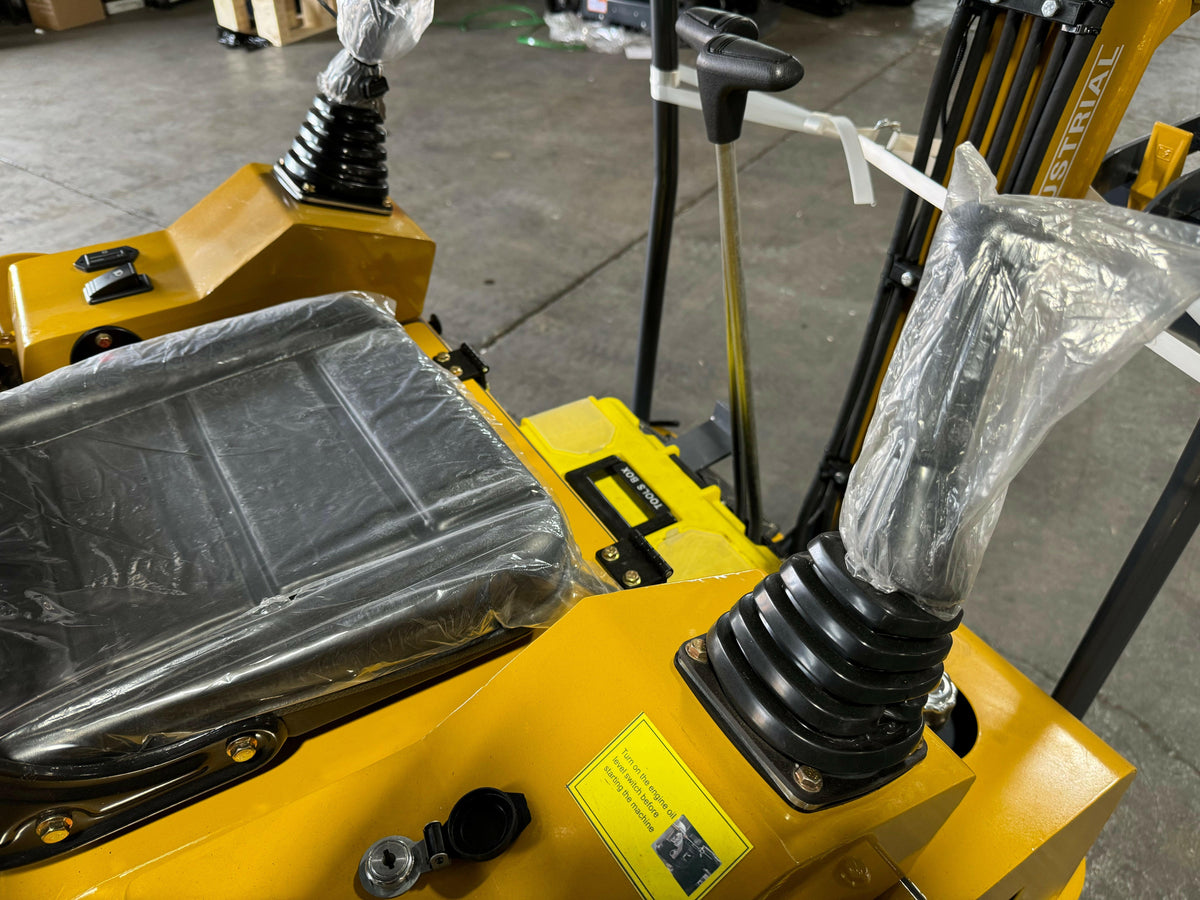

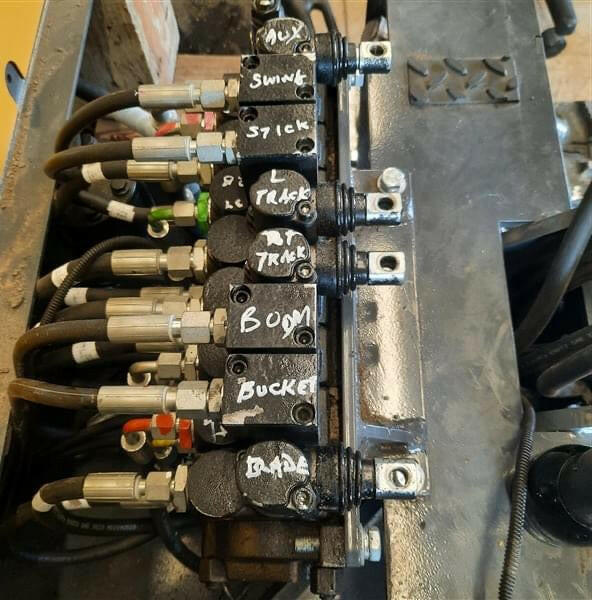

- Pilot Control
- LED Light
