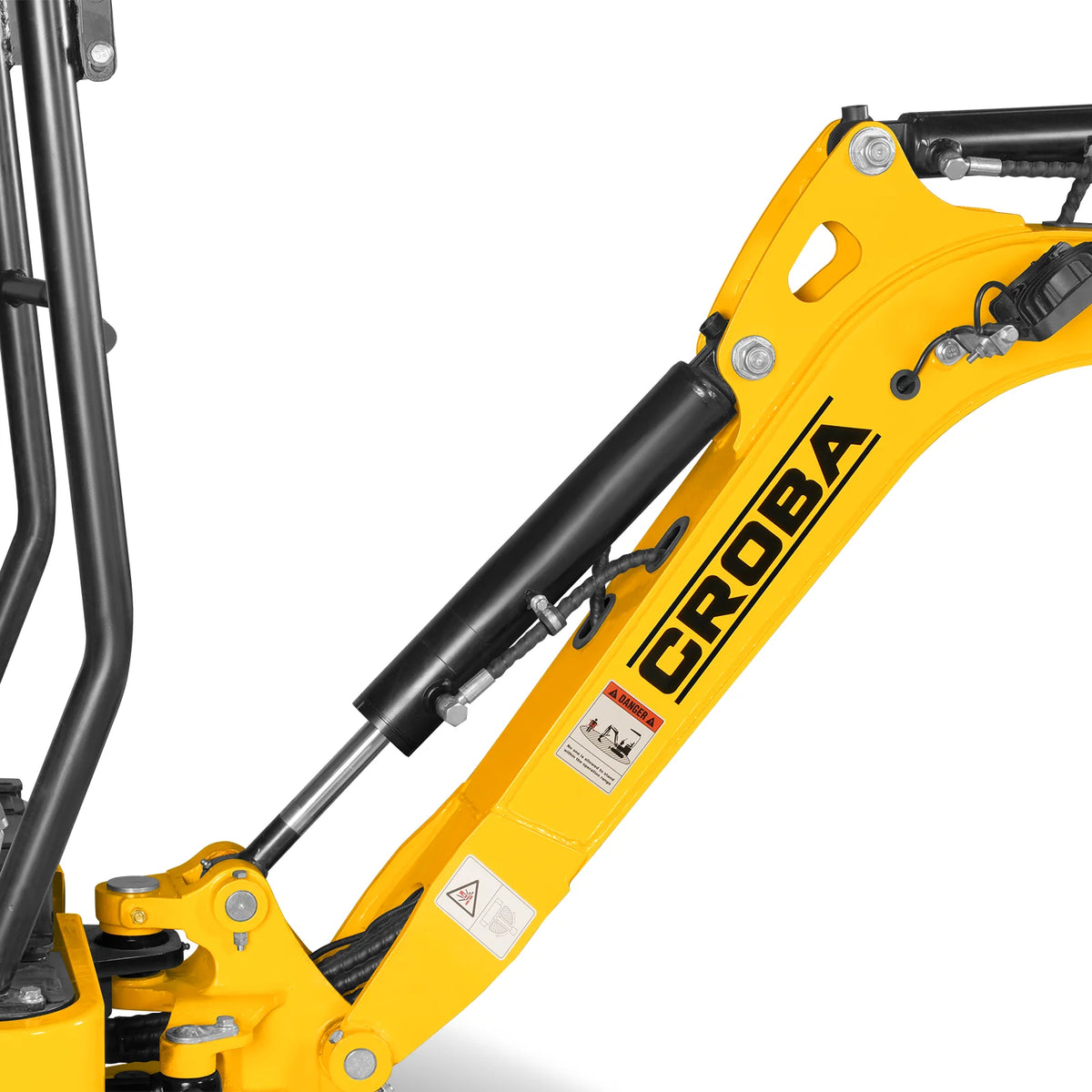

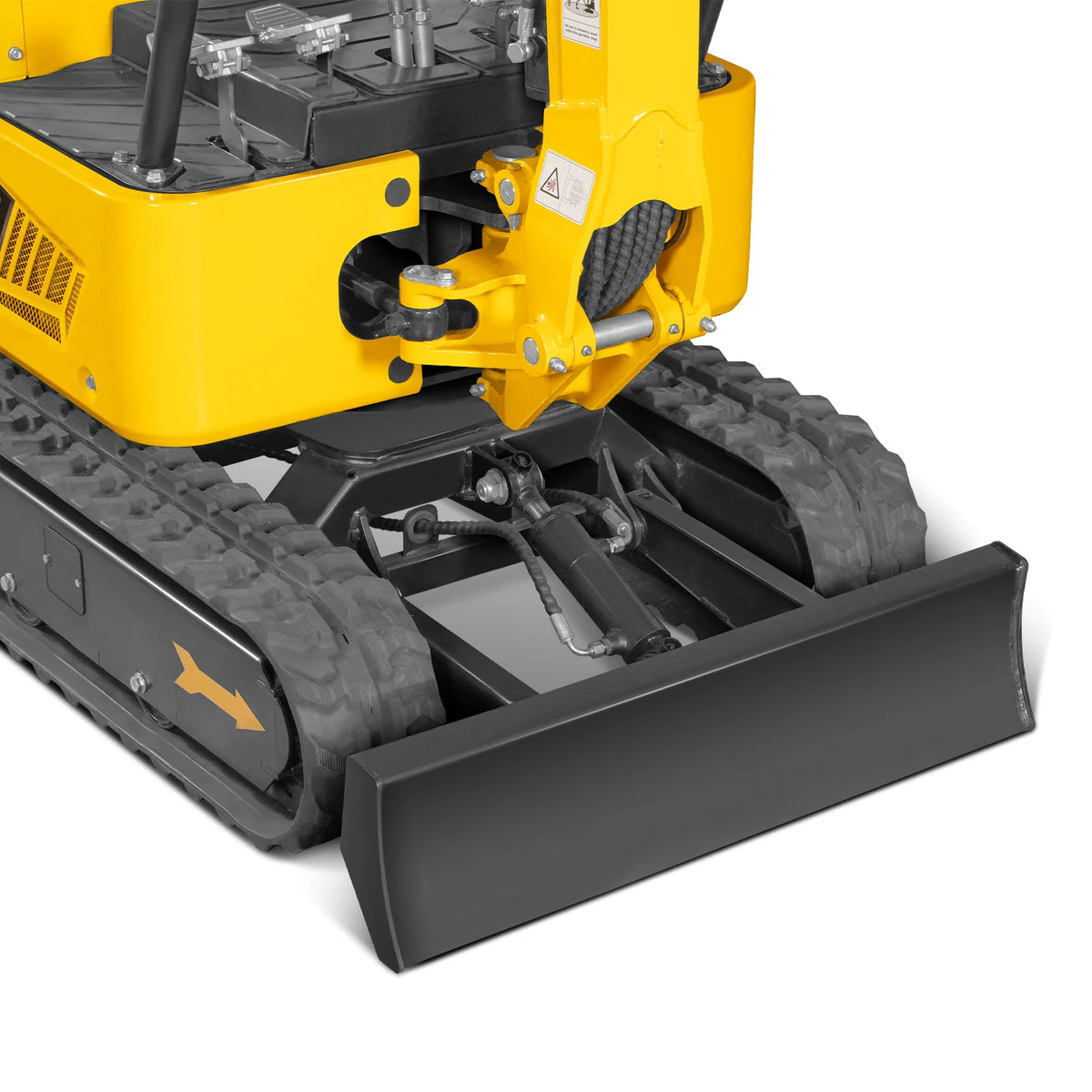

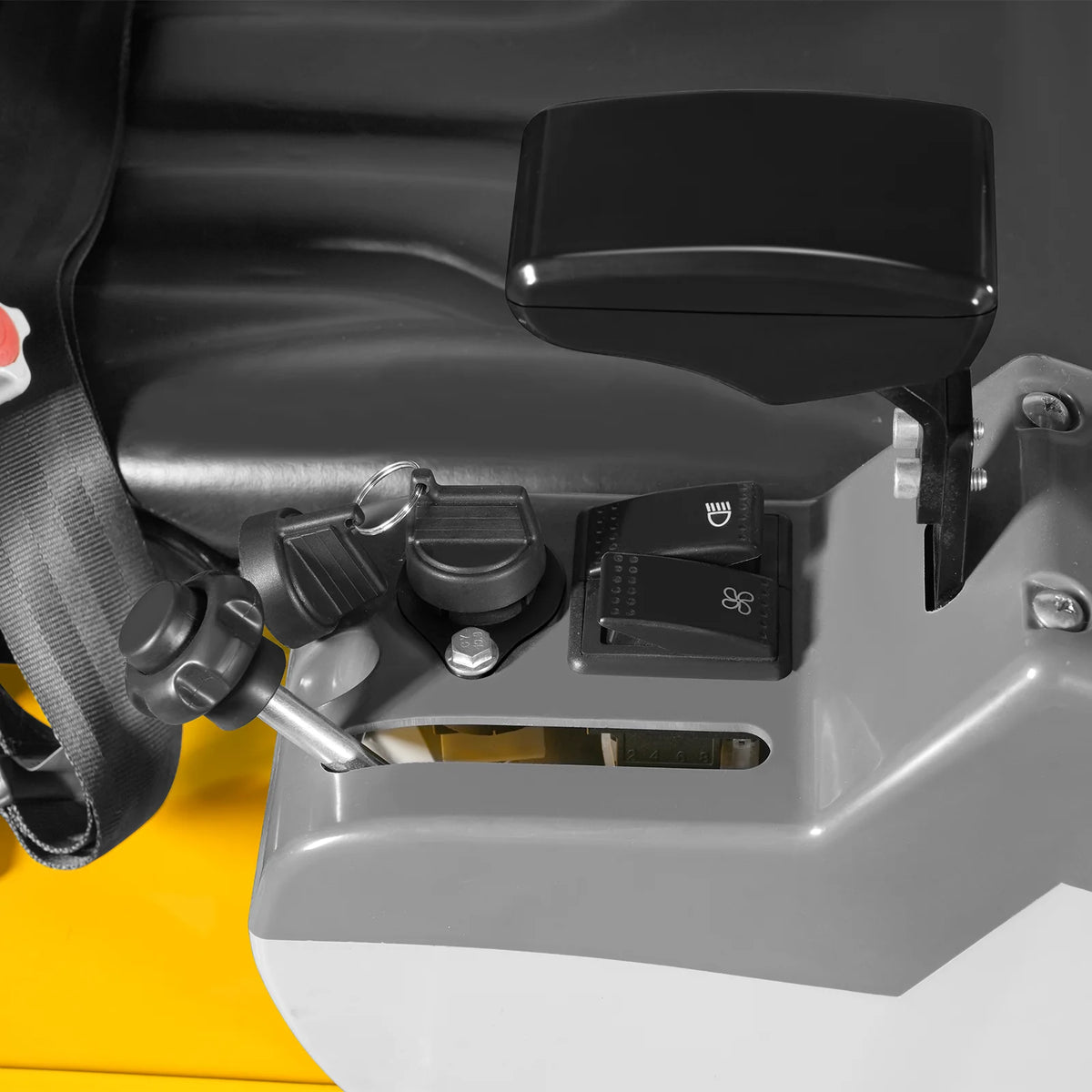

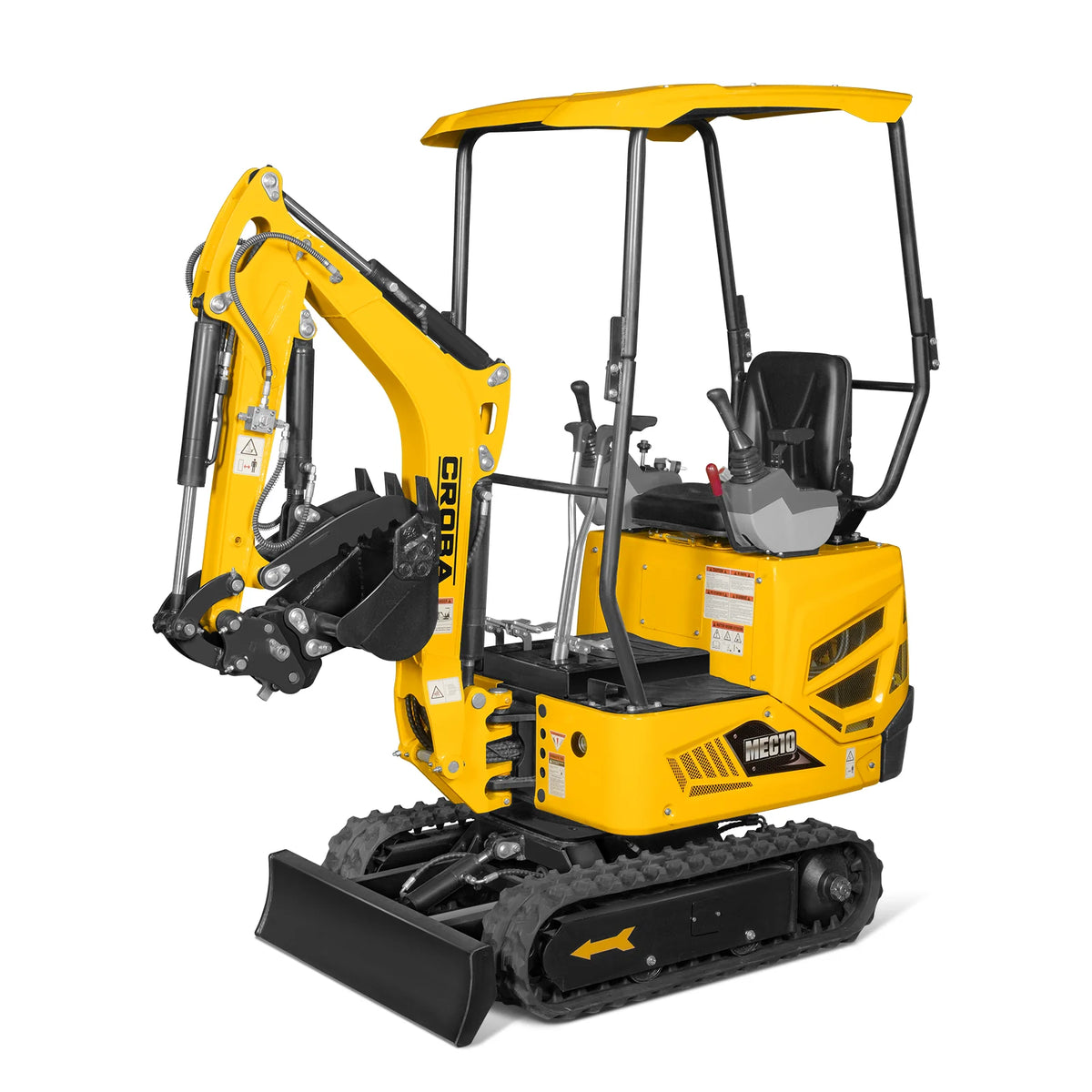

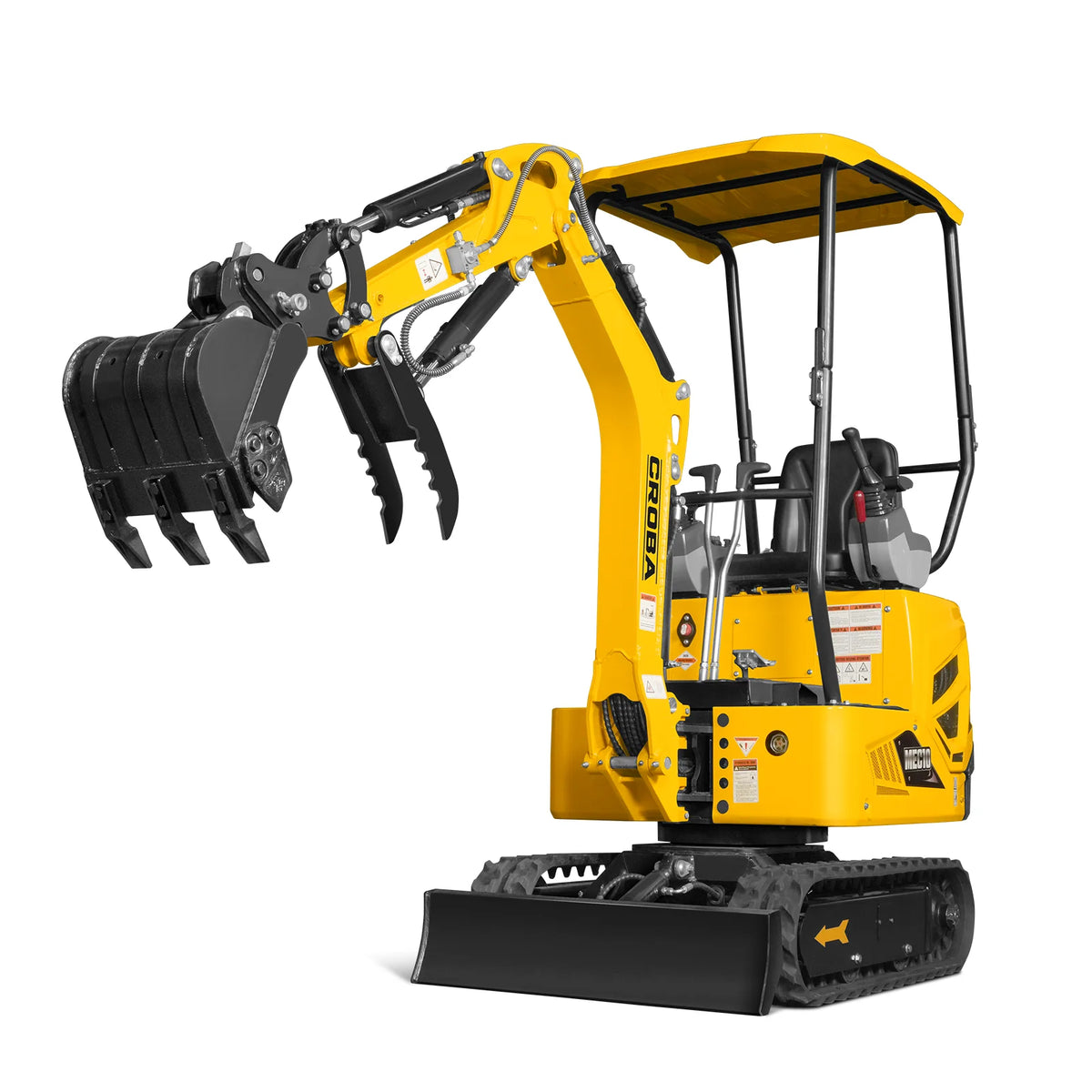

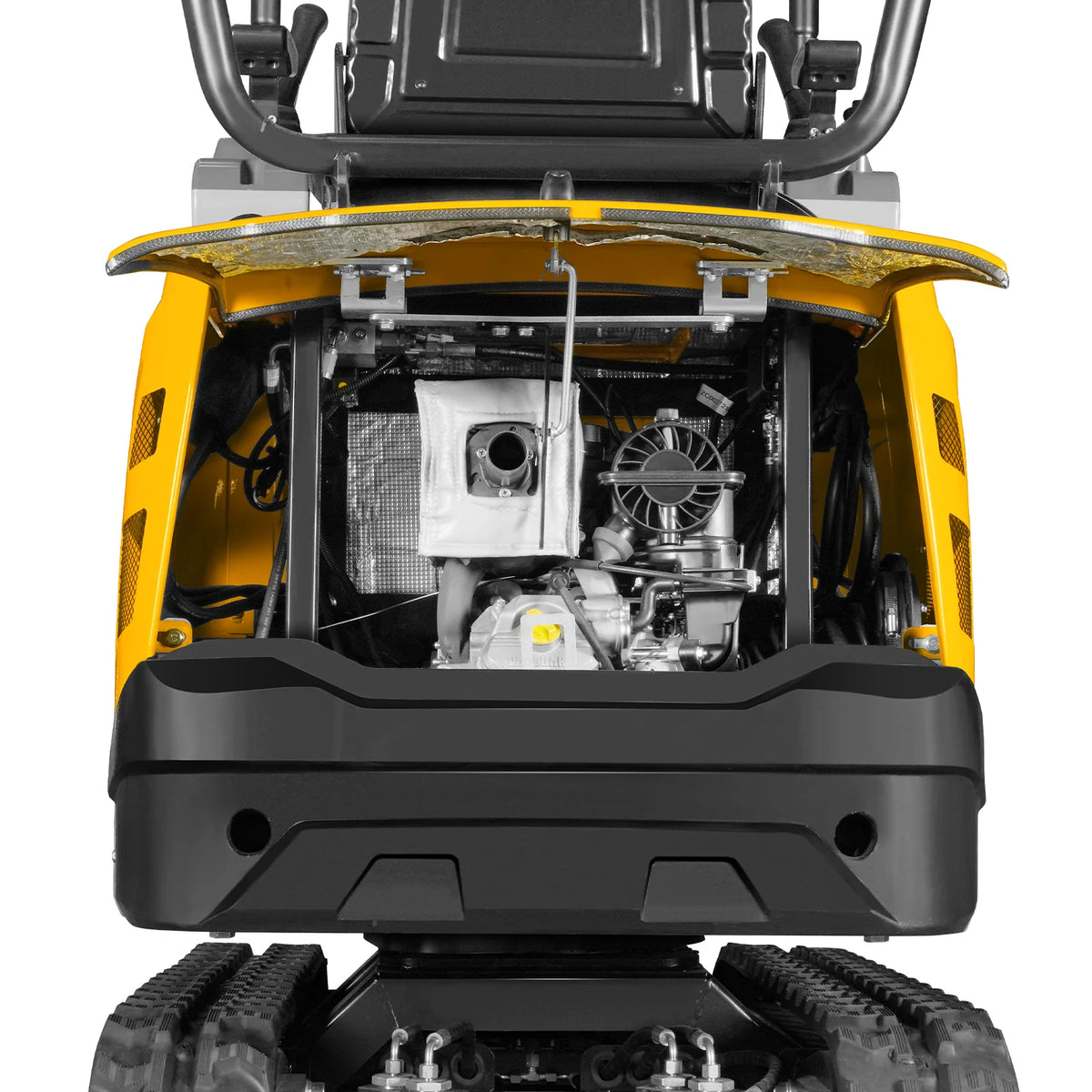

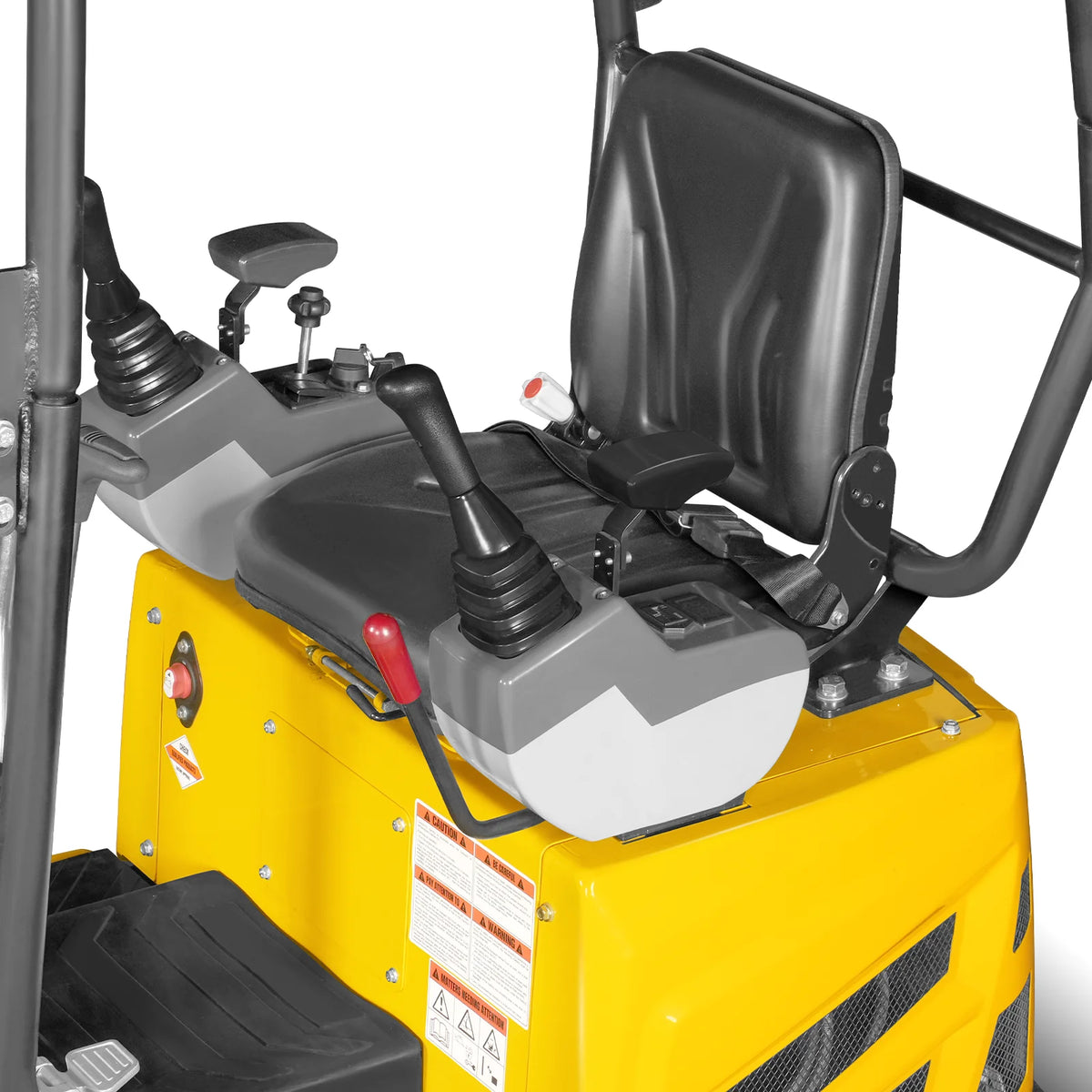

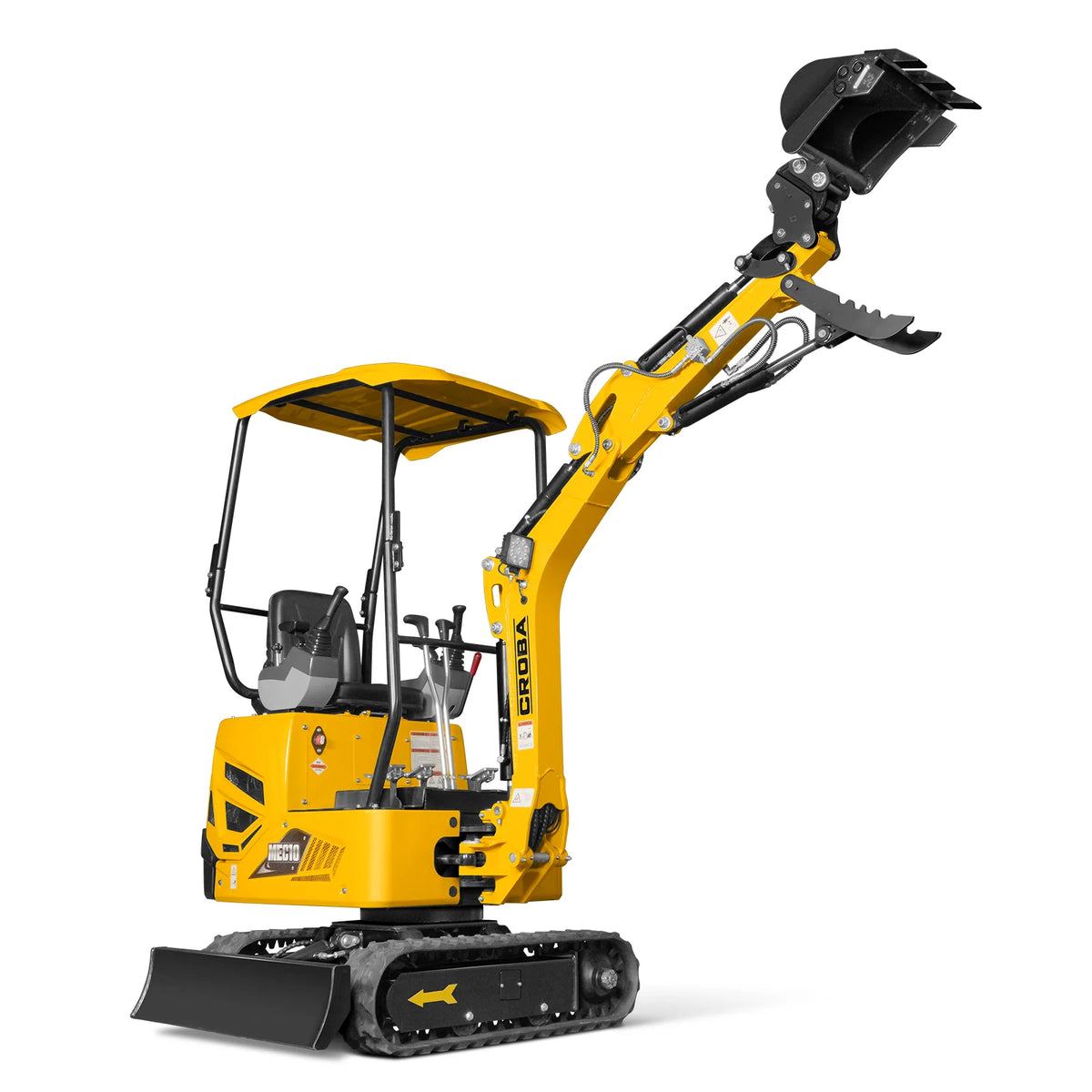

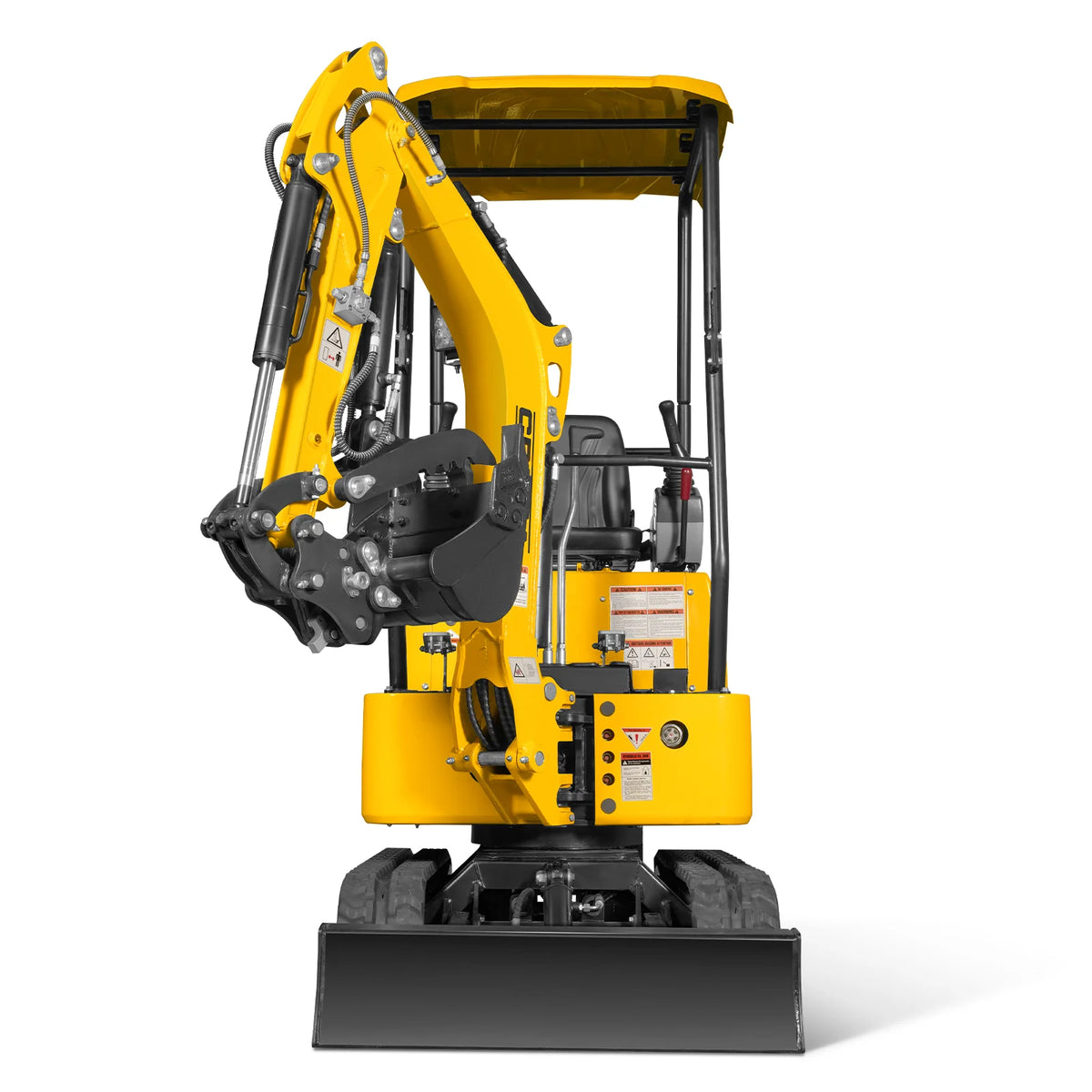

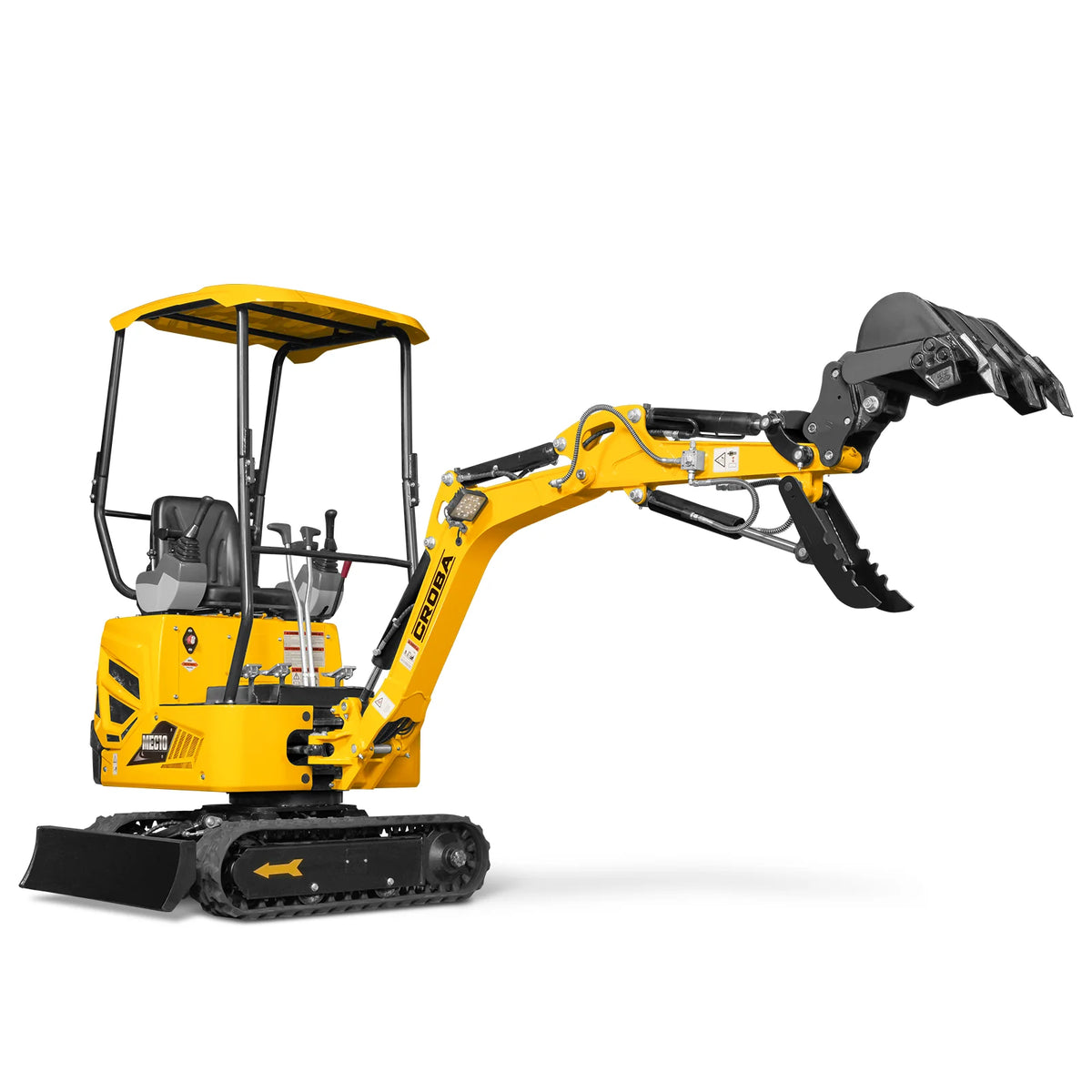

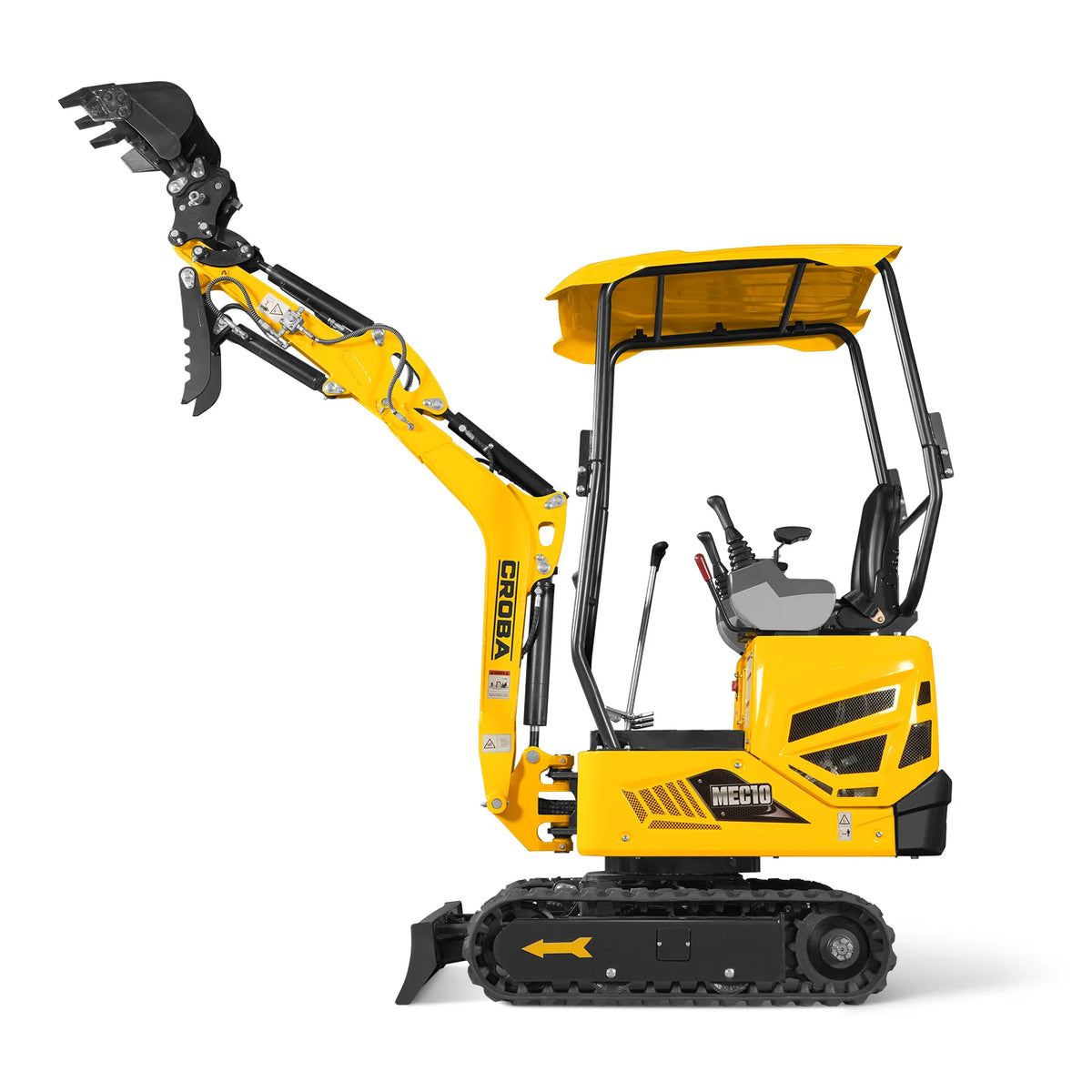

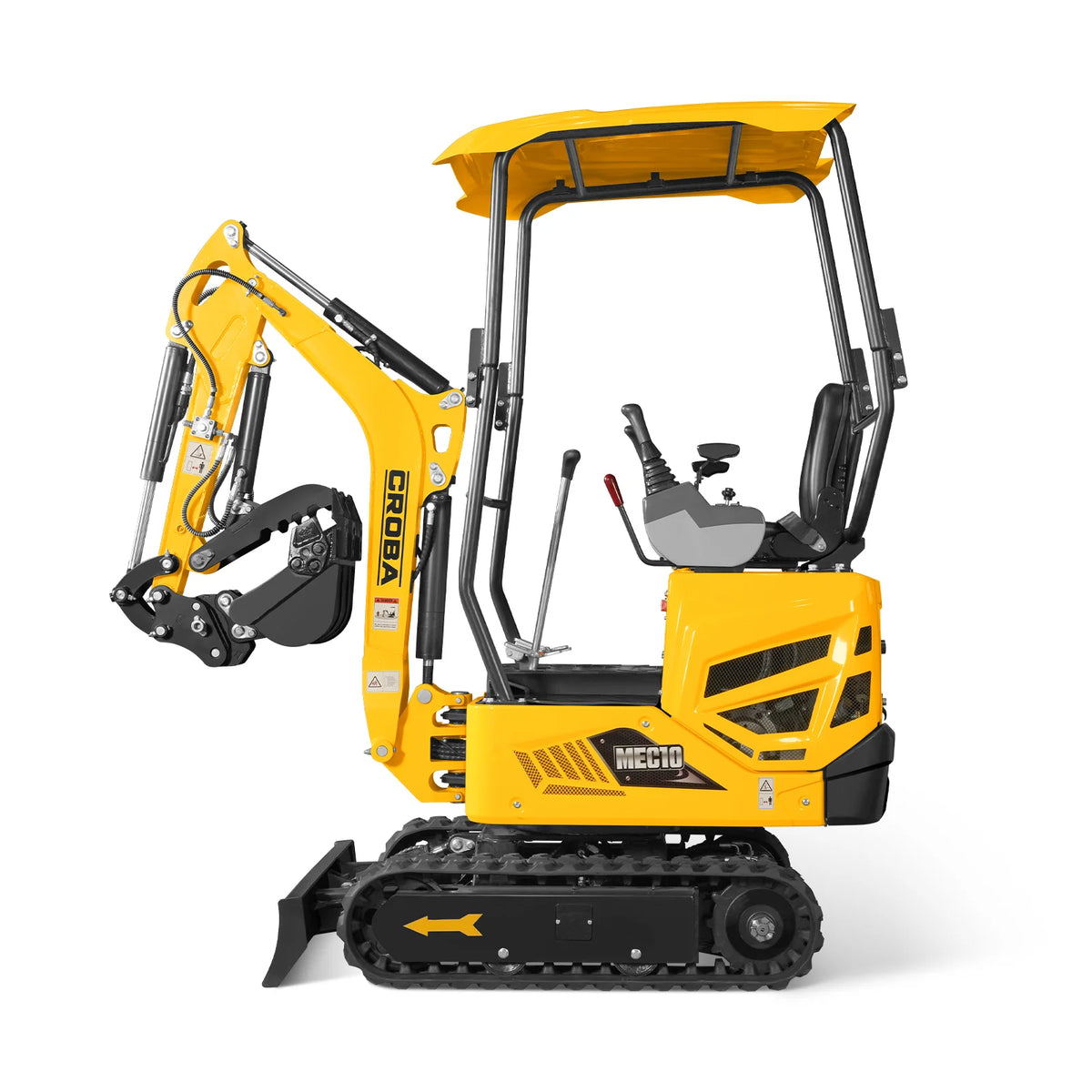

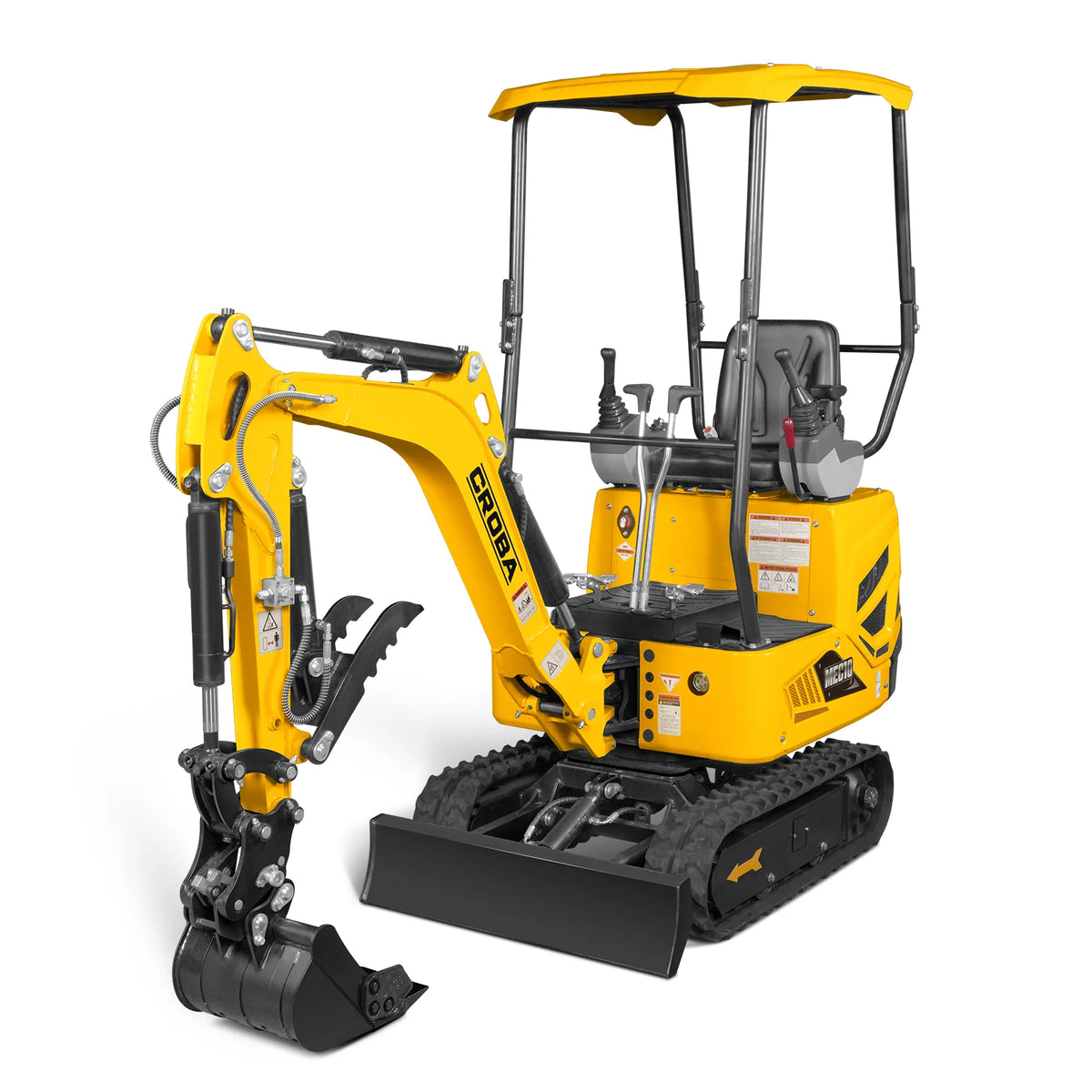

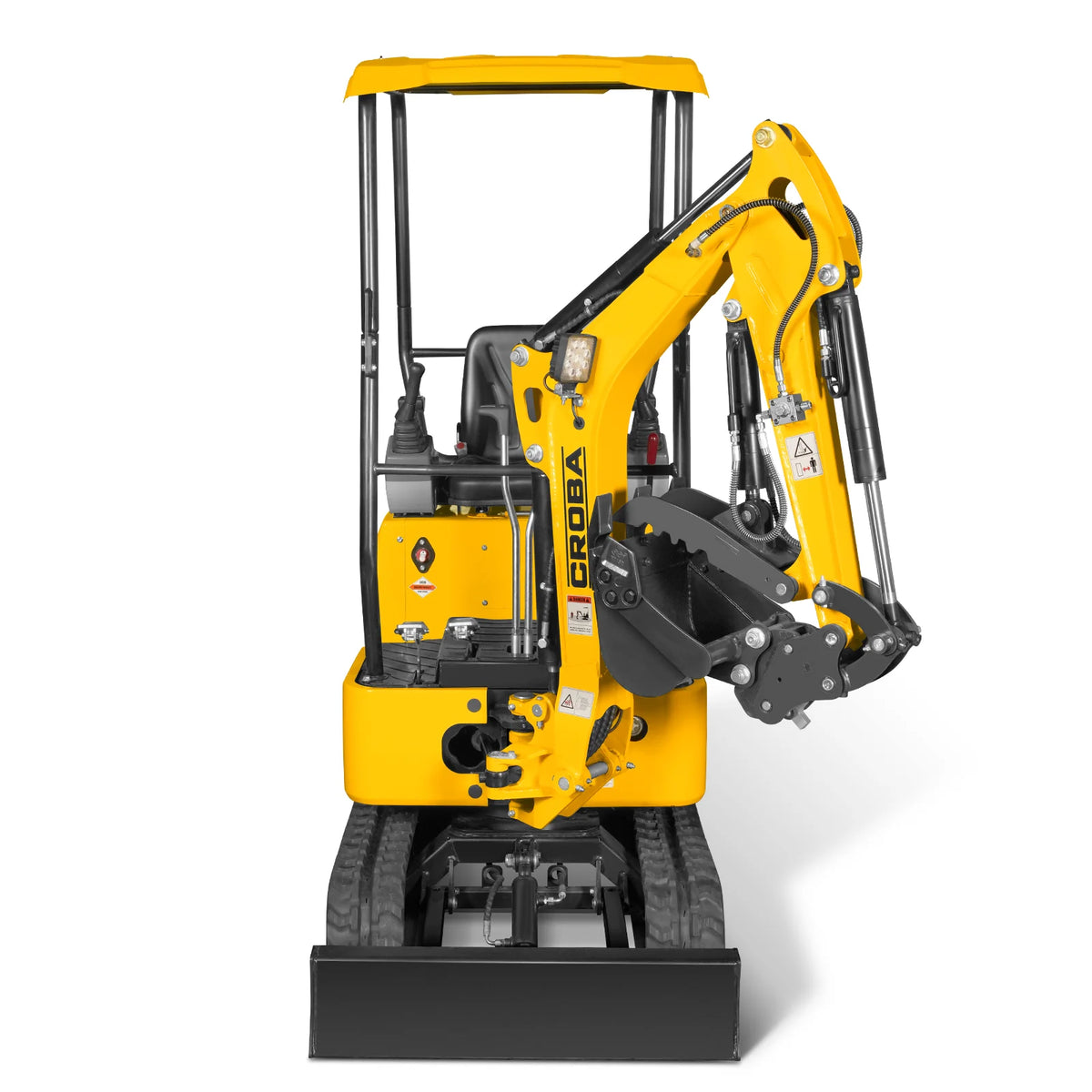

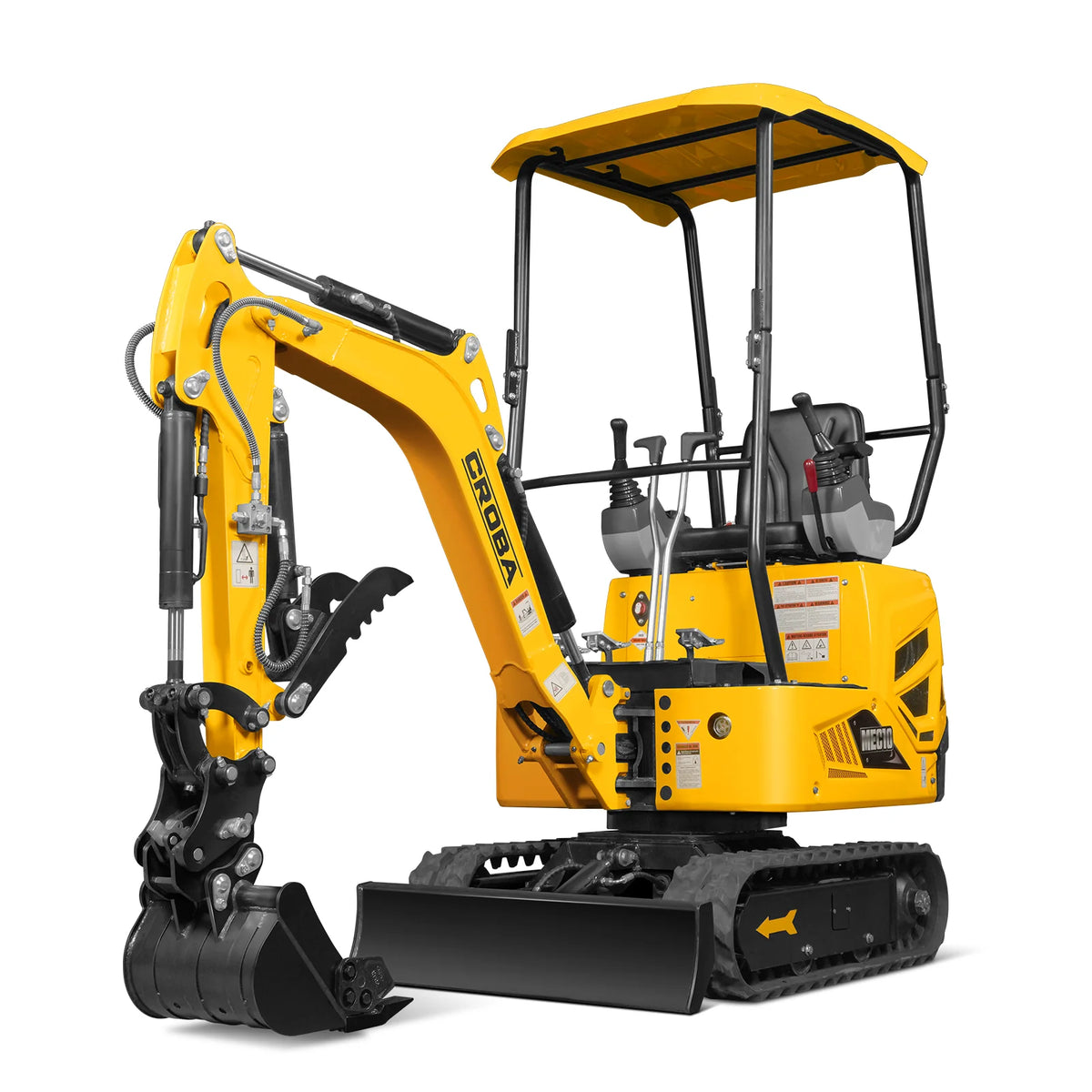

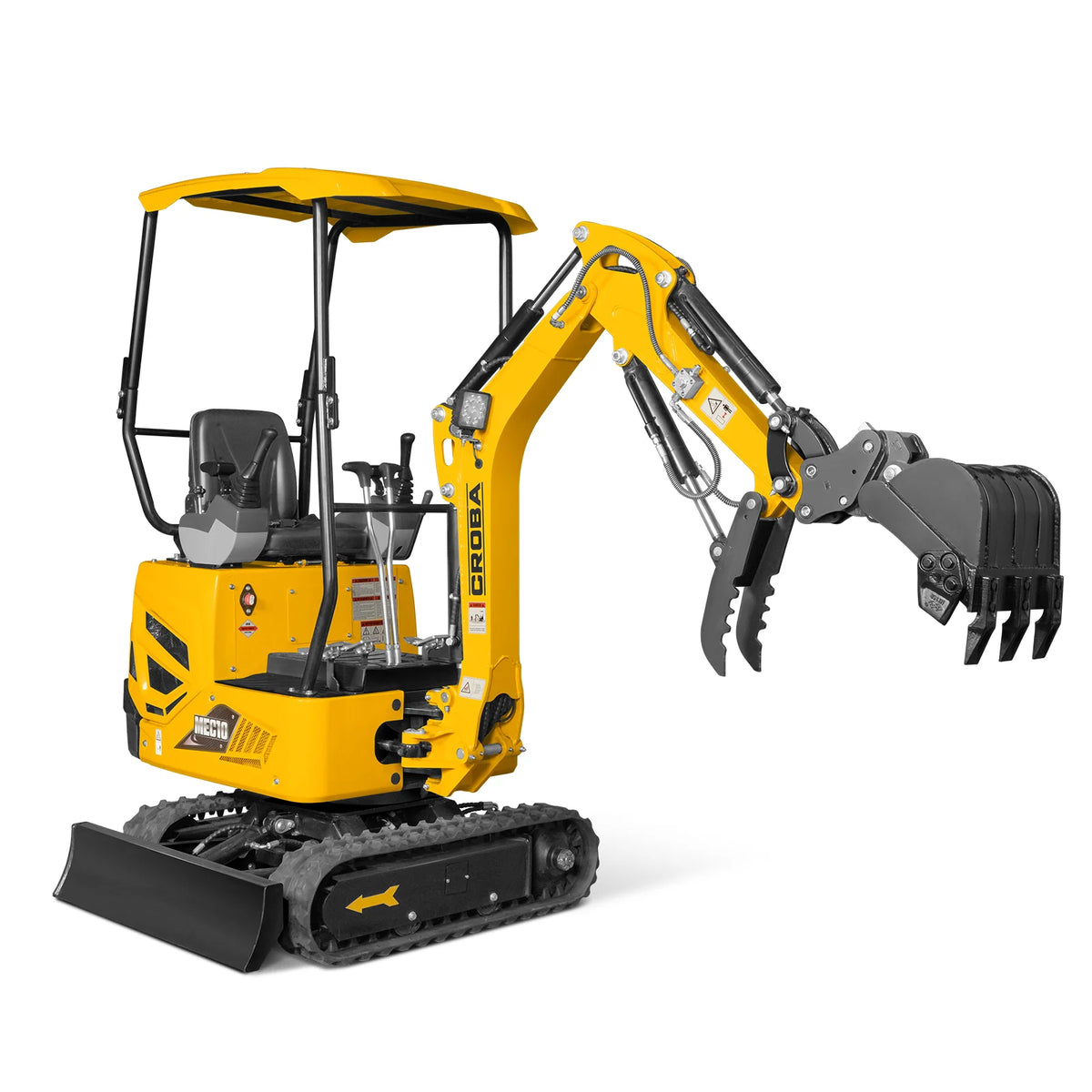

Mini Compact Excavator B&S VANGUARD 408cc 14hp Engine, 65.7" Max. Digging Depth, 1 Ton, 2370 LBS Operating Weight, MEC10
4.9/5 243 reviews
$6,789.30
Compact capability for serious work Built for construction, landscaping, property maintenance, and demanding jobsite applications, the MEC10 pairs a compact footprint with the verified specifications listed below. Review the dimensions, performance data, and included features to select the...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Compact capability for serious work
Built for construction, landscaping, property maintenance, and demanding jobsite applications, the MEC10 pairs a compact footprint with the verified specifications listed below. Review the dimensions, performance data, and included features to select the right machine for your operation.
| ENGINE | |||
| Model | Vanguard 25V000 | Displacement | 408cc |
| No.Of Cylinders | 1 | Engine Output | 14hp |
| Stroke | 2.638in | Warranty for Engine | 3-Year |
| Bore | 3.465in | Fuel Tank | 1.52 gal |
| Rated speed | 3600rpm | Engine Oil | 0.7gal |
| TRAVEL SYSTEM | |||
| Max. Travel Speed | 0.75 mile/h | Ground Pressure | 5.1psi |
| Maximum Traction Force | 3035 lbf | Gradeability - Maximum | Maximum 30 degrees |
| Ground Clearance | 15.9in | Operating Weight | 2370lbs |
| HYDRAULIC SYSTEM | |||
| Hydraulic Oil Tank | 3.96gal | Max.Discharge Flow | 4.65 gpm |
| SWING SYSTEM | |||
| Swing Speed | 8rpm | Tail Swing Radius | 32.6in |
| DIGGING FORCE | |||
| Bucket Digging Force | 1619 lbf | Arm Digging Force | 1191 lbf |
| Bucket Capacity | 0.7 ft³ | Bucket Width | 15 in |
| SCOPE OF WORK | |||
| Max.Digging Height | 109 in | Min Turning Radius Of Working Device | 48.1in |
| Max.Dumping Height | 80 in | Max. Lifting Height Dozer Blade | 5.9in |
| Max.Digging Depth | 65.7in | Max. Depth Dozer Blade | 7.4in |
| Max.Vertical Digging Depth | 62.6in | Boom Swing - Left | 53° |
| Max Digging Radius | 119in | Boom Swing - Right | 40° |
| Max.digging Radius At Ground Level | 118.7in | ||
| DIMENSIONS | |||
| Transportation Length | 82in/115in | Crawler Wheel Base | 36in |
| Overall Width | 37in | Track Belt/Shoe Width | 7in |
| Overall Height（To Top Of Cab） | 88.5in | Track Length | 48.5in |
| Counter Weight Ground Clearance | 16in | Track Width | 37in |
| SERVICE | |||
| Package Method | Wood Case | Warranty for Machine | 1 Year |
| Packing Size | 91x40x98 in | Weight (N.W./G.W.) | 2180/2440 lbs |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
