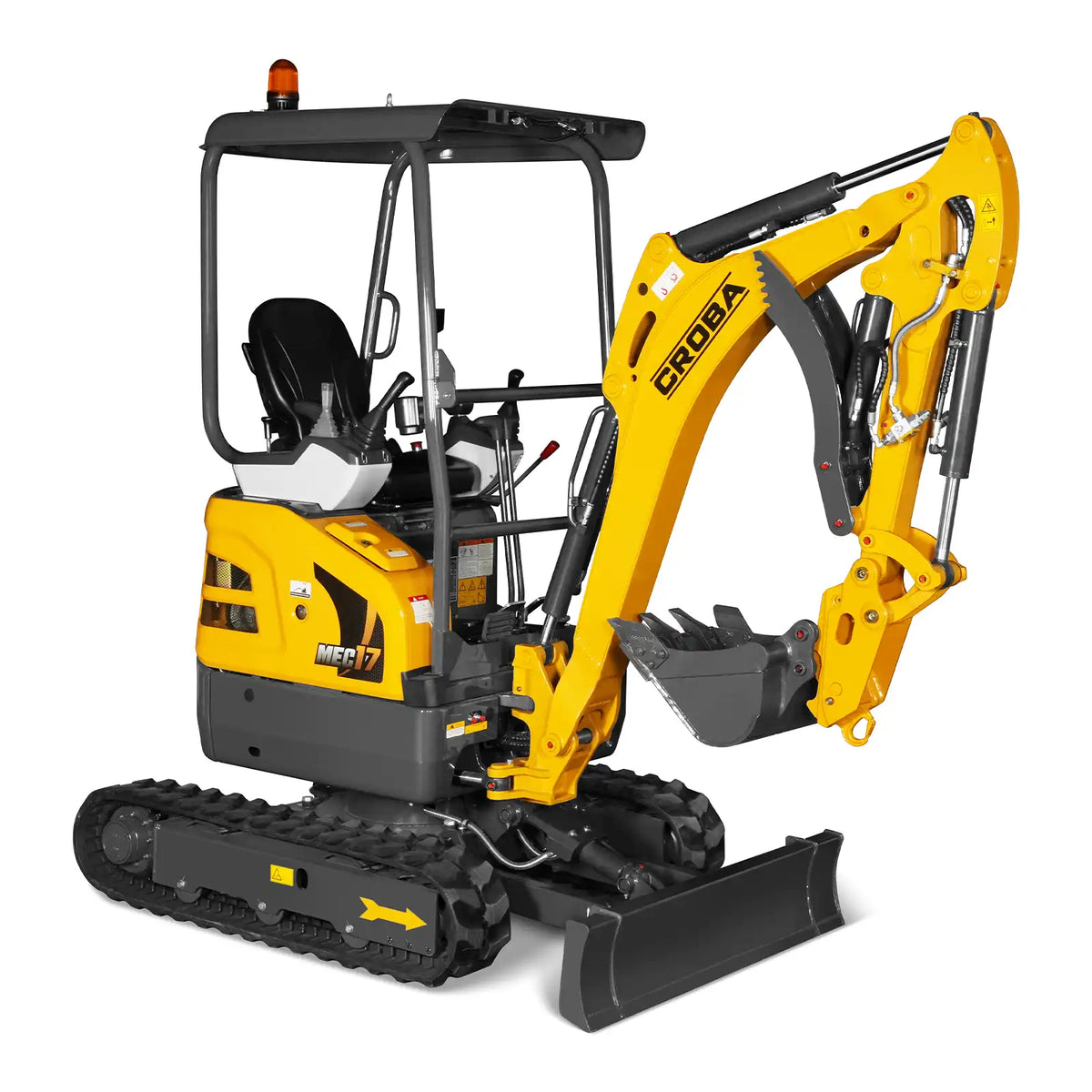

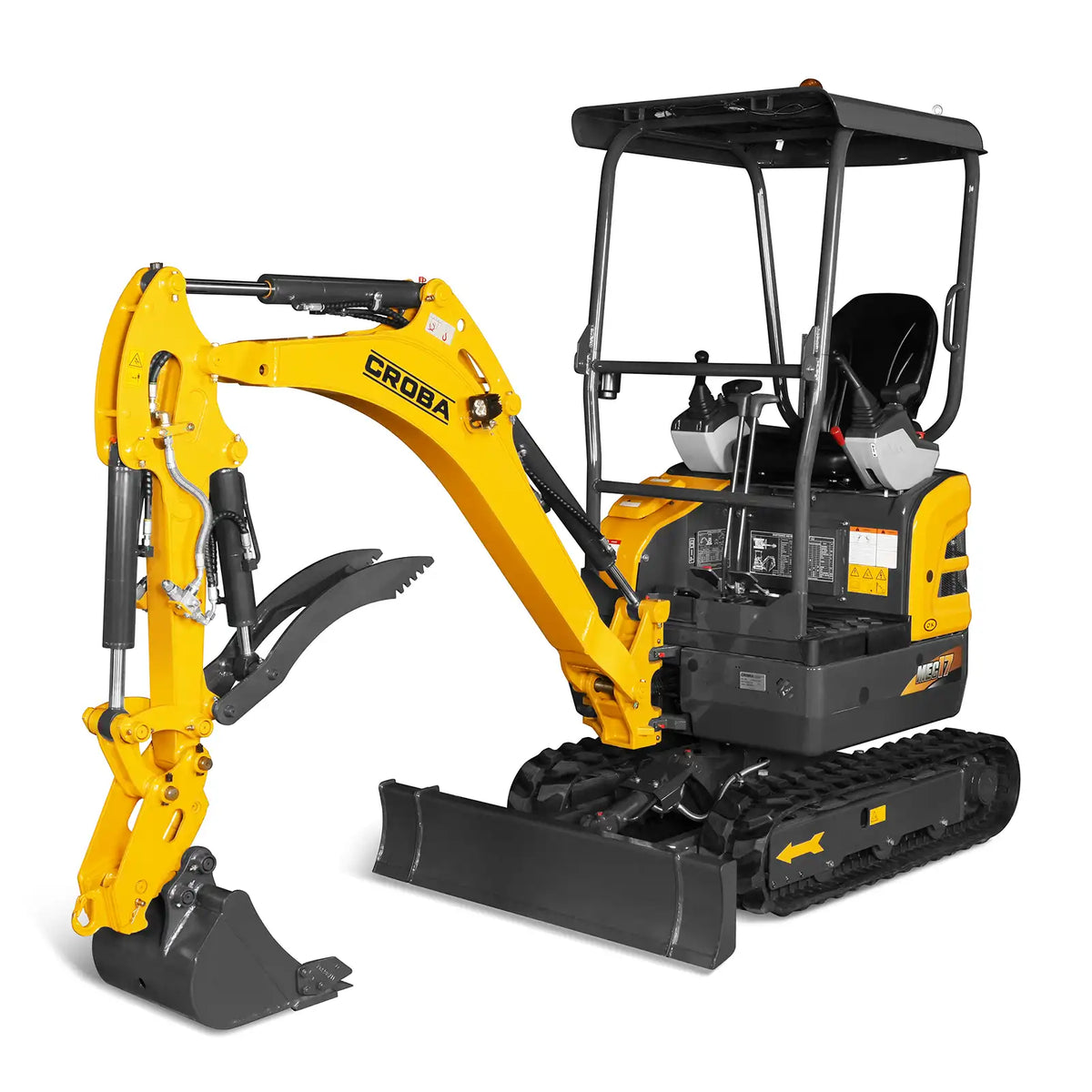

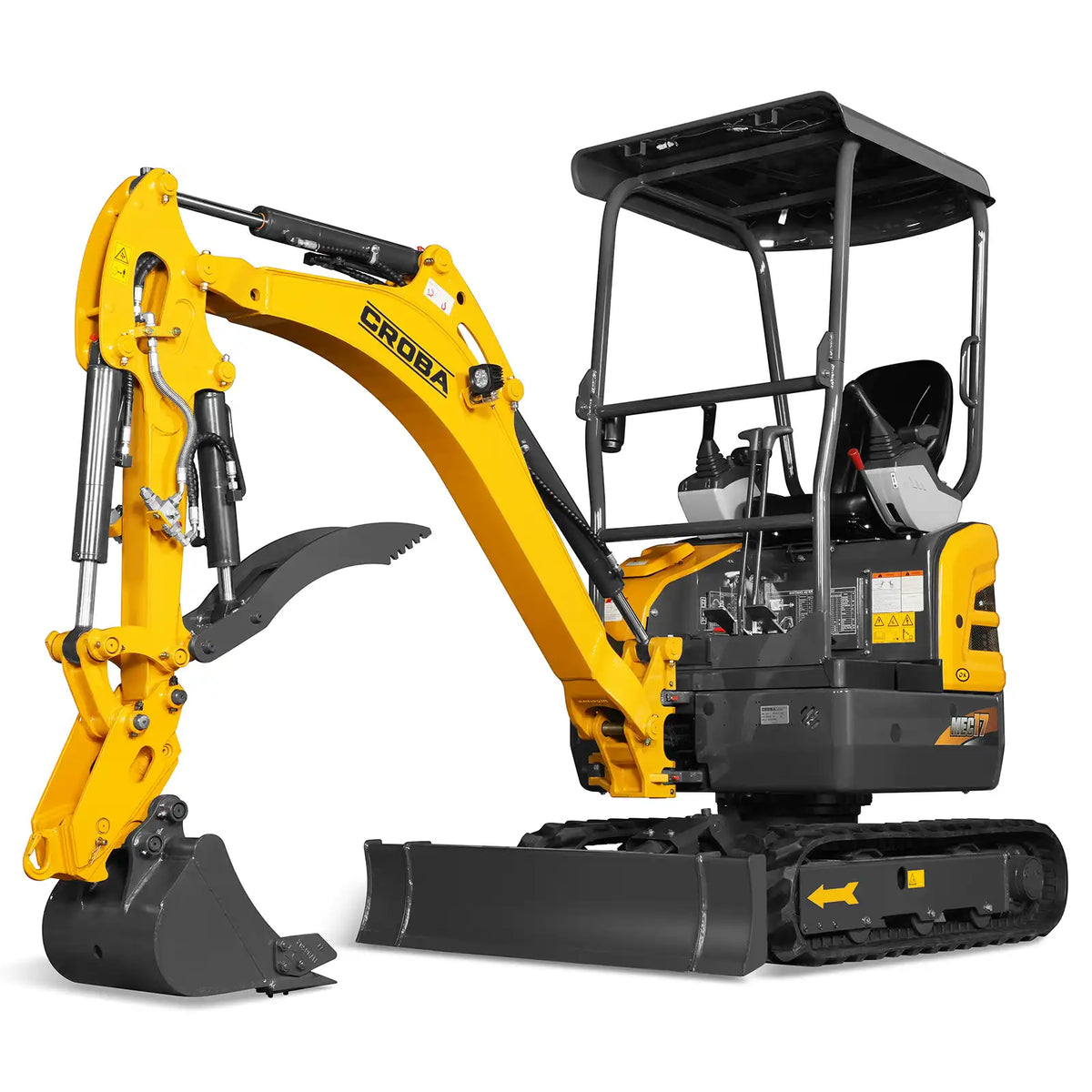

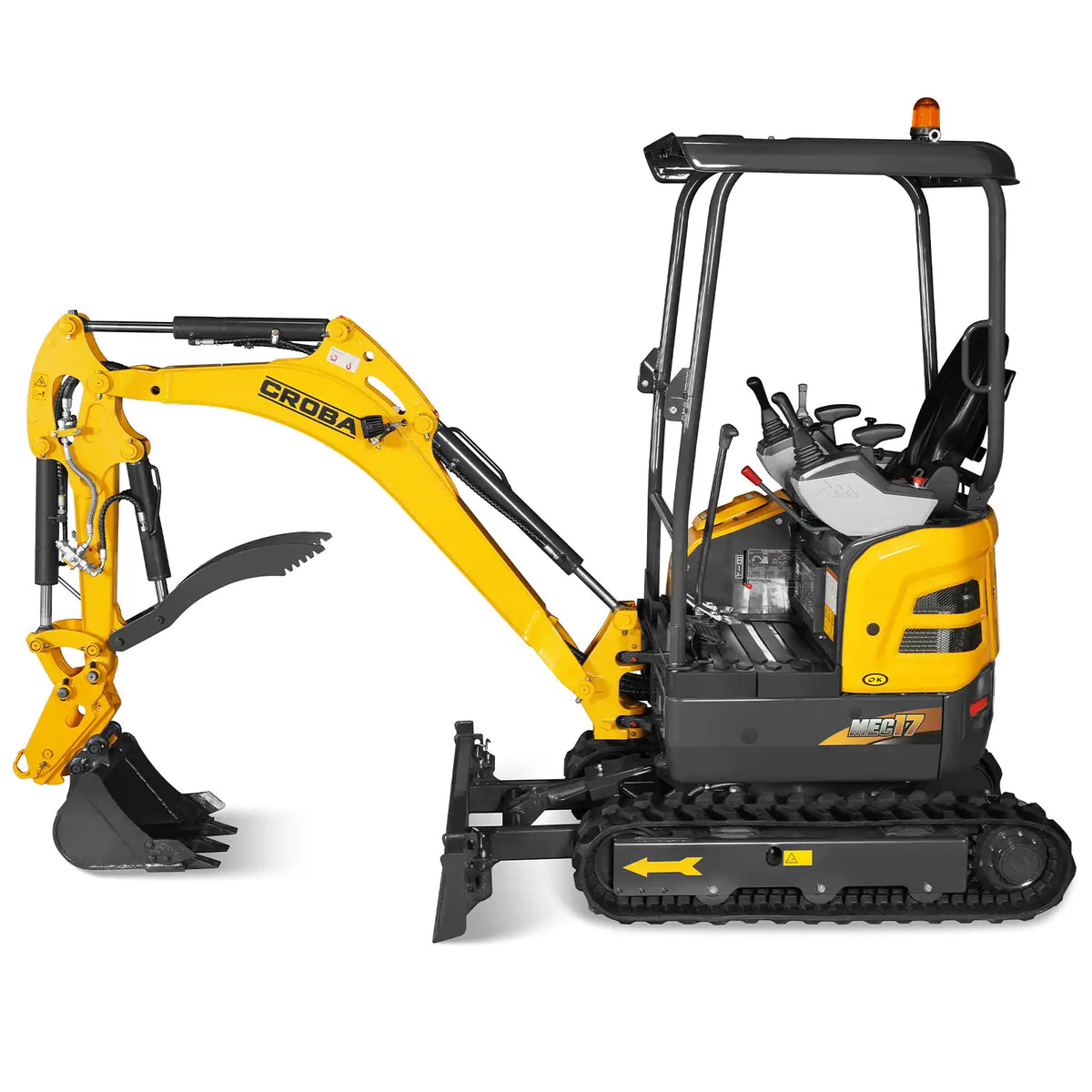

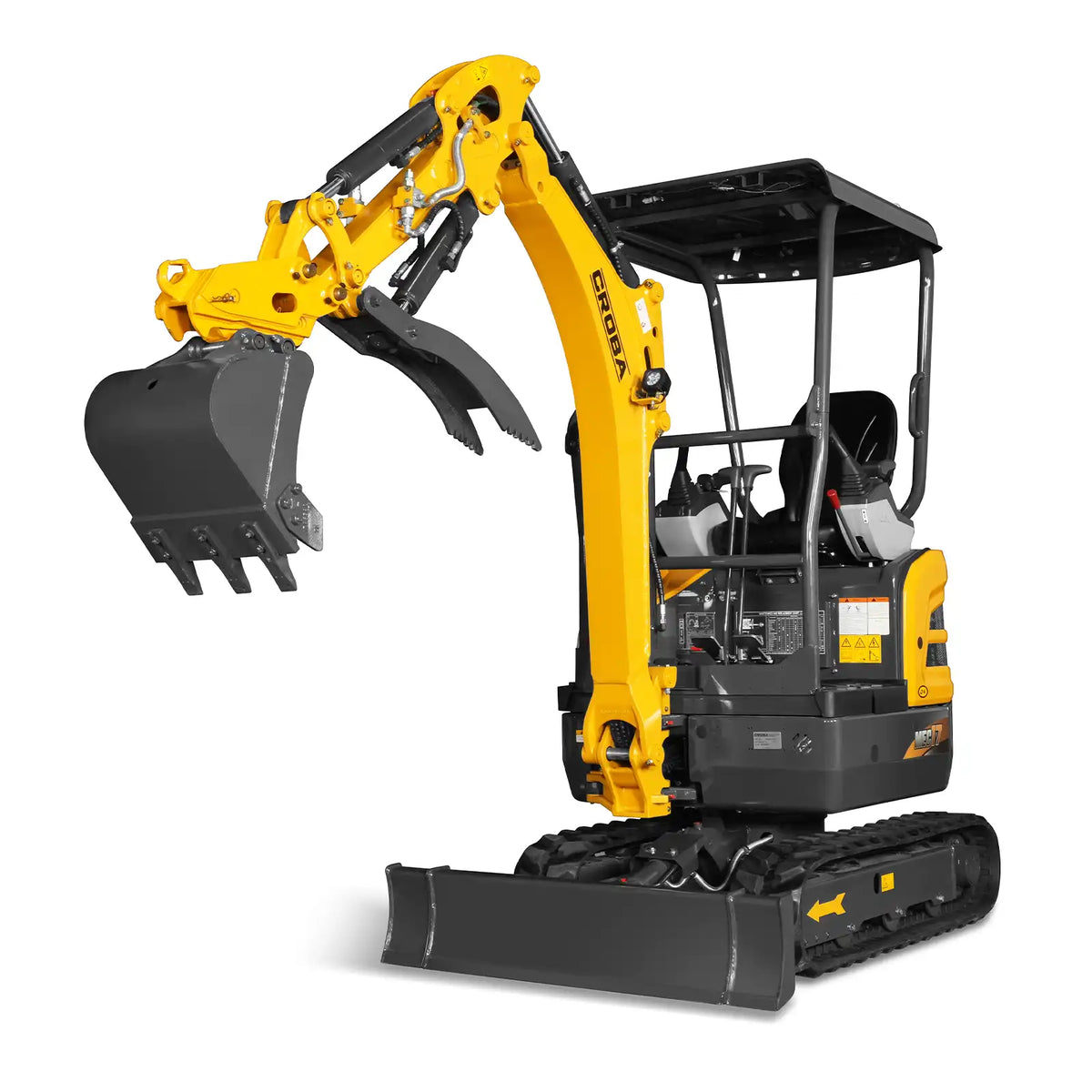

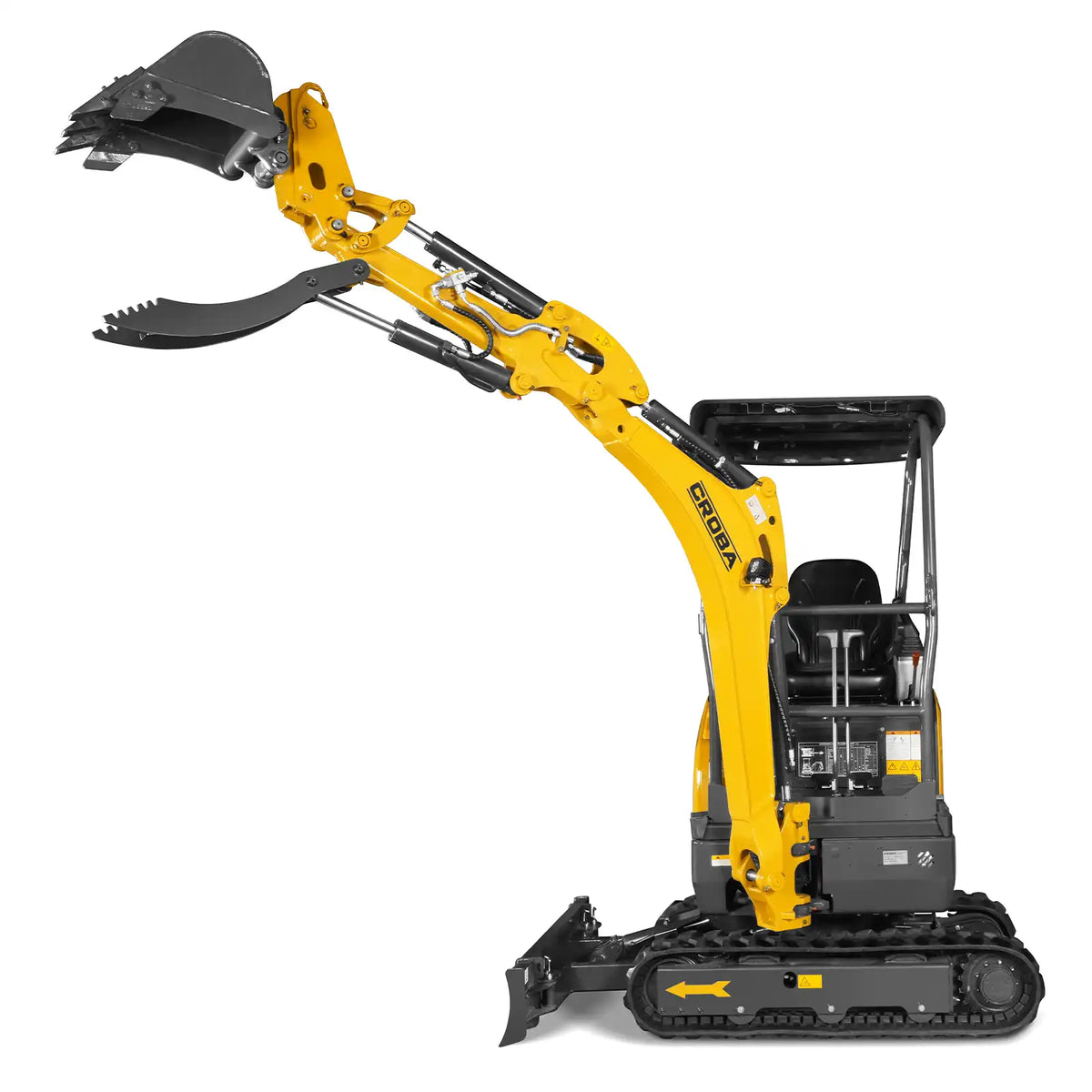

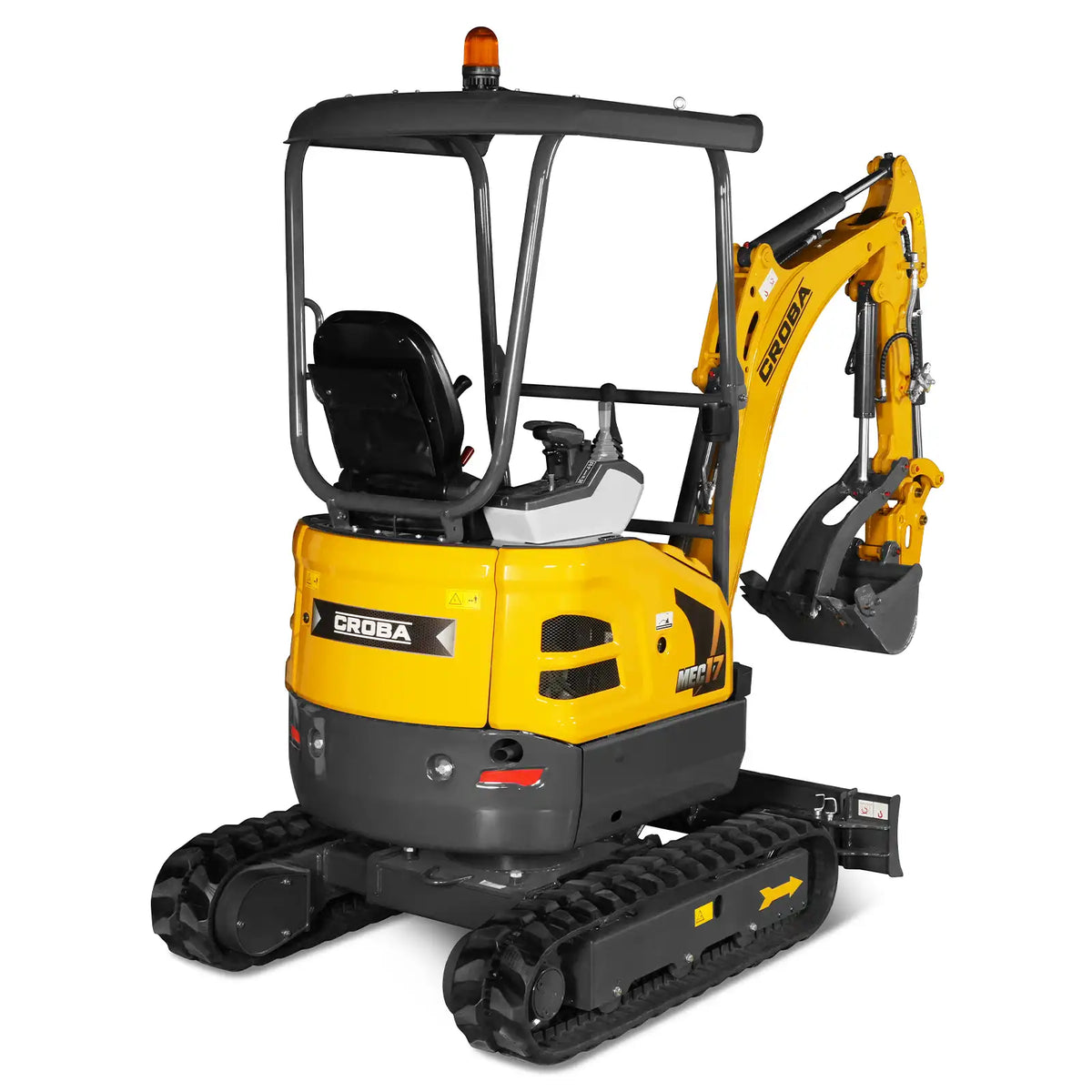

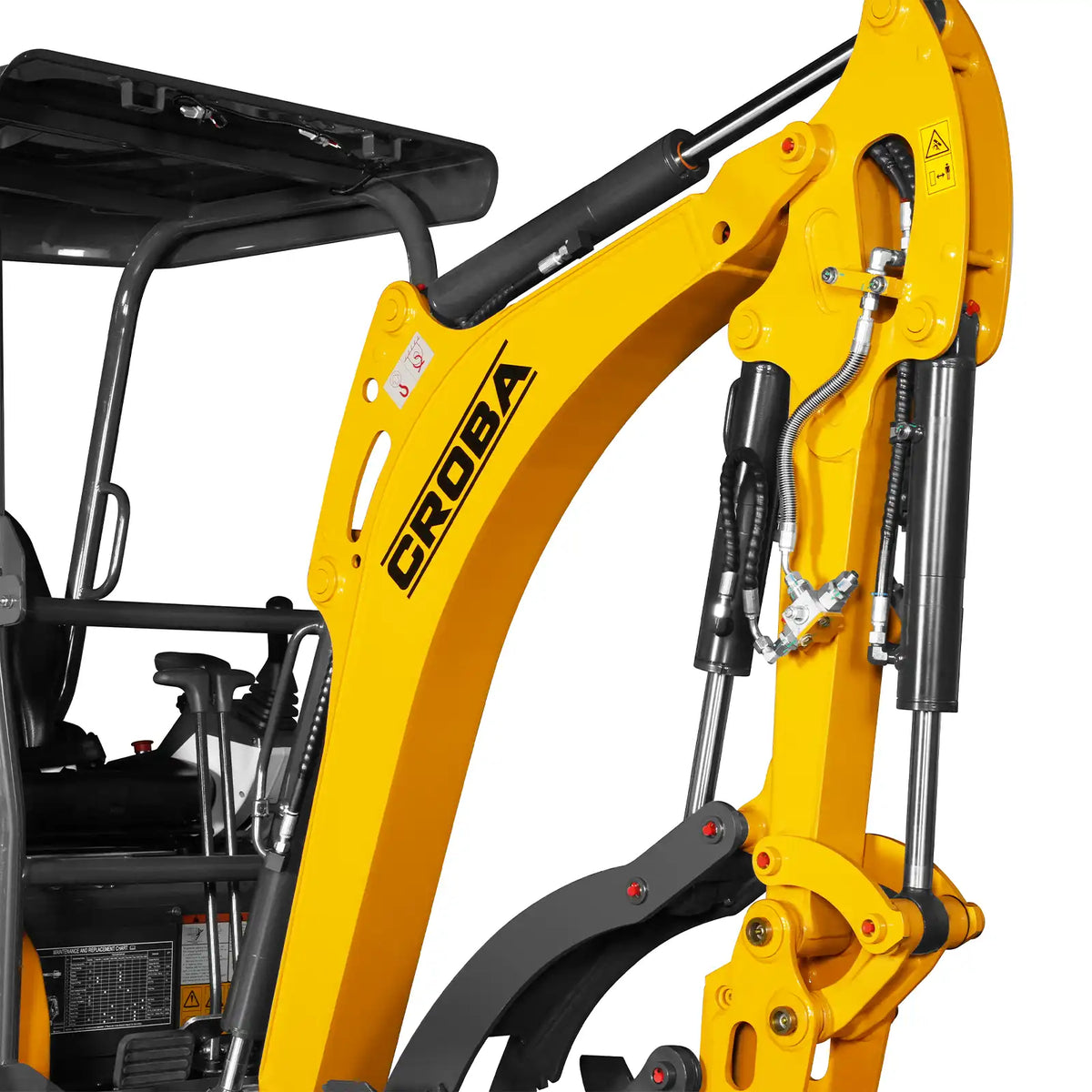

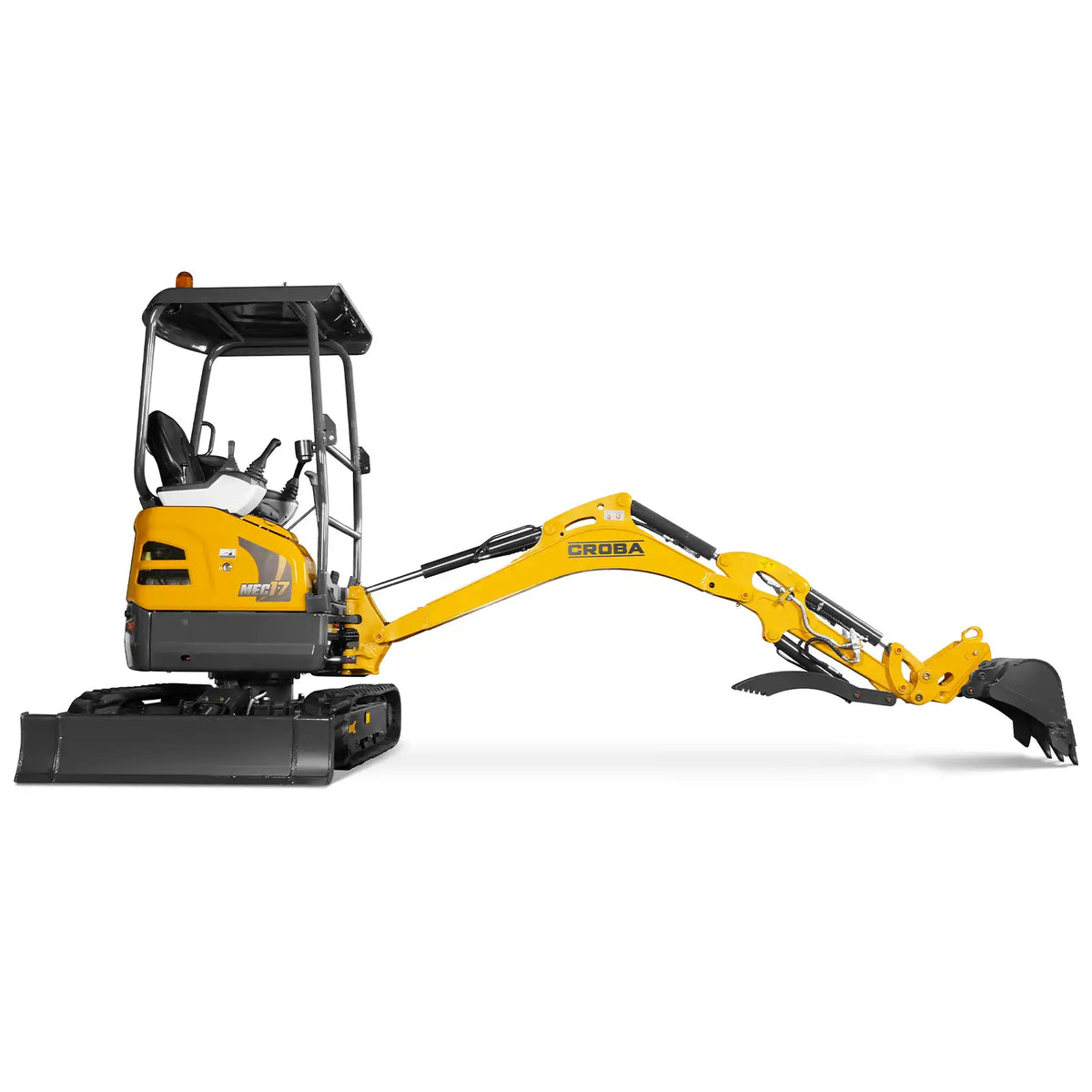

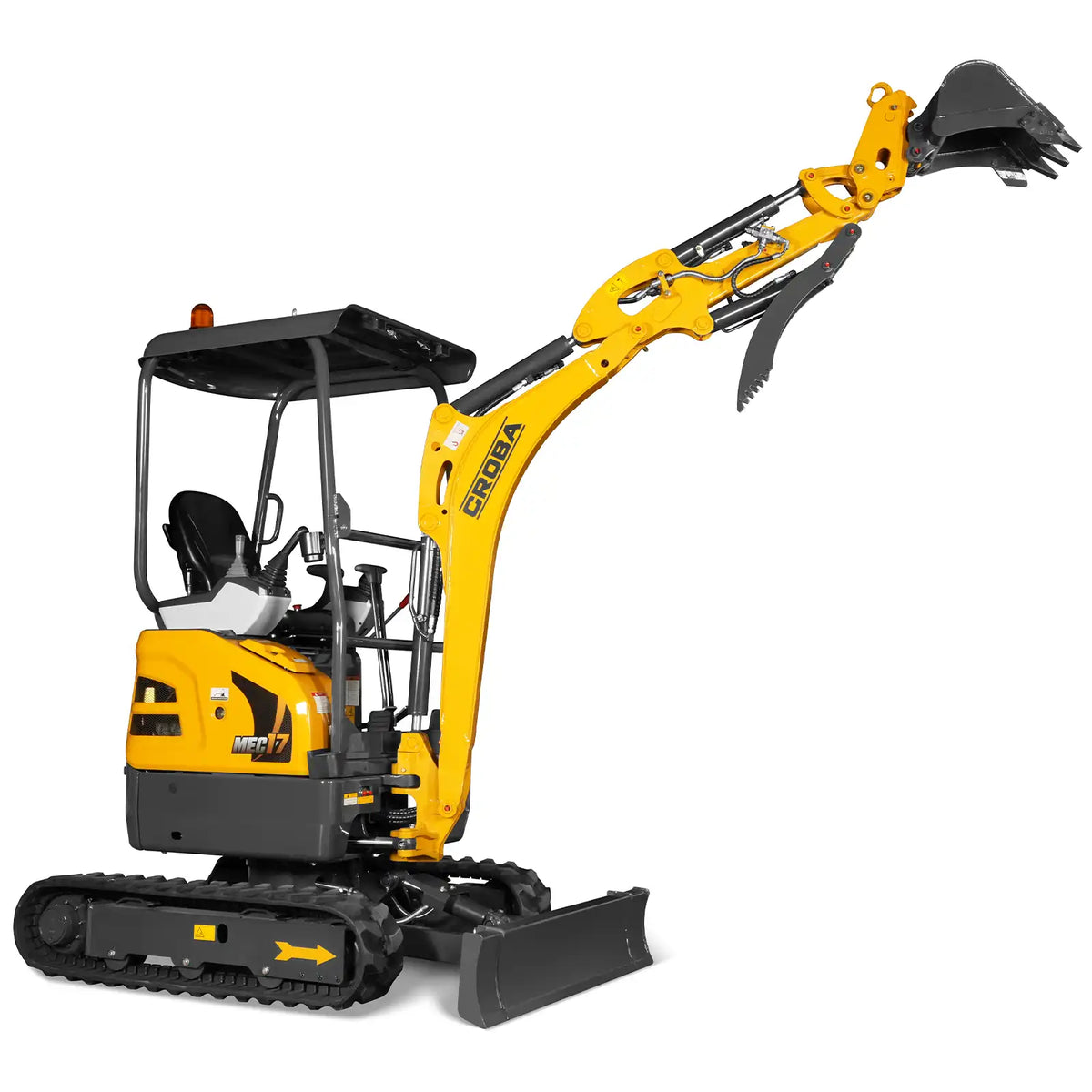

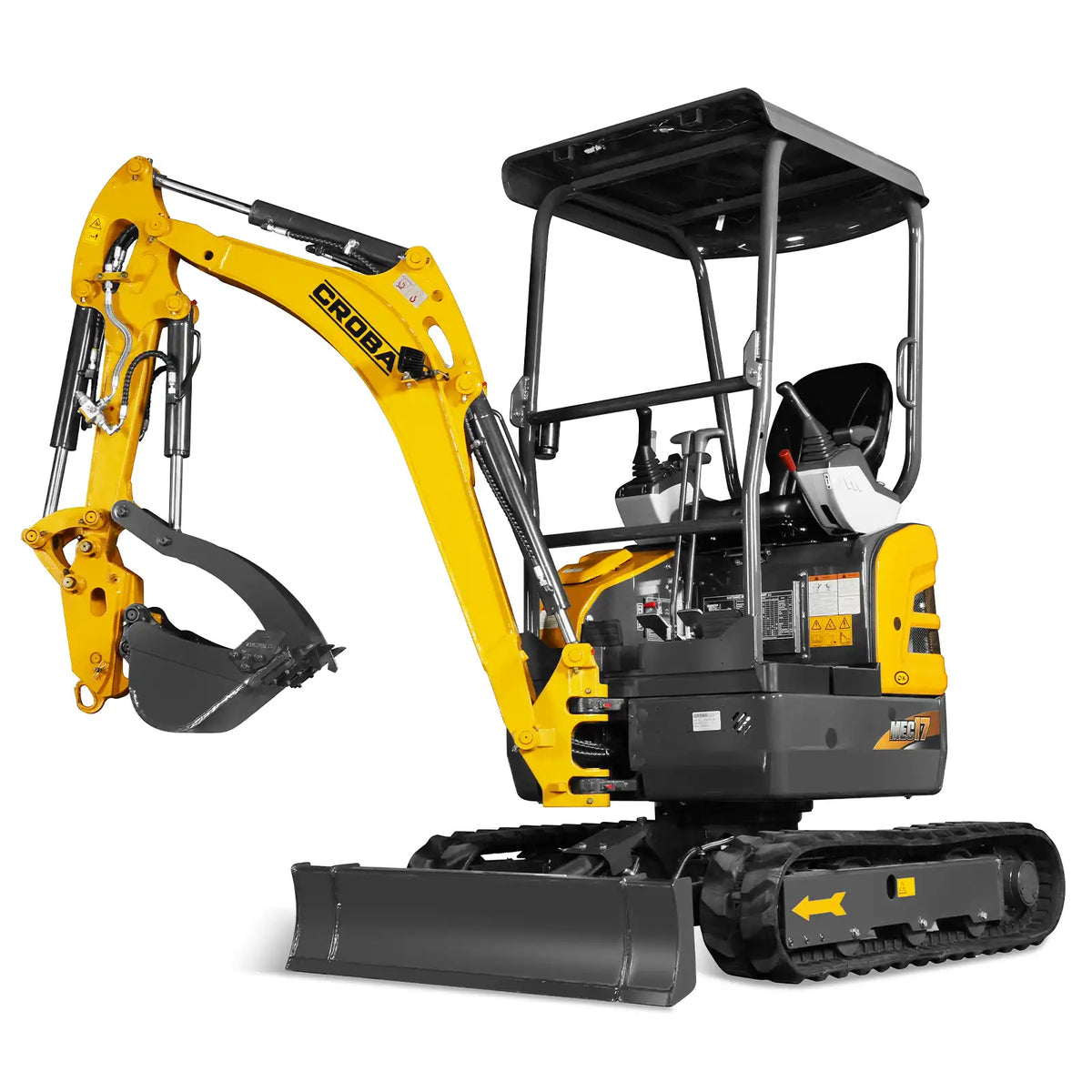

Mini Compact Excavator Kubota D902 Engine, 89" Max. Digging Depth, 1.7 Ton, 4145 LBS Operating Weight, MEC17
4.9/5 243 reviews
$19,109.30
Compact capability for serious work Built for construction, landscaping, property maintenance, and demanding jobsite applications, the MEC17 pairs a compact footprint with the verified specifications listed below. Review the dimensions, performance data, and included features to select the...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Compact capability for serious work
Built for construction, landscaping, property maintenance, and demanding jobsite applications, the MEC17 pairs a compact footprint with the verified specifications listed below. Review the dimensions, performance data, and included features to select the right machine for your operation.
| ENGINE | |||
| Model | Kubota D902 | Rated speed | 2300rpm |
| No.of Cylinders | 3 | Displacement | 54.8in |
| Stroke | 2.9in | Engine Output - Net | 15.8hp |
| Bore | 2.83in | Warranty For Engine | 2-Year or 2,000-Hour Warranty, Whichever Comes First. |
| TRAVEL SYSTEM | |||
| Track Roller Qty | 6 | Maximum Traction Force - Low Speed | 4047lbf |
| Type of tracks | Rubber | Ground Clearance | 5.7in |
| Travel Speed - High | 2.67 mile/h | Ground Pressure | 4.2psi |
| Travel Speed - Low | 1.37 mile/h | Gradeability - Maximum | Maximum 30 degrees |
| WEIGHT | |||
| Operating Weight | 4145lb | ||
| HYDRAULIC SYSTEM | |||
| Pump Flow at 2,300 rpm | 17gpm | Auxiliary Circuit - Primary - Flow | 9.1gpm |
| SWING SYSTEM | |||
| Swing Motor | Danfoss | Swing Speed | 9.5rpm |
| Swing Motor Type | SW2.5K | Tail Swing Radius | 25.6in |
| DIGGING FORCE | |||
| Boom Length | 72in | Bucket Digging Force | 3597lbf |
| Arm length | 37.4in | Arm Digging Force | 2136lbf |
| REFILING CAPACITIES & LUBRICATIONS | |||
| Fuel Tank | 5gal | Hydraulic Oil Tank | 3.6gal |
| Engine Oil | 1gal | System Capacity | 5.7gal |
| BUCKET | |||
| Bucket Capacity | 1.4ft³ | Bucket Width | 17.7in |
| SCOPE OF WORK | |||
| Max.Digging Height | 141in | Min Turning Radius Of Working Device | 57in |
| Max.Dumping Height | 98in | Max. Lift Above Ground | 11in |
| Max.Digging Depth | 89in | Max. Drop Below Ground | 7.5in |
| Max.Vertical Digging Depth | 75in | Boom Swing - Left | 65° |
| Max Digging Radius | 154in | Boom Swing - Right | 50° |
| Max.digging Radius At Ground Level | 151in | ||
| DIMENSIONS | |||
| Overall Length | 133in | Blade Height | 11.8in |
| Ground Contact Length （Transportation） | 96in | Crawler Wheel Base | 48.4in |
| Overall Width （Retracted/Expanded) | 39/51in | Shoe Width | 9.1in |
| Overall Height（To Top Of Cab） | 94.7in | Track Length | 62.7in |
| Counter Weight Ground Clearance | 18in | Track Gauge（Retracted/Expanded) | 30/42in |
| Ground Clearance | 5.7in | Track Width（Retracted/Expanded) | 39/51in |
| Blade Width（Retracted/Expanded) | 39/51in | ||
| SERVICE | |||
| Package Method | Wood Case | Warranty For Machine | 1 Year |
| Packing Size | 112.6x43.7x99.2 in | Weight (N.W./G.W.) | 3968/4508lb |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
