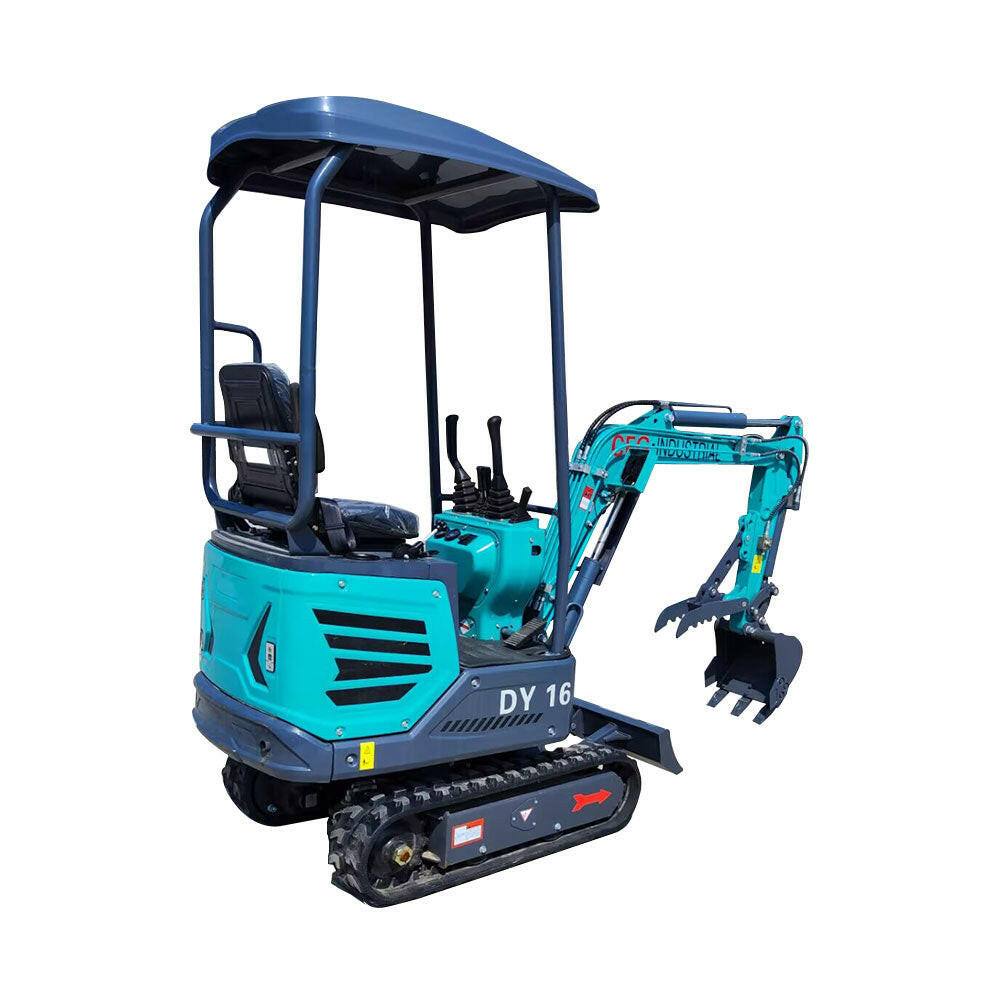

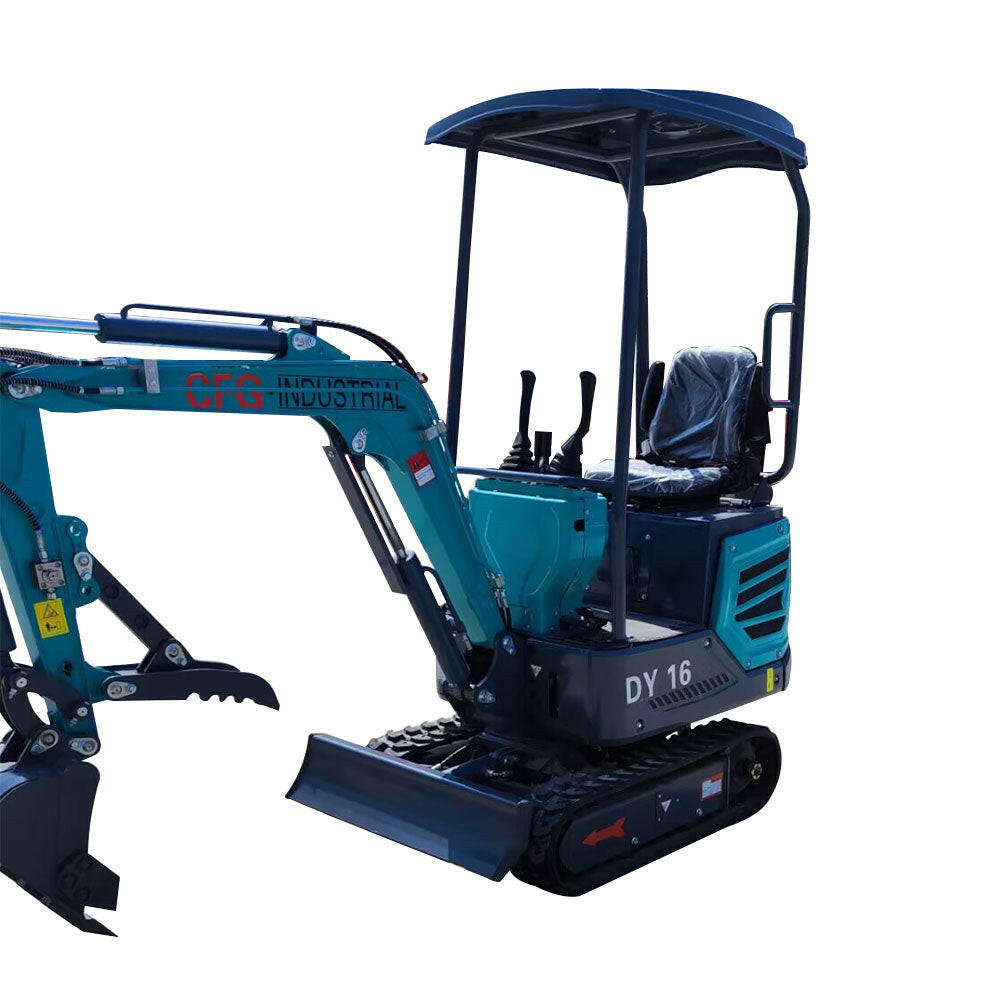

1 Ton Mini Excavator Kubota D722 Diesel Engine Rubber Tracks Dozer Blade | CFG-DY16
4.9/5 243 reviews
$7,713.99
Professional equipment built for demanding jobs. 1 Ton Mini Excavator Kubota D722 Diesel Engine Rubber Tracks Dozer Blade | CFG-DY16 The CFG-DY16 is a compact and versatile mini excavator designed for various construction and landscaping tasks. Manual Technical...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
1 Ton Mini Excavator Kubota D722 Diesel Engine Rubber Tracks Dozer Blade | CFG-DY16

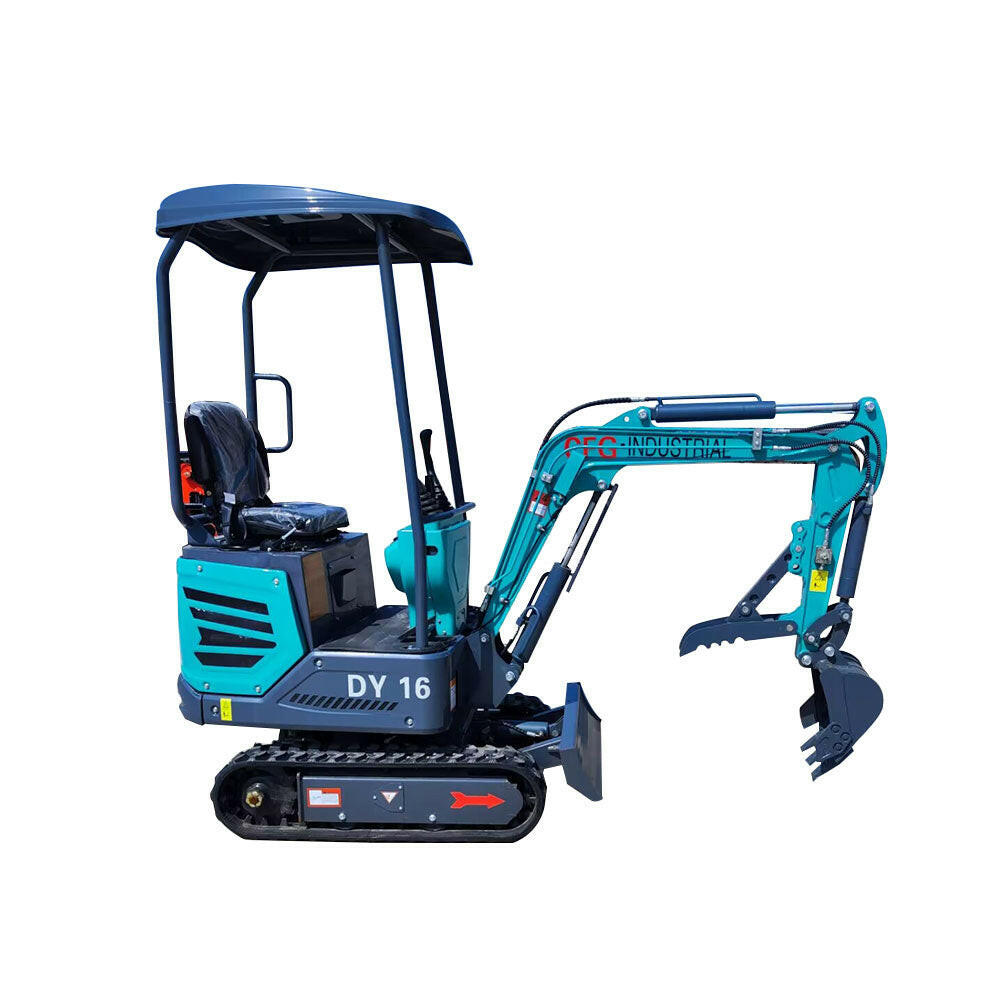

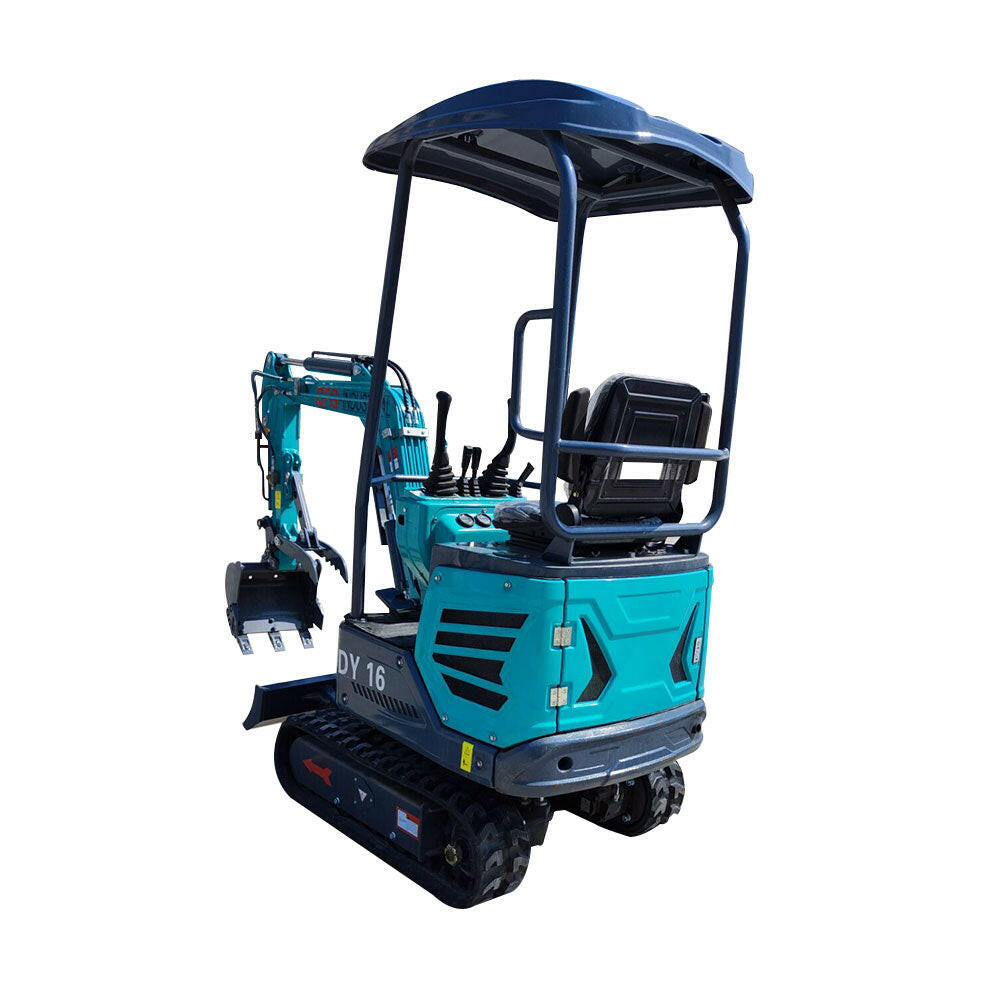

The CFG-DY16 is a compact and versatile mini excavator designed for various construction and landscaping tasks.
Manual

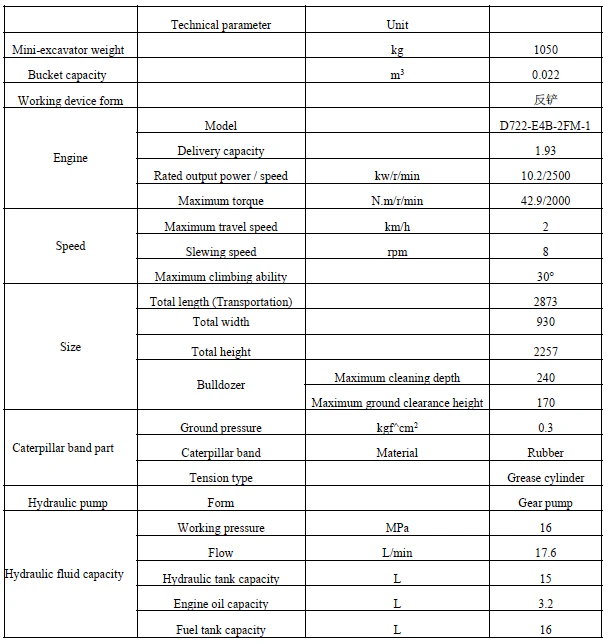

Technical Data:
-
Mini-excavator weight: 1,050 kg
-
Bucket capacity: 0.022 m³
-
Working Device: Backhoe
Engine
-
Model: D722-E4B-2FM-1
-
Delivery capacity: 1.93
-
Rated output power/speed: 10.2 kW / 2500 r/min
-
Maximum torque: 42.9 N·m / 2000 r/min
Speed & Performance
-
Maximum travel speed: 2 km/h
-
Slewing speed: 8 rpm
-
Maximum climbing ability: 30°

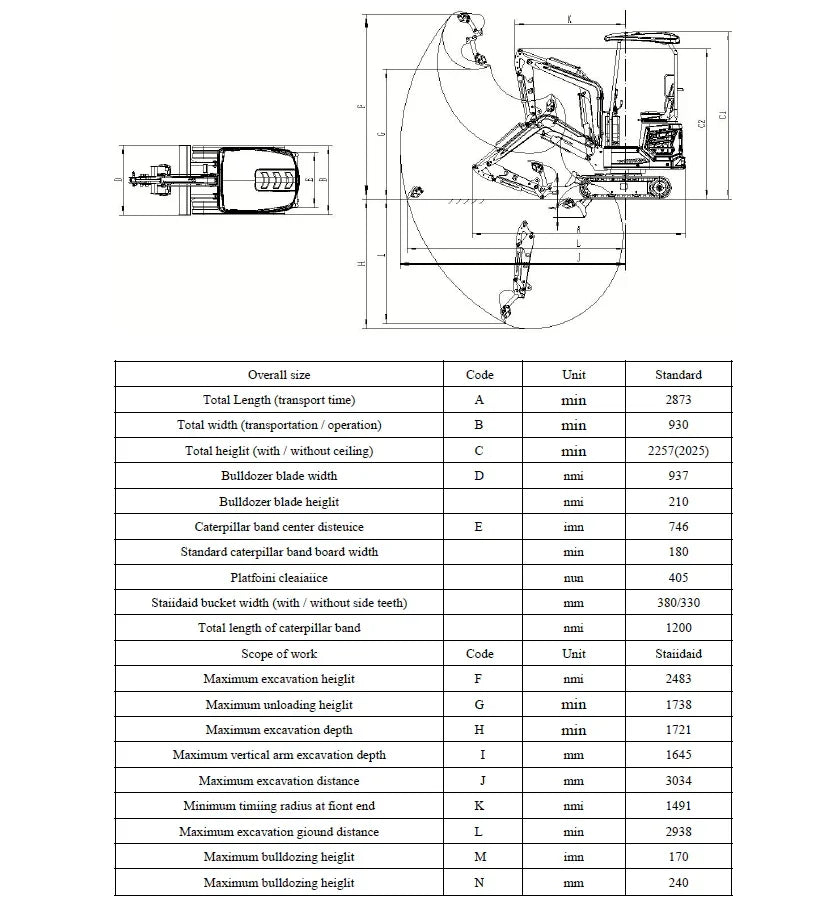

Size & Dimensions
-
Total Length (Transportation): 2,873 mm
-
Total Width: 930 mm
-
Total Height (with/without ceiling): 2,257 mm / 2,025 mm
Bulldozer
-
Blade Width: 937 mm
-
Blade Height: 210 mm
-
Maximum bulldozing height: 170 mm
-
Maximum bulldozing depth: 240 mm

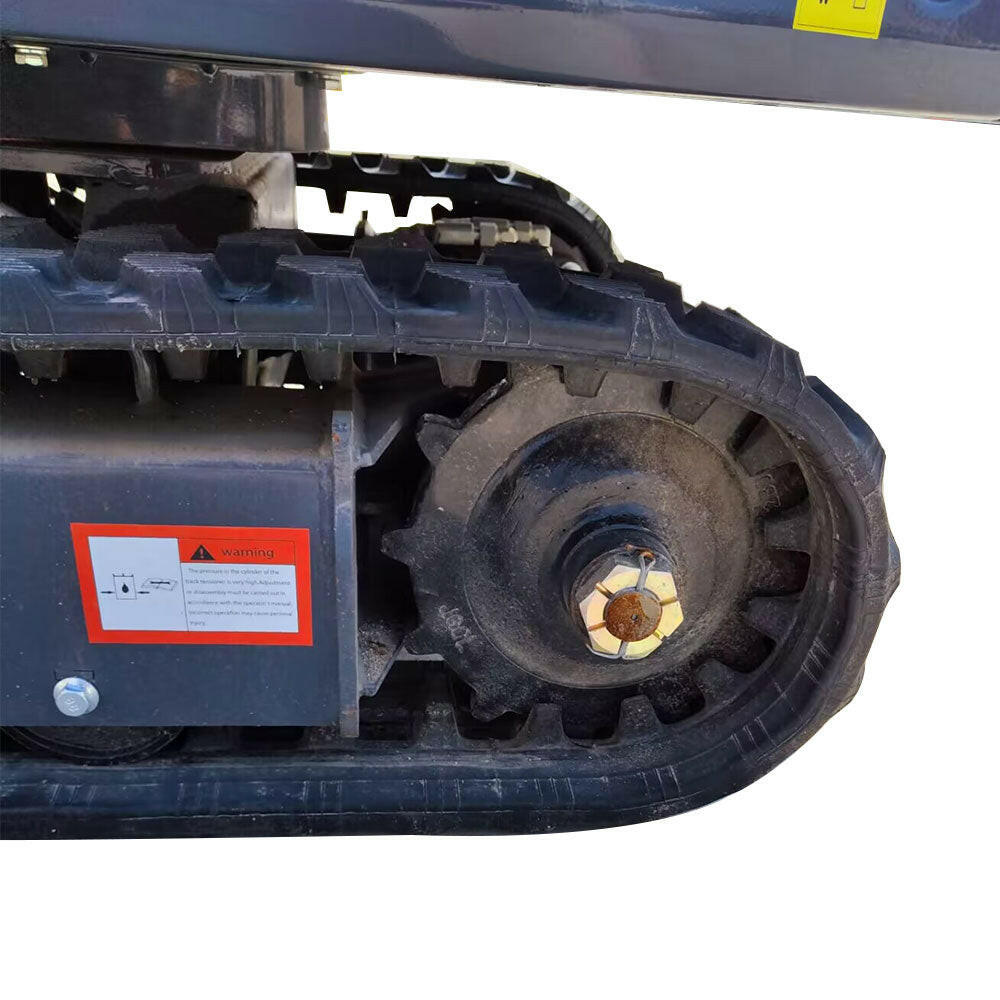

Caterpillar Band Part
-
Ground pressure: 0.3 kgf/cm²
-
Material: Rubber
-
Center Distance: 746 mm
-
Standard Board Width: 180 mm
-
Total Length of Caterpillar Band: 1,200 mm
-
Tension Type: Grease cylinder
Hydraulic System
-
Pump Type: Gear pump
-
Working Pressure: 16 MPa
-
Flow Rate: 17.6 L/min
Fluid Capacities
-
Hydraulic Tank Capacity: 15 L
-
Engine Oil Capacity: 3.5 L
-
Fuel Tank Capacity: 16 L
Scope of Work
-
Maximum Excavation Height: 2,483 mm
-
Maximum Unloading Height: 1,738 mm
-
Maximum Excavation Depth: 1,721 mm
-
Maximum Vertical Arm Excavation Depth: 1,645 mm
-
Maximum Excavation Distance: 3,034 mm
-
Minimum Turning Radius at Front End: 1,941 mm
-
Maximum Excavation Ground Distance: 2,938 mm
