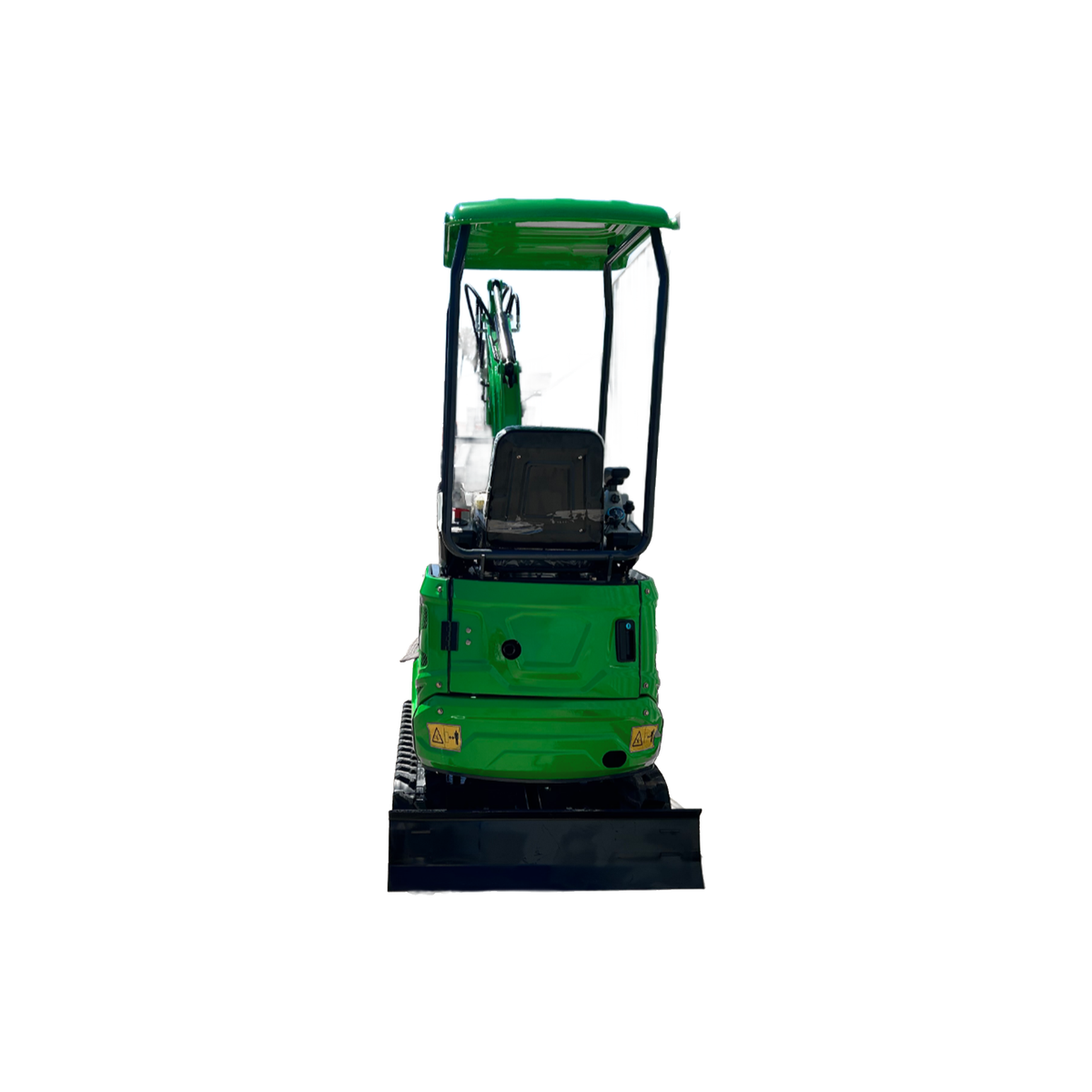

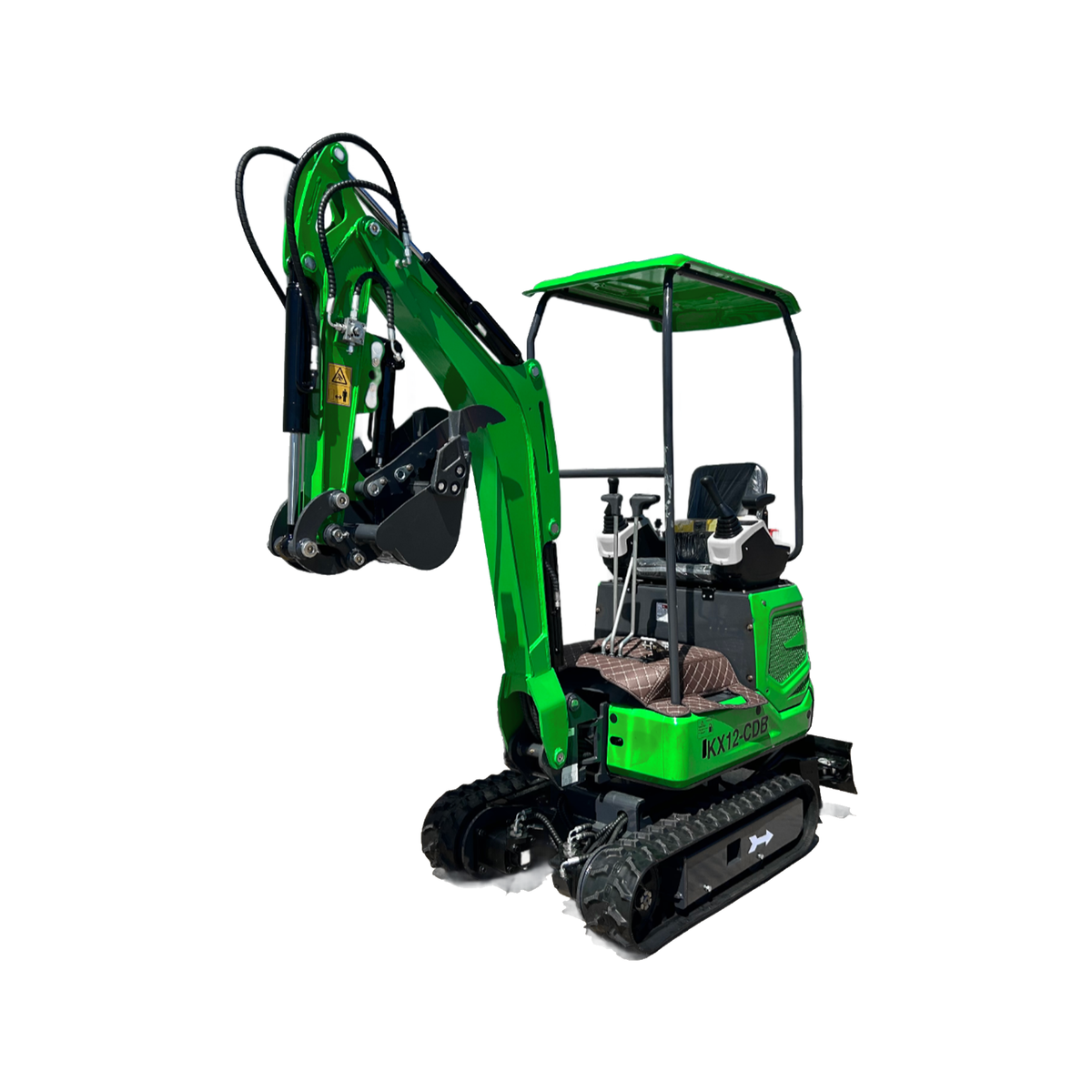

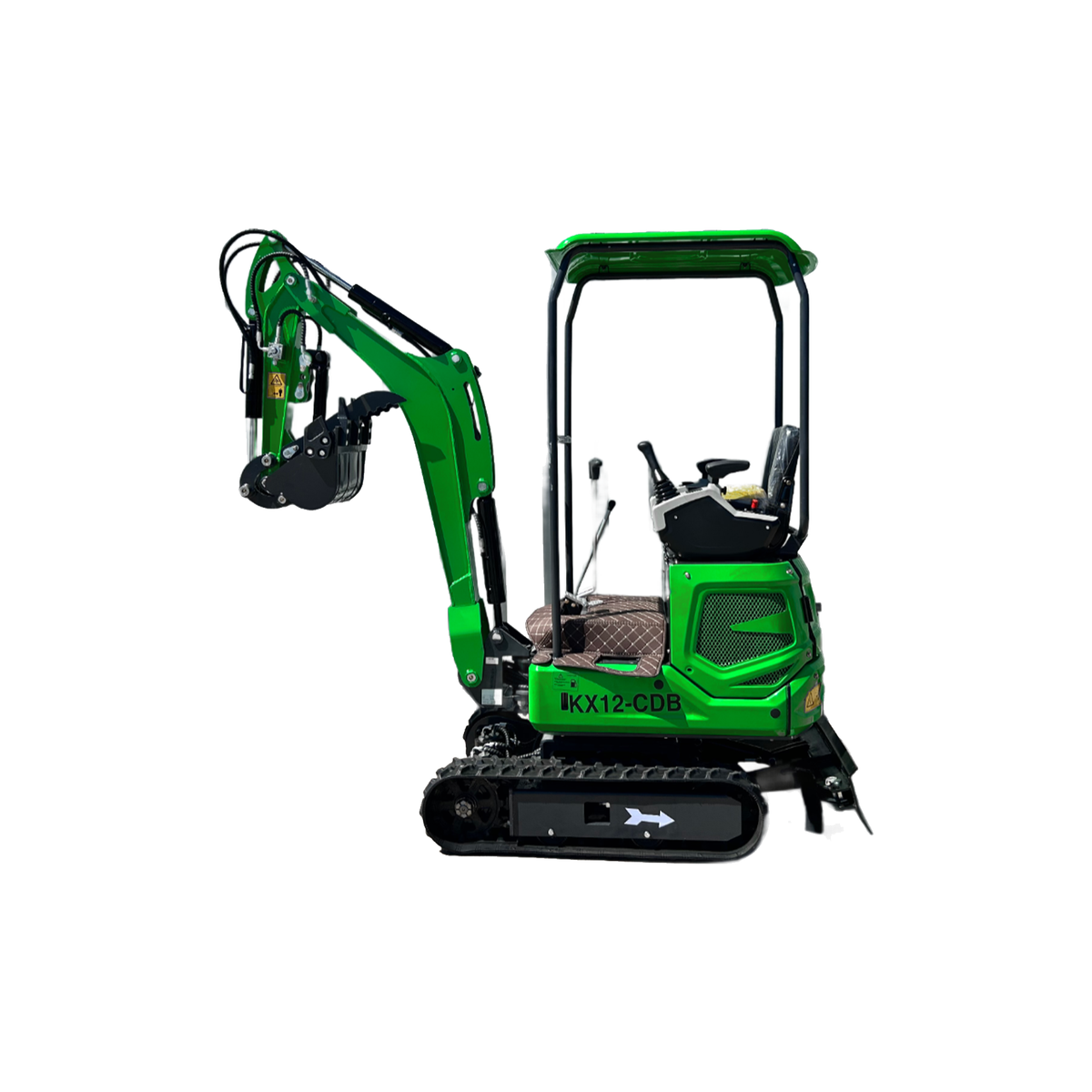

1-Ton Mini Excavator w/ B&S Engine & Hydraulic Thumb (KX12-CDB)
4.9/5 243 reviews
$3,099.00
The AGT-KX12-CD(B) is a side-swing capable mini excavator powered by a reliable 13.5 HP Briggs & Stratton gasoline engine. Built for maneuverability and light construction work, it offers increased digging reach, a 0.03 m³ bucket, and a compact...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
The AGT-KX12-CD(B) is a side-swing capable mini excavator powered by a reliable 13.5 HP Briggs & Stratton gasoline engine. Built for maneuverability and light construction work, it offers increased digging reach, a 0.03 m³ bucket, and a compact design suited for tight-access job sites. dual blade lifting functions, and a simple hydraulic system, the KX12-CD(B) delivers essential performance in an affordable, easy-to-maintain package.
- Bucket Capacity 0.03 m³
- Climbing Ability 11%
Tail Minimum Turning Radius 800 mm
Dimension
Operating Weight: 0.9 Tons (1,984 lbs)
Overall Length: 3,240 mm (127.5 in)
Overall Width: 990 mm (39 in)
Overall Height: 2,200 mm (86.5 in)
Track Size: 1807237 (WidthPitch LengthLinks)
Working Range
Max Digging Height: 2,900 mm (114 in)
Max Dumping Height: 2,100 mm (82.5 in)
Max Reach at Ground: 3,250 mm (128 in)
Blade Width: 950 mm (37 in)
Blade Height: 230 mm (9 in)
Blade Max Lifting Height: 190 mm (7.5 in)
Blade Max Drop Depth: 190 mm (7.5 in)
Engine
Engine Brand: B&S
Fuel Type: Gasoline
Model: XR
Rated Power: 10 kW (13.3 HP)
Displacement: 420 cc
Fuel Capacity: 6.6 L (1.7 gal)
Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
Hydraulic Pressure: 16 MPa (2320 PSI)
Hydraulic Tank Capacity: 18 L (4.7 gal)
Battery: 12V, 45–60Ah
Features
Swing Boom
Hydraulic Thumb
Pilot Control
Expandable Tracks
