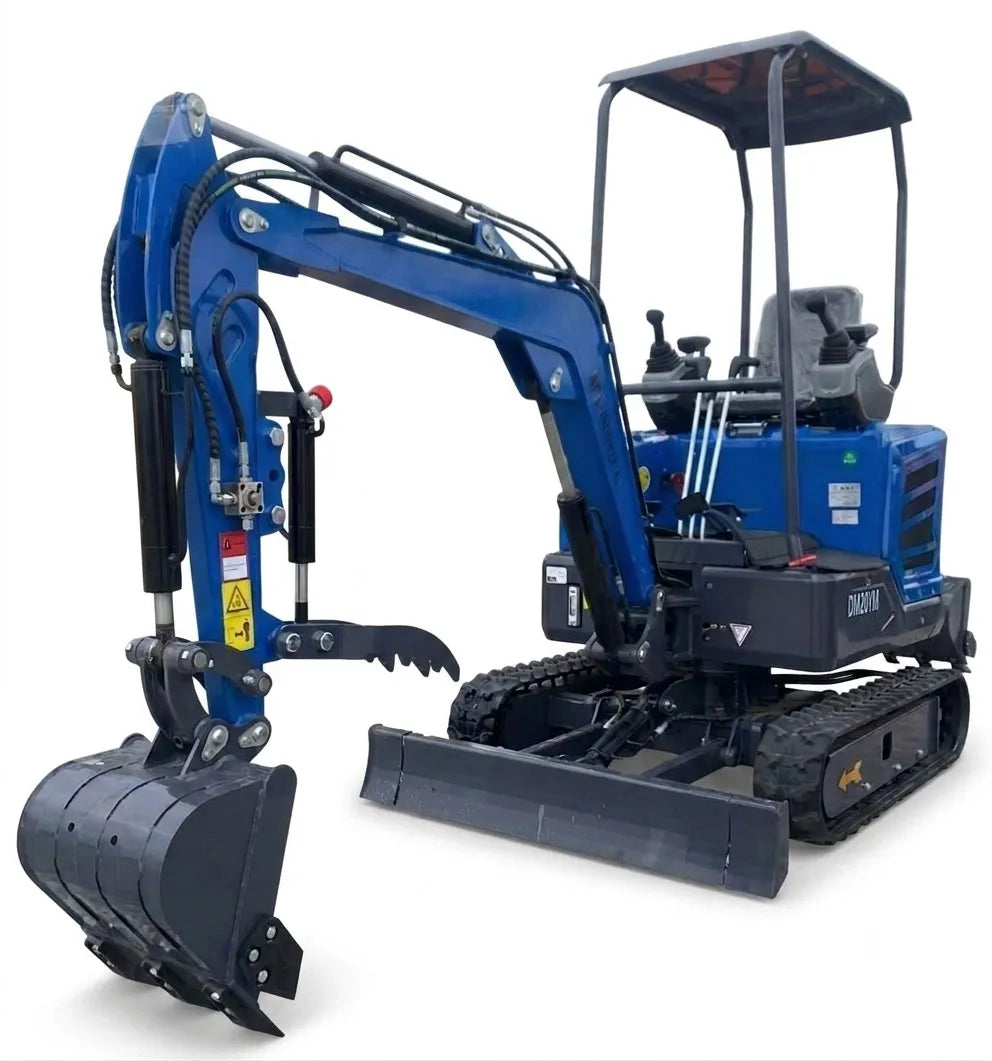

2 Ton Mini Excavator Yanmar Diesel Retractable Tracks & Pilot Control | DM20YM
4.9/5 243 reviews
$7,790.30
Professional equipment built for demanding jobs. 2 Ton Mini Excavator Yanmar Diesel Retractable Tracks & Pilot Control | DM20YM SPECIFICATIONS Basic Performance Operating Weight: 1.3 Ton (~2,866 lbs) / 2 Ton Class Bucket Capacity: 0.03 m³ (1.06 cu....
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
2 Ton Mini Excavator Yanmar Diesel Retractable Tracks & Pilot Control | DM20YM
SPECIFICATIONS
Basic Performance
- Operating Weight: 1.3 Ton (~2,866 lbs) / 2 Ton Class

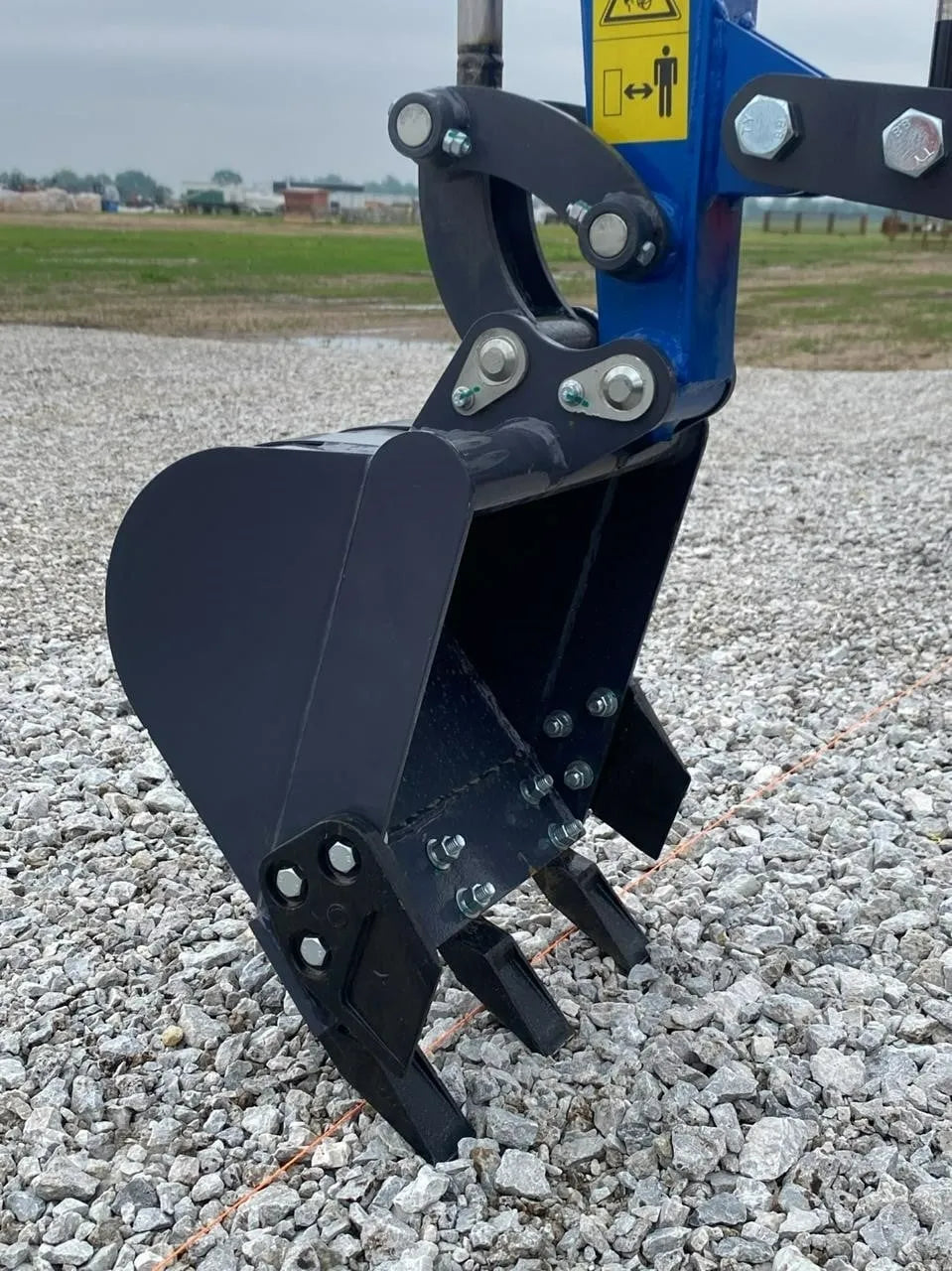

- Bucket Capacity: 0.03 m³ (1.06 cu. ft.)
- Travel Speed (Low/High): 0 - 2 km/h (0 - 1.24 mph)
- Climbing Ability: 30%
- Swing Speed: 10 rpm
- Bucket Digging Force: 8 kN
- Arm Digging Force: 6 kN
Working Range
A - Max. Digging Height: 2,890 mm (113.8 in)
B - Max. Dumping Height: 1,958 mm (77.1 in)
C - Max. Digging Depth: 2,257 mm (88.9 in)
D - Max. Vertical Digging Depth: 2,090 mm (82.3 in)
E - Max. Digging Radius: 3,305 mm (130.1 in)
F - Min. Swing Radius: 1,584 mm (62.4 in)
G - Min. Tail Swing Radius: 849 mm (33.4 in)
H - Dozer Blade Max. Lifting Height: 288 mm (11.3 in)
I - Dozer Blade Max. Digging Depth: 146 mm (5.7 in)
Side Swing Boom: Yes (Angle: 30° Left / 30° Right)

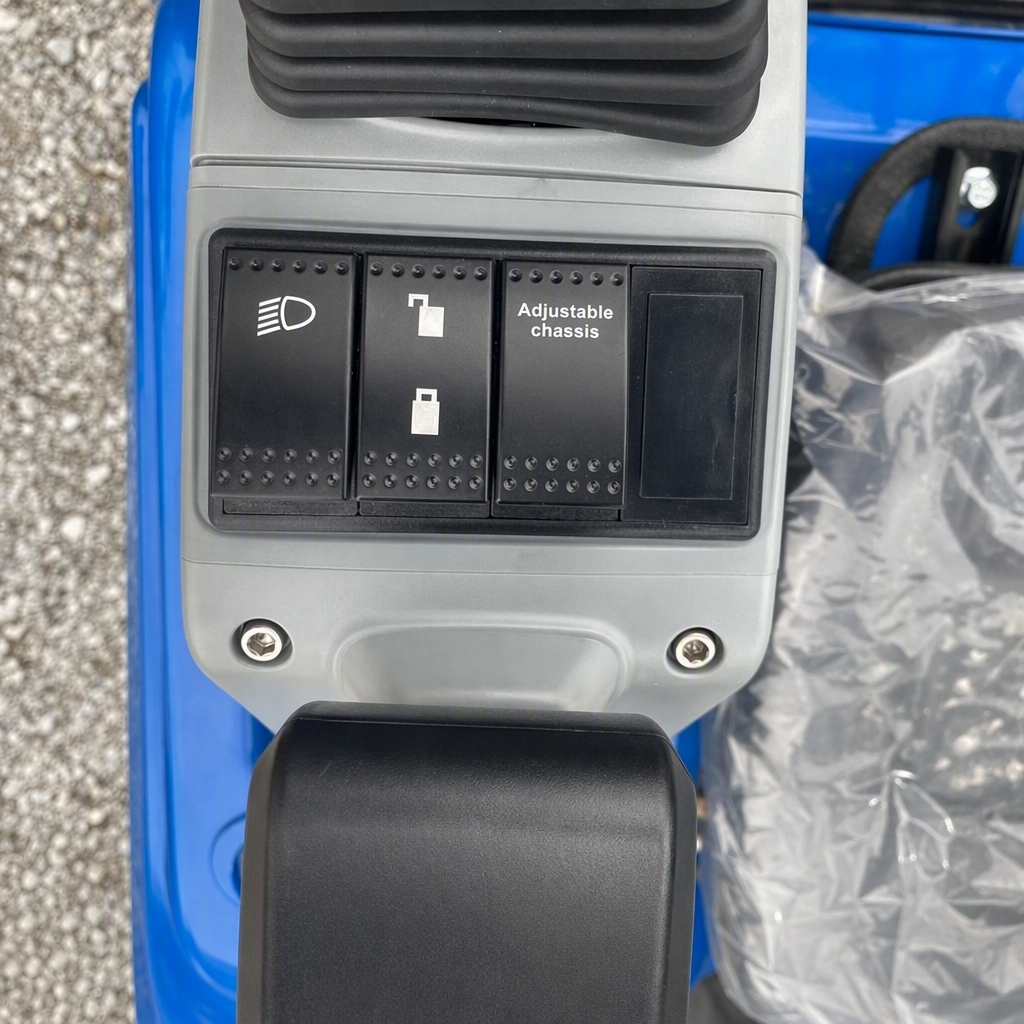

Retractable Undercarriage: Yes
Dimensions & Chassis
J - Overall Length: 3,200 mm (126 in)
K - Overall Width: 936 mm (36.9 in)
L - Overall Height: 2,210 mm (87 in)
M - Wheelbase: 1,092 mm (43 in)
N - Track Gauge: 755 mm (29.7 in)
Dozer Blade (Width × Height): 1,000 mm × 180 mm (39.4 in × 7.1 in)
Chassis Upgrade: DM20 Reinforced Lower Frame & Heavy-Duty Boom/Arm

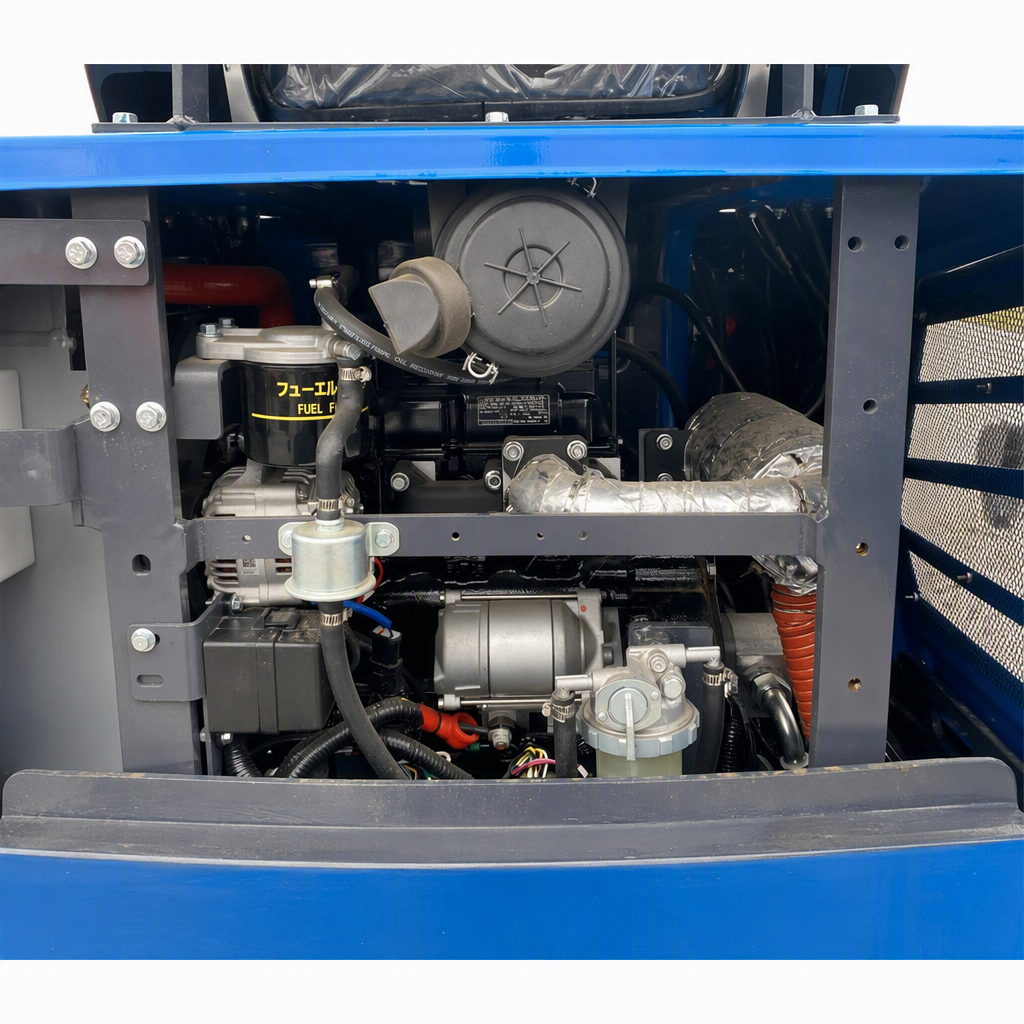

Engine
- Engine Brand: Yanmar
- Engine Model: 3TNV74F-SPTY1C
- Type: 3-Cylinder, Liquid-Cooled Diesel Engine
- Rated Power: 13.7 kW (18.4 HP) @ 3,000 rpm
- Fuel Type: Diesel
Hydraulic System
- Main Pump Type/Model: Gear Pump / 8+3
- Main Pump Max. Flow Rate: 28.8 L/min (7.6 GPM)
- Main Pump Rated Pressure: 16 MPa (2,320 PSI)
- Multi-Way Valve: Premium 9-Spool Semi-Hydraulic Control Valve
- Valve Rated Pressure: 18 MPa (2,610 PSI)
- 8-Way Central Rotary Joint: Included
- Hydraulic Oil Cooler: Included
- Travel Hydraulic Motor: BMER3-350 (Displacement: 350 cc)
- Swing Hydraulic Motor: BM1-315 (Displacement: 315 cc)

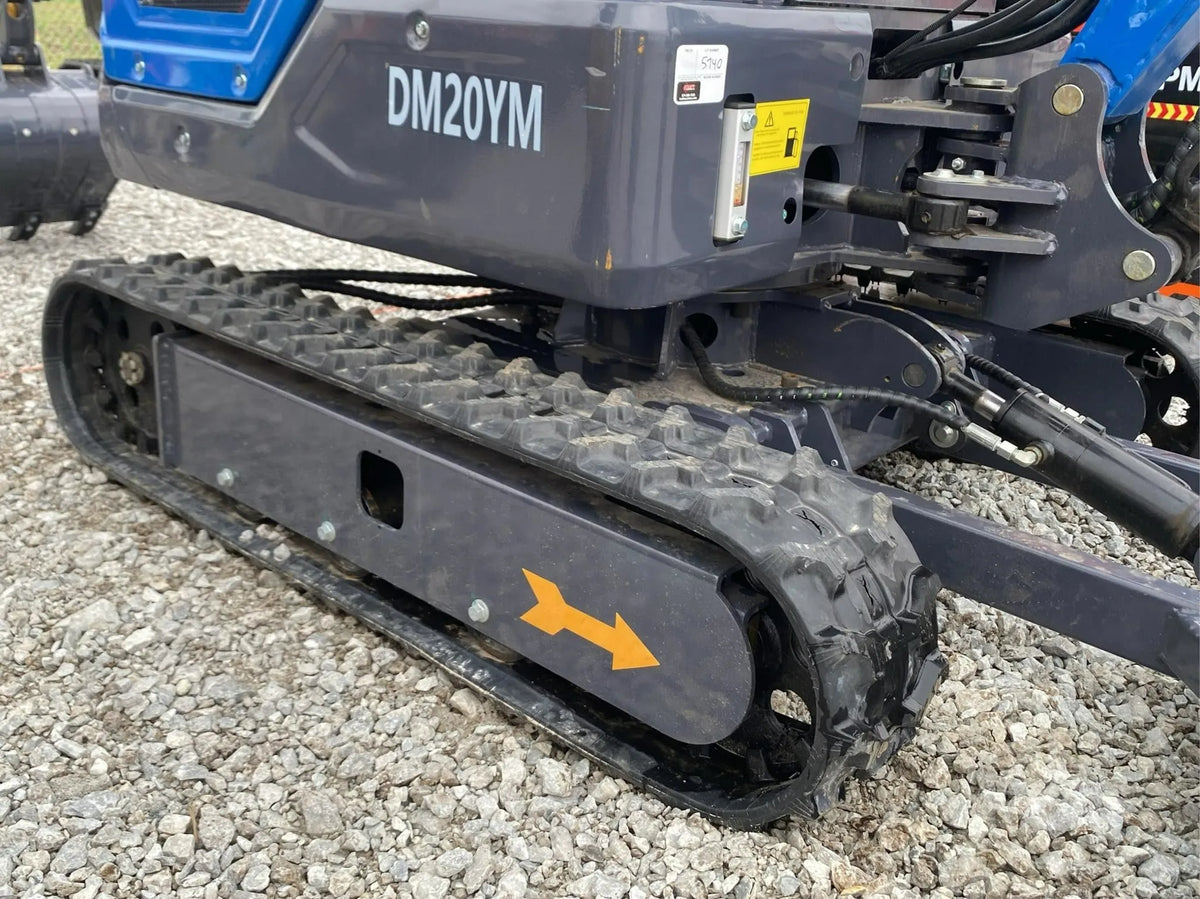

Tracks & Capacities
- Rubber Track Size (Width × Pitch × Links): 230 mm × 72 mm × 43
- Track Tensioning Form: Hydraulic Tensioning

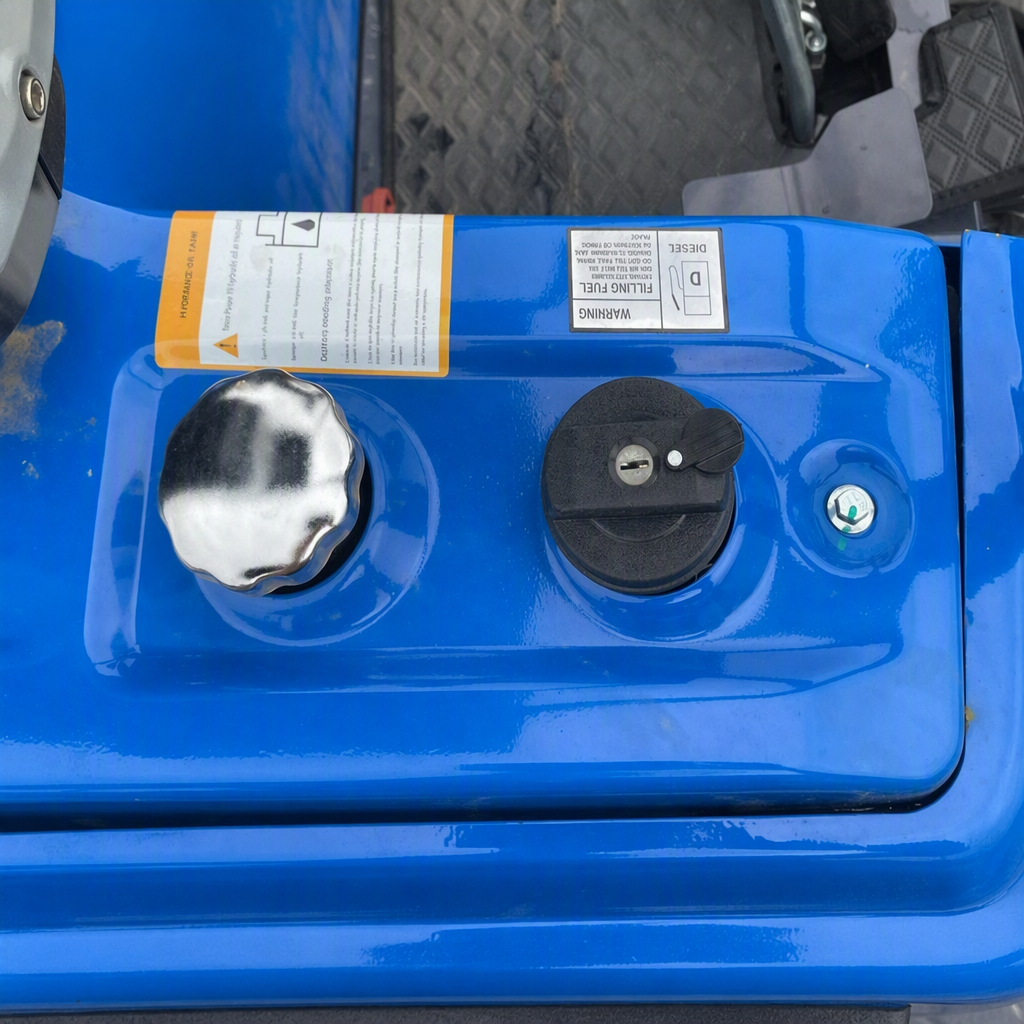

- Fuel Tank Capacity: 8.7 L (2.3 gal)
- Hydraulic Tank Capacity: 14.2 L (3.75 gal)
Premium Features Included

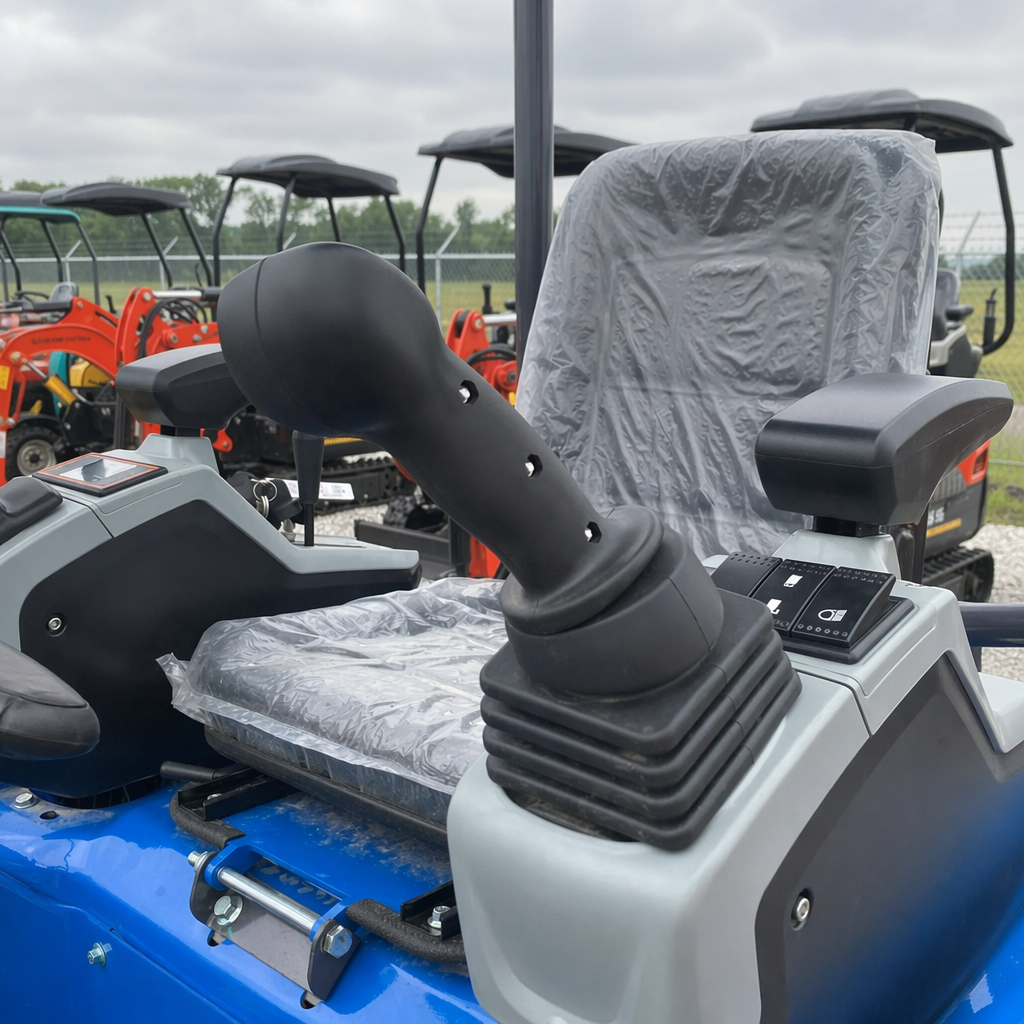

- Pilot Joystick Controls: Ergonomic, precise hydraulic operation

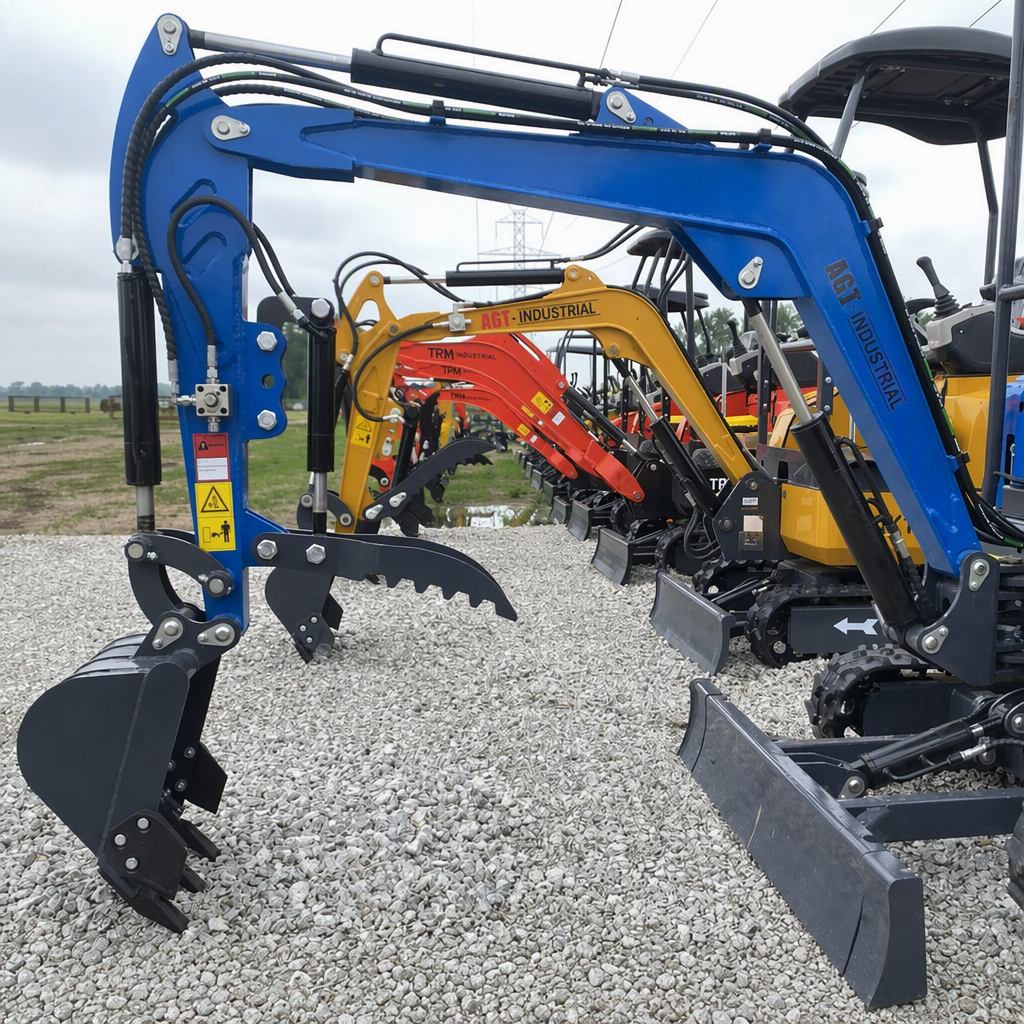

- Hydraulic Thumb Clip: Factory-installed for material handling

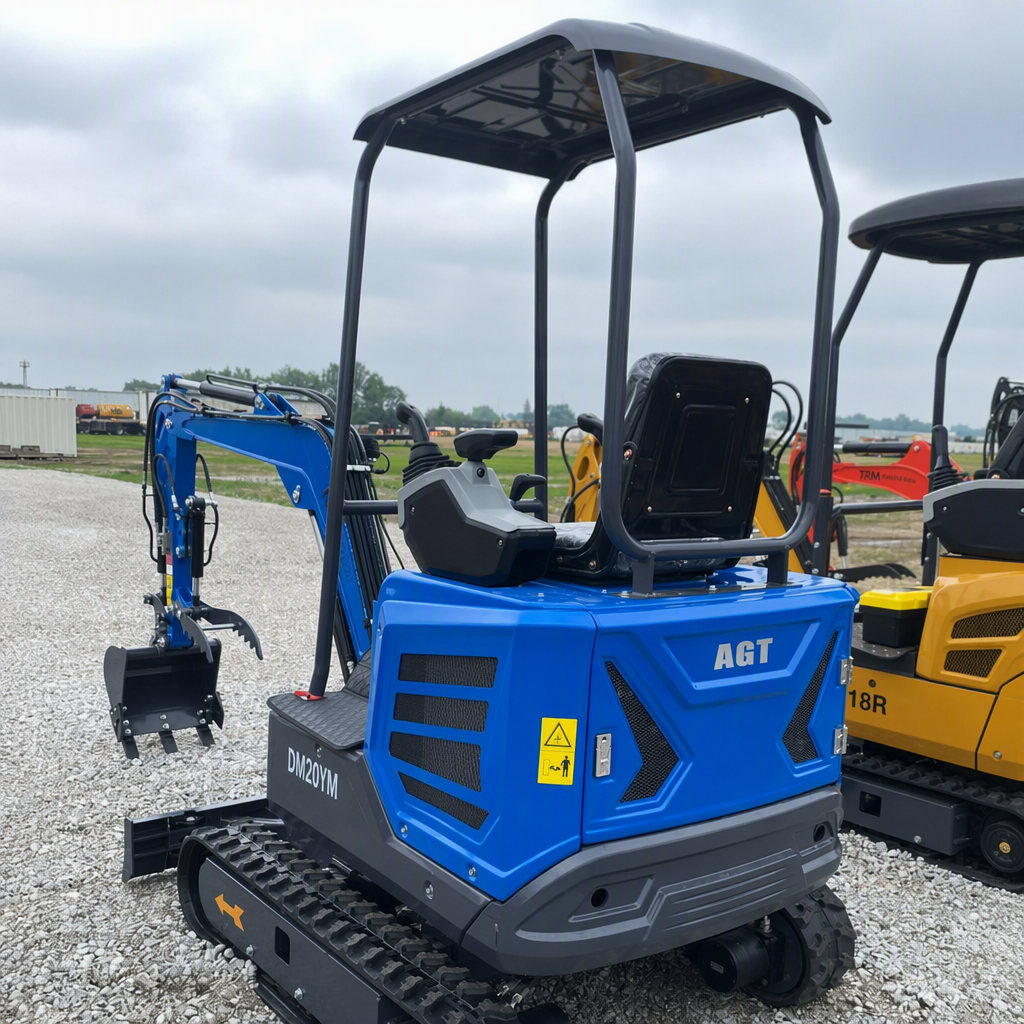

- Operator Protection: Heavy-duty Sun Canopy / Canopy Roof

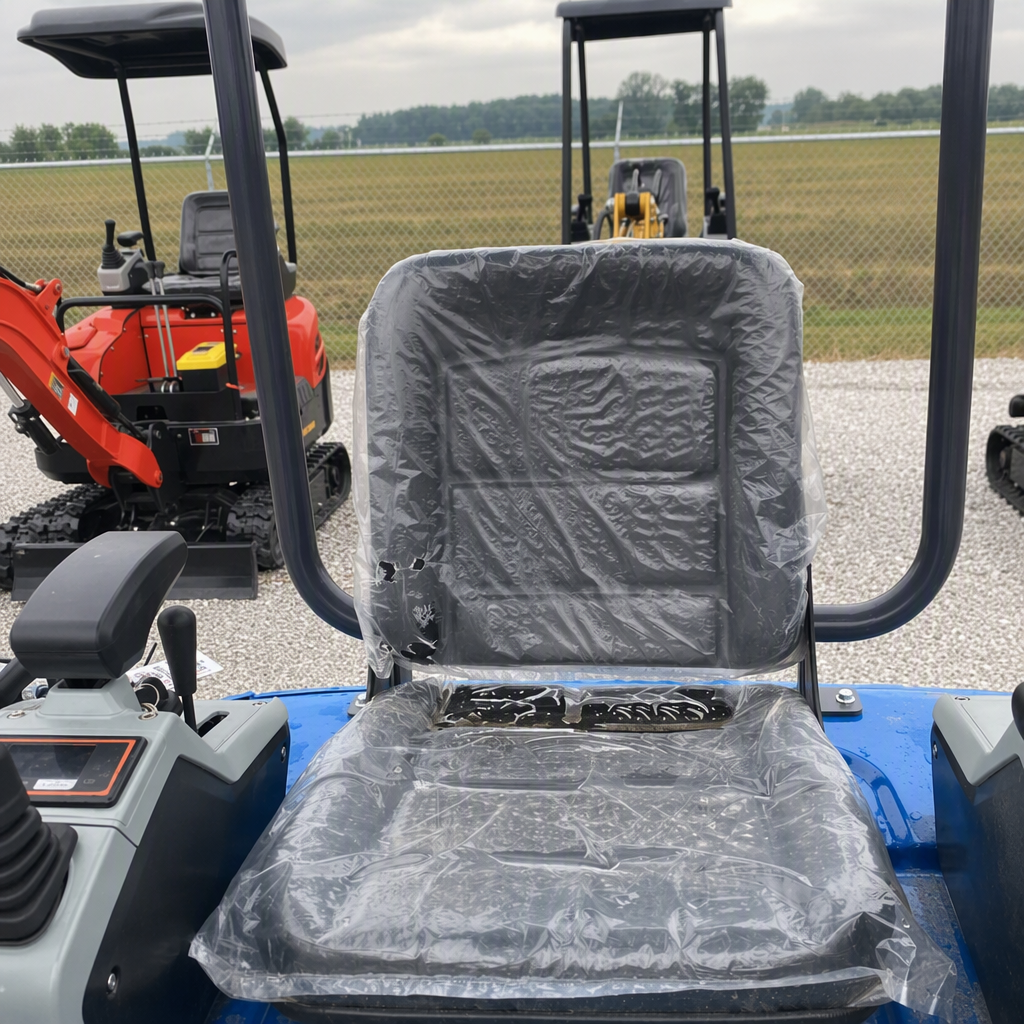

- Comfort & Safety: Safety Armrest & Integrated Counterweight
Need help choosing the right configuration? HyperLifts can help review your application, delivery requirements, and equipment needs before reservation.
