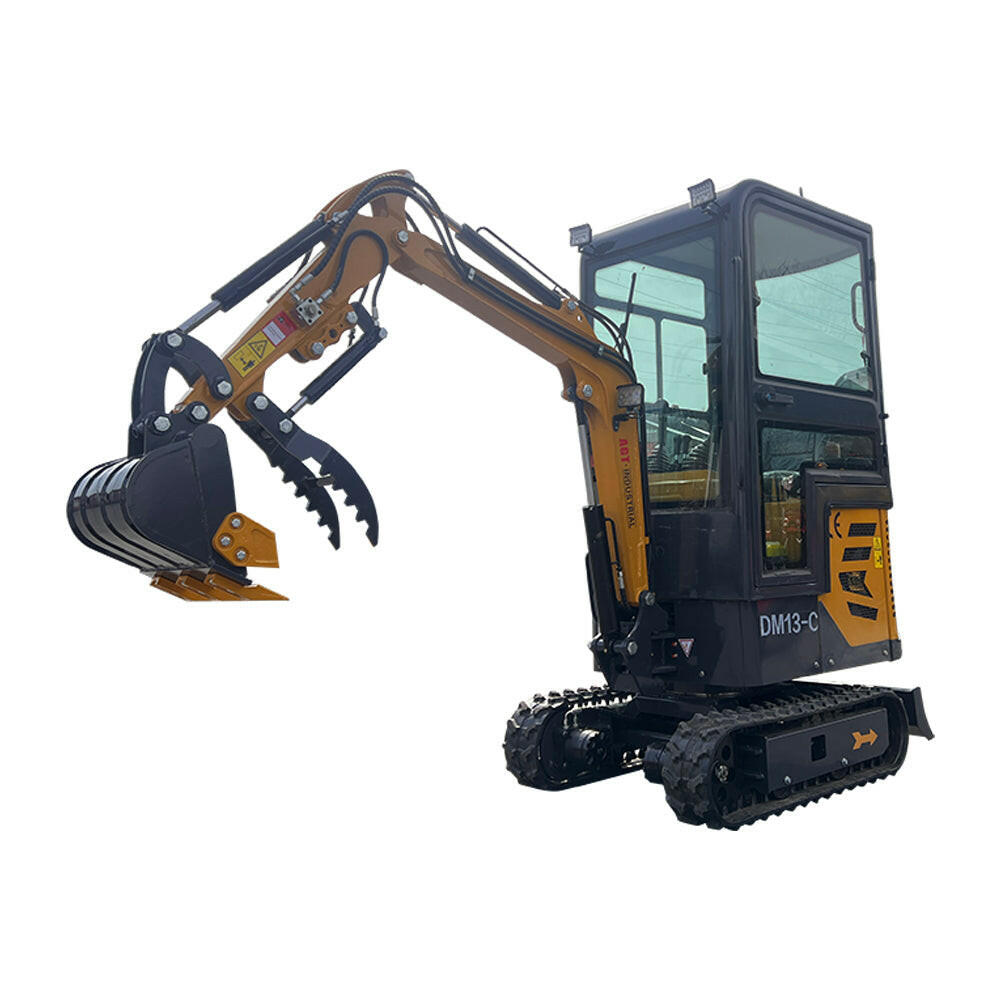

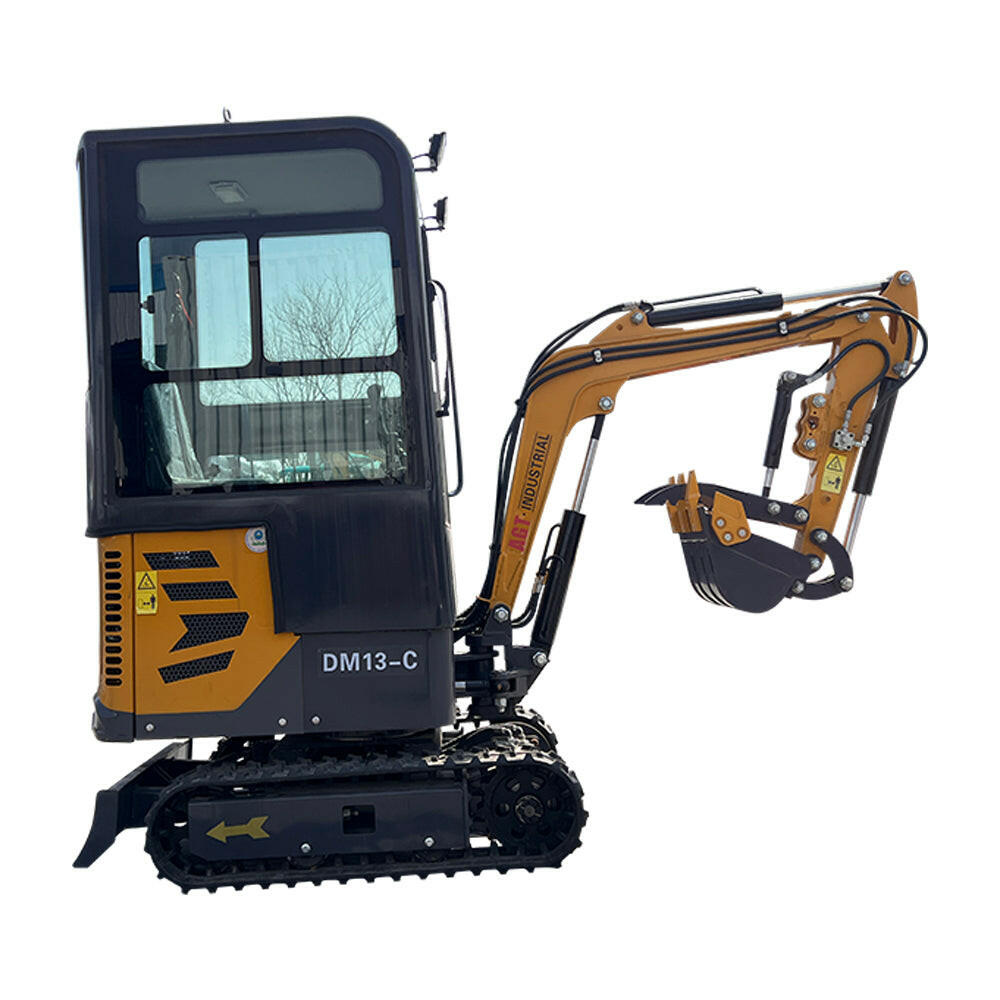

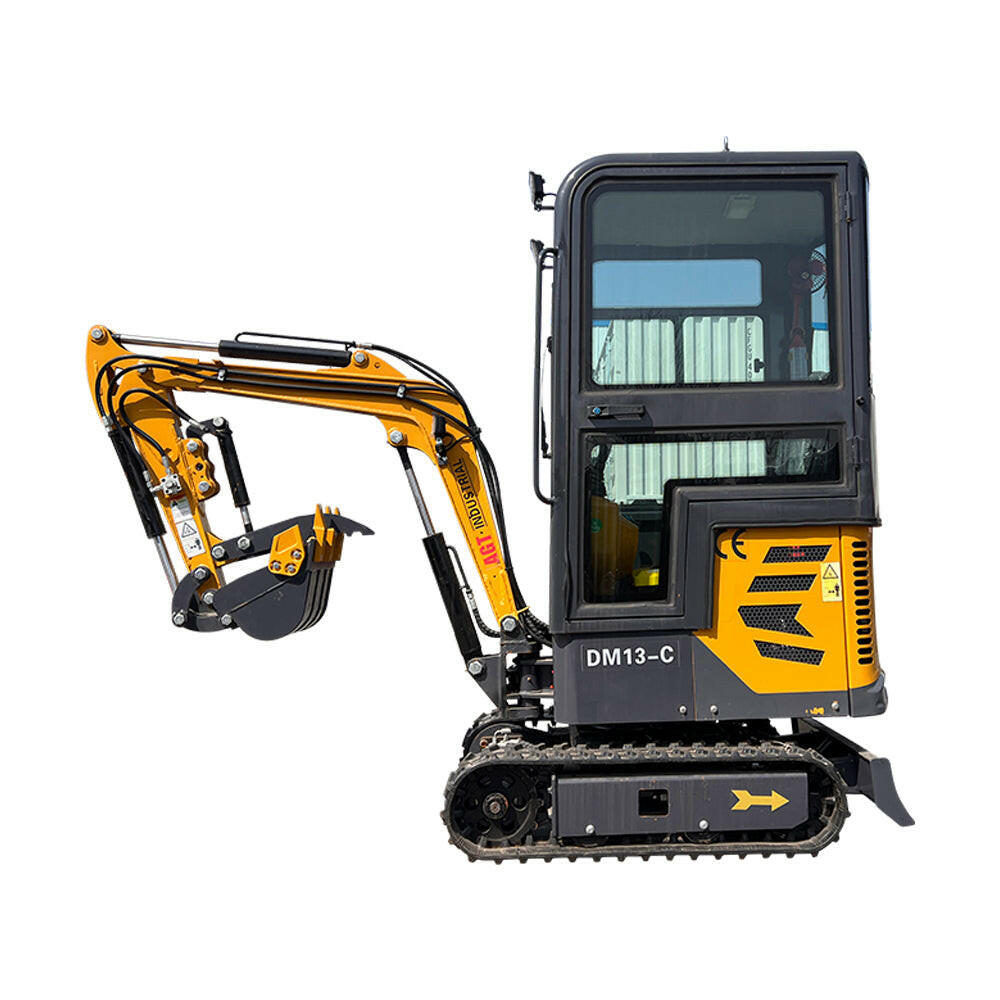

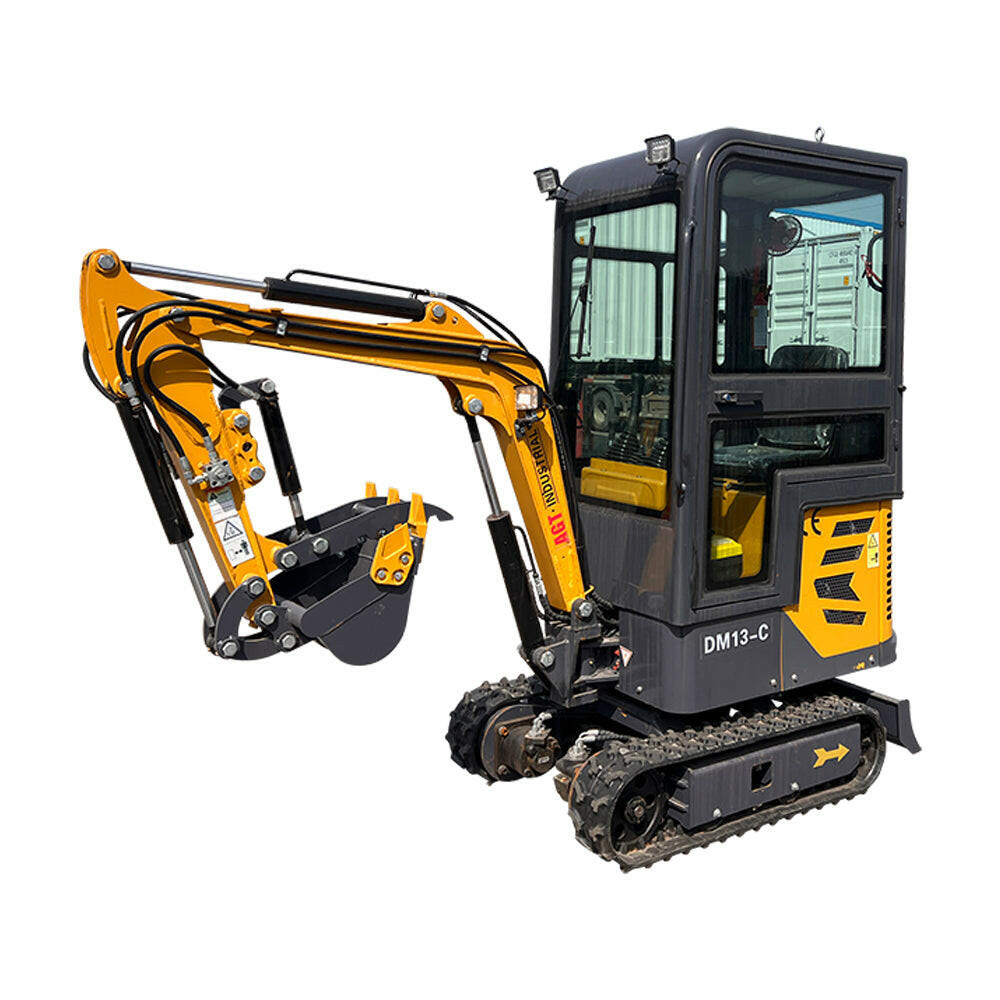

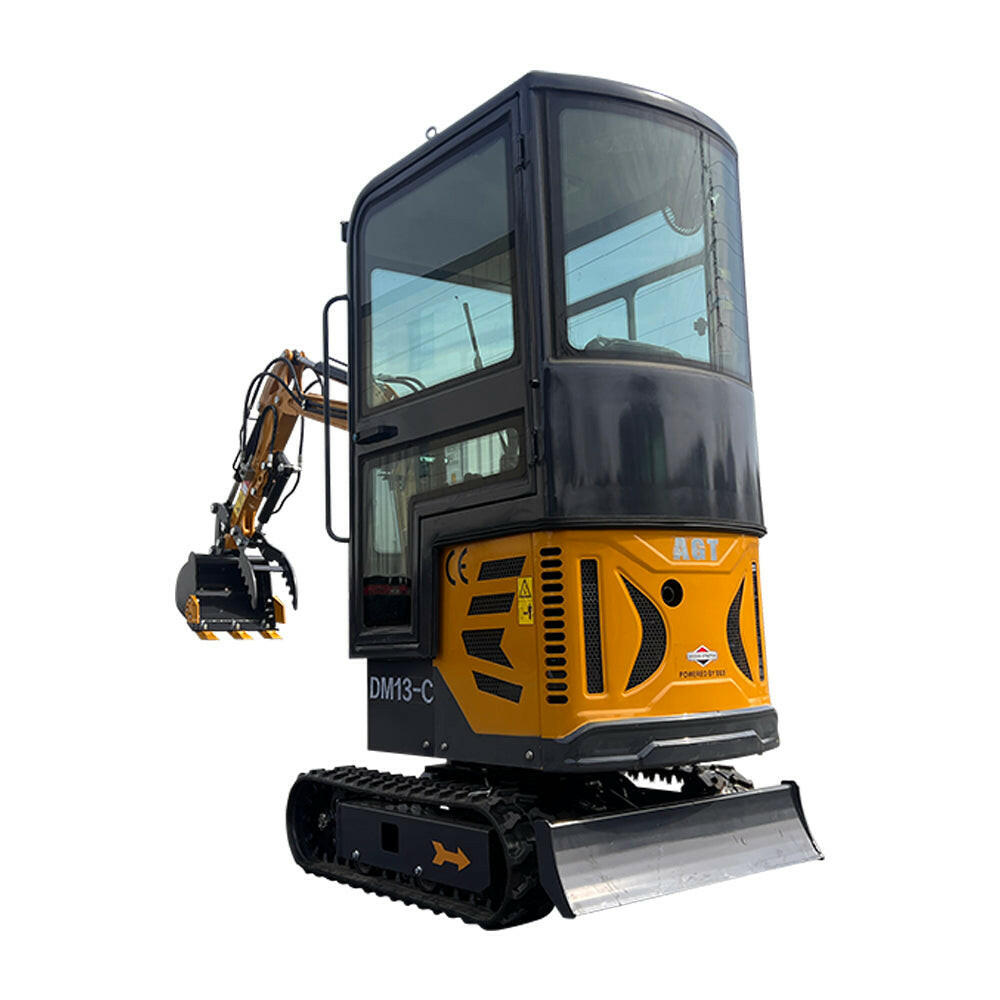

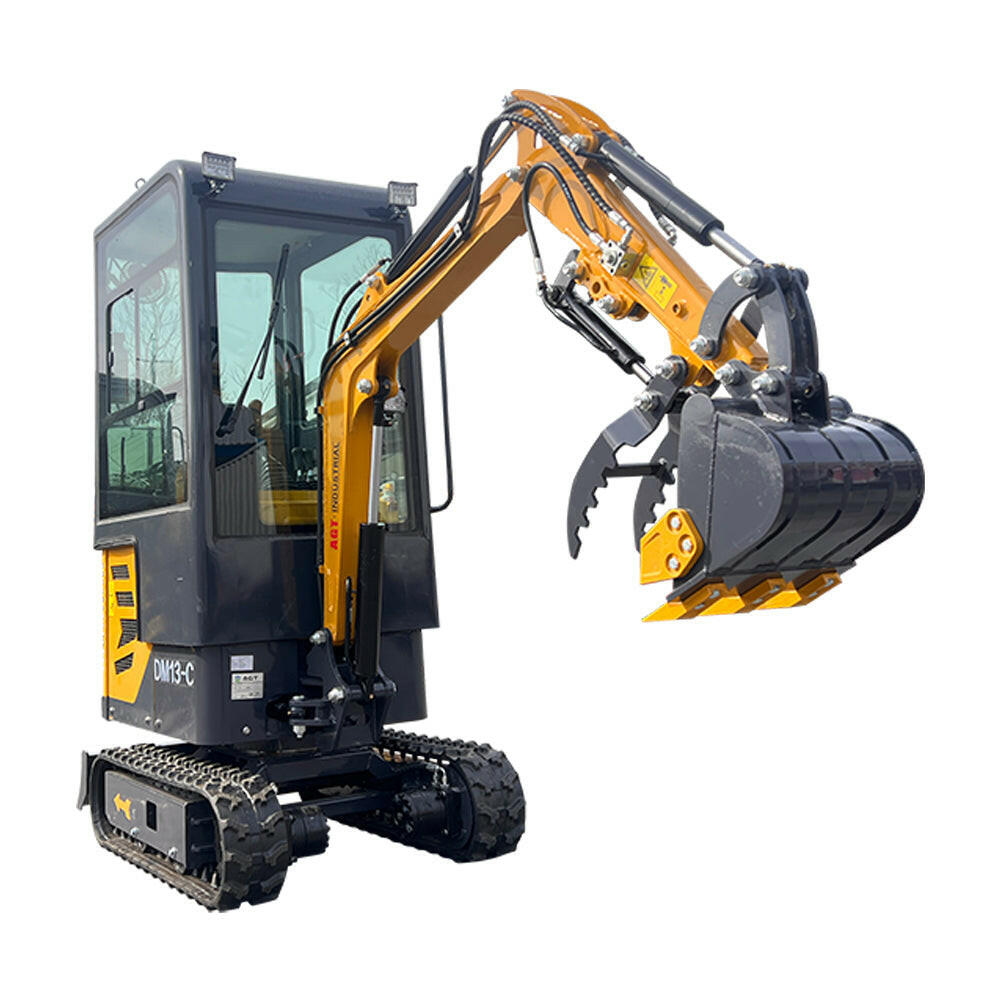

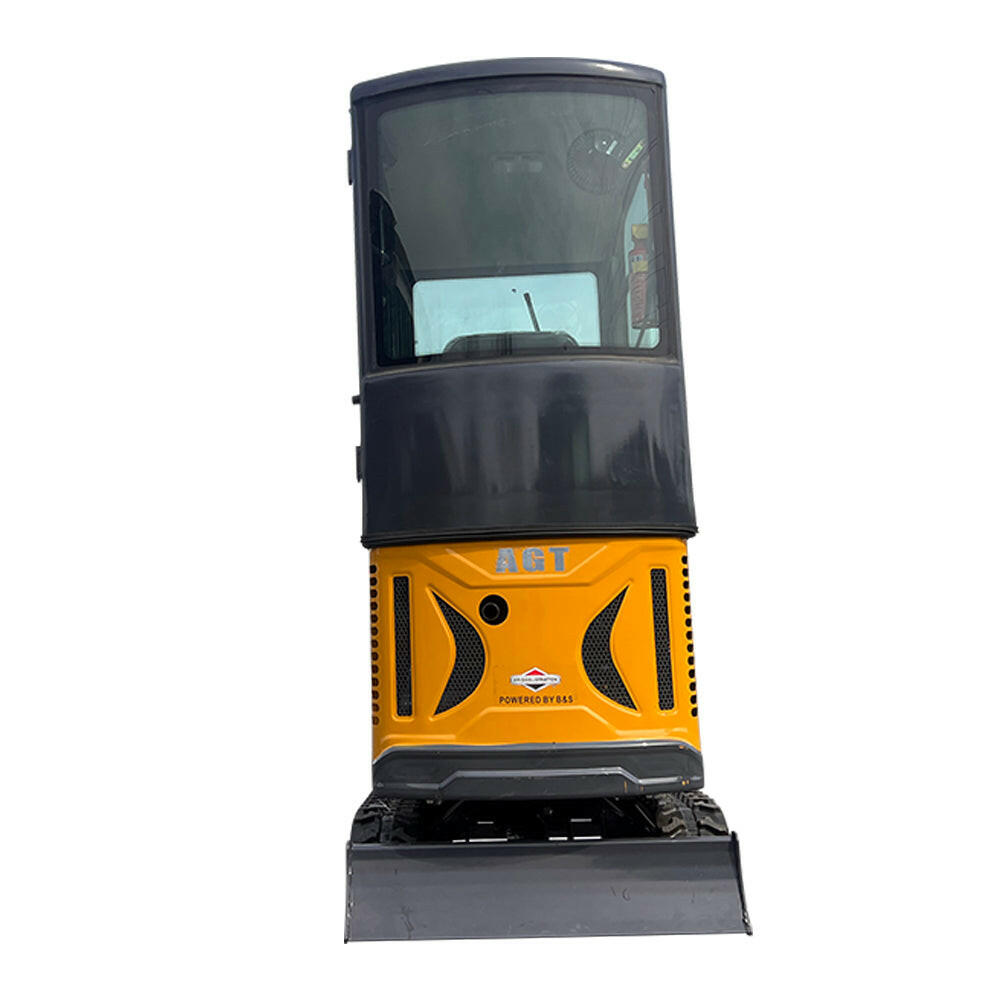

1 Ton Mini Excavator B&S 13.5HP Engine Enclosed Cab w/ Thumb | DM13-C
4.9/5 243 reviews
$4,777.49
Professional equipment built for demanding jobs. 1 Ton Mini Excavator B&S 13.5HP Engine Enclosed Cab w/ Thumb | DM13-C The DM13-C is a compact and versatile 1.3-ton mini excavator designed for various excavation tasks. Manual Technical Data: Engine:...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
1 Ton Mini Excavator B&S 13.5HP Engine Enclosed Cab w/ Thumb | DM13-C
The DM13-C is a compact and versatile 1.3-ton mini excavator designed for various excavation tasks.
Manual
Technical Data:
Engine:
- Brand: Briggs & Stratton (B&S)
- Model: 13.5 HP
- Power Output: 9.8 kW
- Maximum Speed: 3,600 RPM
- Cylinders: 1
- Cooling Method: Fan cooling
- Engine Oil Capacity: 1.1 liters
- Fuel Type: Gasoline
- Fuel Grade: 92#
- Theoretical Fuel Consumption: 0.5-1.2 liters per hour
Performance:
- Operating Weight: 2,150 lbs (975 kg)
- Maximum Digging Depth: 1,650 mm
- Maximum Digging Height: 2,400 mm
- Maximum Digging Radius: 3,080 mm
- Maximum Climbing Ability: 30°
Hydraulic System:
- Main Pump Type/Model: Gear pump/06
- Main Pump Brand: Tianjin Xingzou
- Rated Set Pressure: 16 MPa
- Maximum Flow Rate of Main Pump: 21.6 liters per minute
- Multi-way Valve: 8 multi-way valves
- Multi-way Valve Brand: Bei Fang
Dimensions:
- Overall Length: 2,738 mm
- Overall Width: 935 mm
- Overall Height: 2,209 mm
- Bulldozer Width/Height: 907 mm / 210 mm
Undercarriage:
- Track Type: 7-inch rubber tracks
Additional Features:
- Cabin: Enclosed cab (no air conditioning)
- Boom: Articulating/swing boom with a 30° angle
- Attachments: Hydraulic thumb installed, 13-inch digging bucket, push blade
- Auxiliary Hydraulics: Yes
Specific Data:
| Basic Performance Parameters |
Working Weight (kg) | 940 |
| Bucket Capacity (m³) | 0.03 | |
| Travel Speed Low/High Speed (km/h) | 0-0.2 | |
| Climbing Ability (%) | 30 | |
| Maximum Digging Height (mm) | 2,795 | |
| Maximum Unloading Height (mm) | 1,863 | |
| Maximum Digging Depth (mm) | 1,684 | |
| Max. Digging Radius (mm) | 3,112 | |
| Side Swing | √ | |
| Side Swing Angle (L/R) | 30° | |
| Undercarriage Expansion | × | |
| Body | Overall Length (mm) | 2,738 |
| Overall Width (mm) | 935 | |
| Overall Height (mm) | 2,209 | |
| Bulldozer Width/Height | 907/210 | |
| Engine | Engine Brand | B&S |
| Engine Model | 13.5HP | |
| Max. Power (Kw) | 9.8 | |
| Max. Speed (rpm) | 3,600 | |
| Cylinders | 1 | |
| Cooling Method | Fan Cooling | |
| Engine Oil Change Quantity (L) | 1.1 | |
| Fuel Type | Gasoline | |
| Fuel Grade | 92# | |
| Theoretical Fuel Consumption (L/h) | 0.5-1.2 | |
| Hydraulic system |
Main Pump Type/Model | Gear Pumps/06 |
| Main Pump Brand | (Tianjin Xingzou) | |
| Rated Set Pressure (Mpa) | 16 | |
| Maximum Flow Rate of Main Pump (L/min) | 21.6 | |
| Multi-way Valve | 8 Multi-way Valves | |
| Brand of Multi-way Valve | (Bei Fang) | |
| Rated Set Pressure (Mpa) | 16 | |
| Hydraulic Linear Motor Type | BM6-310 | |
| Linear Motor Brand | (Li Yuan) | |
| Hydraulic Servo Motor Type | BM2-250 | |
| Excavator tracks | ▲-Rubber (Bandwidth*Pitch*Number of Sections) | 180*72*37 |
| Configuration | Cab | √ |
| Roof | × | |
| Handrail | × | |
| Thumb Clip | √ | |
| Counterweight | × | |
| Tensioning Forms | Mechanical Tensioning | |
| Air Conditioning | × | |
| Fuel tank | Fuel Tank (L) | 6.6 |
| Hydraulic Oil Tan (L) | 18 |
