1 Ton Mini Excavator B&S 13.5HP Engine w/ Hydraulic Thumb | AGT-DM12-C
4.9/5 243 reviews
$4,327.39
Professional equipment built for demanding jobs. 1 Ton Mini Excavator B&S 13.5HP Engine w/ Hydraulic Thumb | AGT-DM12-C With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.

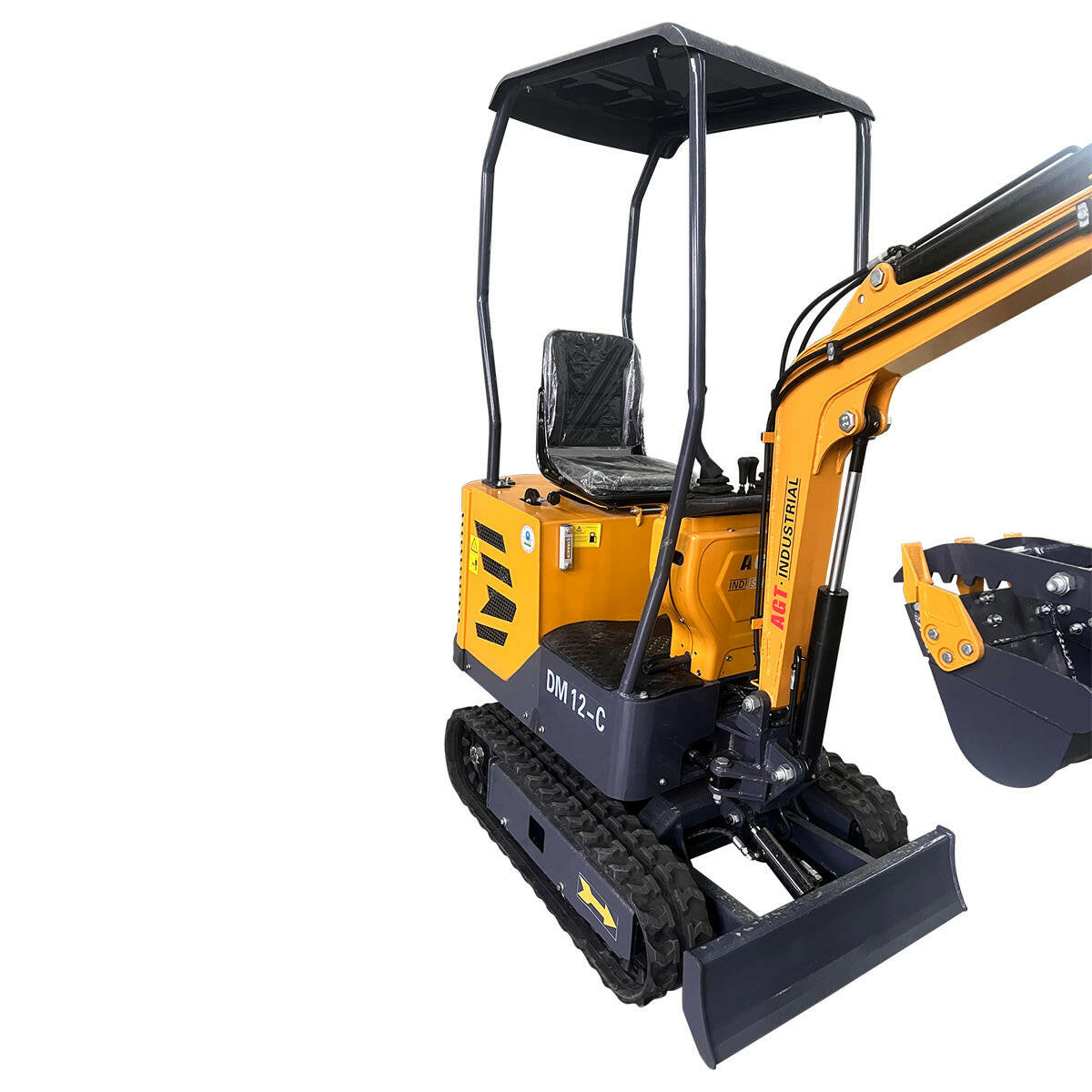

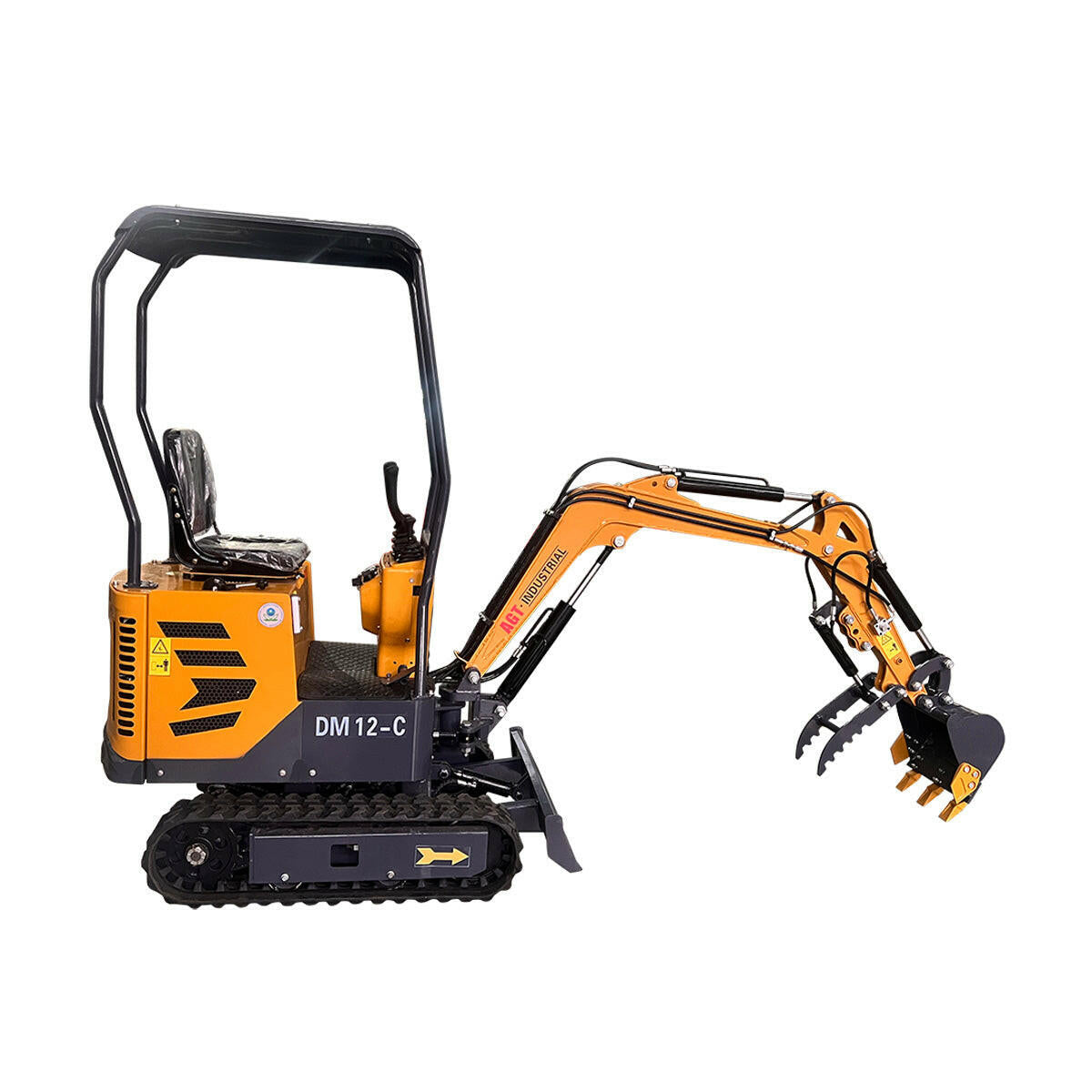

1 Ton Mini Excavator B&S 13.5HP Engine w/ Hydraulic Thumb | AGT-DM12-C

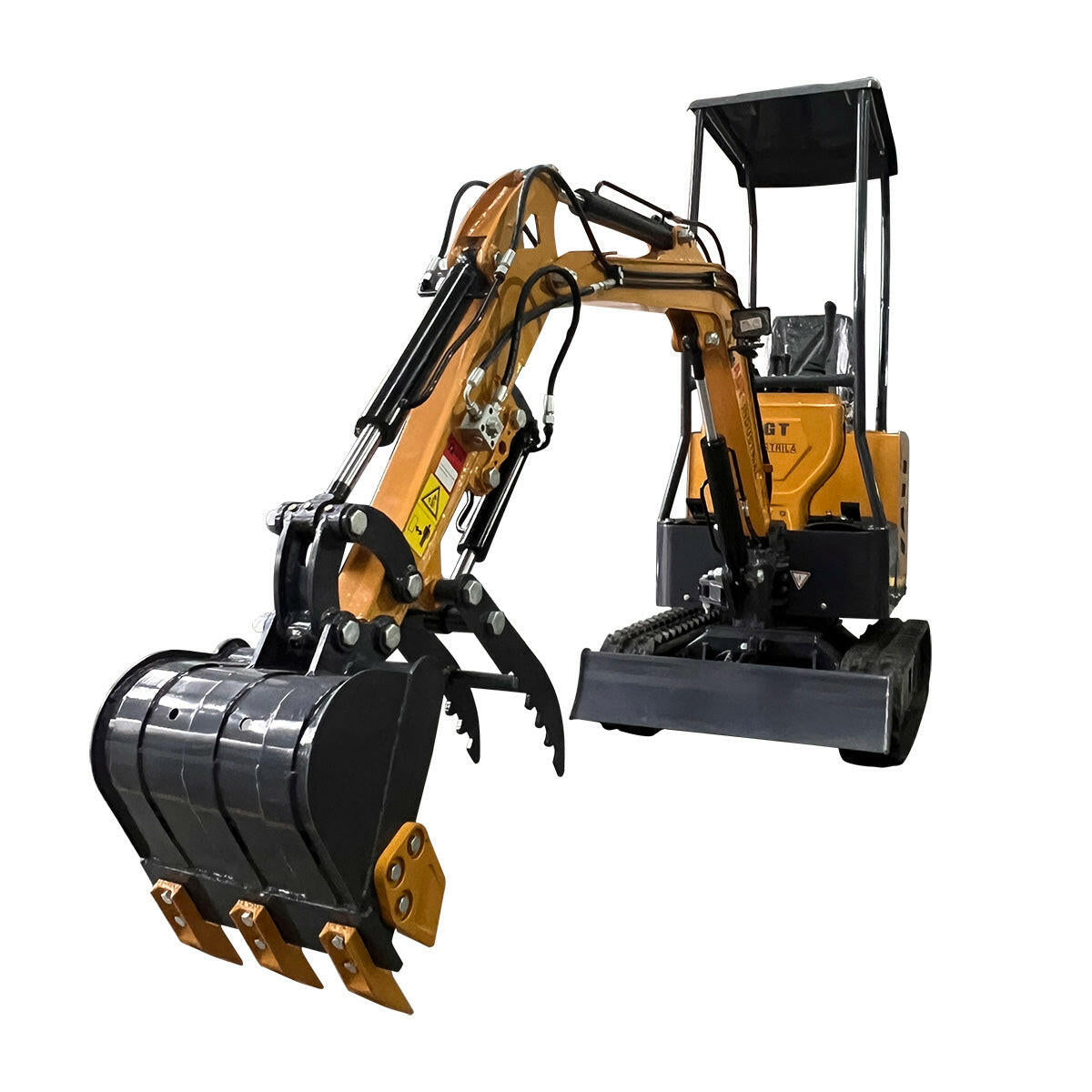

With a compact design, 1-ton operating weight, and a maximum digging depth of 5.79 feet, AGT's lightweight yet powerful mini excavator is ideal for working in narrow driveways, alleys, backyards, gardens, and other tight spaces. Equipped with a hydraulic thumb and side swing boom.
In-action Video
AGT-DM12-C Maintenance Instructions
AGT-DM12-C Manual
Technical Data:
- Operation Weight: 0.959 Ton
- Engine: B&S
-
Max Angle: 30 Degree
Dimension
- Operating Weight: 0.9 Ton (1,985 lbs)
- Overall Length: 2,260 mm (89 in)
- Overall Width: 958 mm (37.7 in)
- Overall Height: 2,200 mm (86.5 in)
- Track Size: 180*72*37 (Width*Pitch Length*Link)
Working Range
- Max Digging Depth: 1,764 mm (69.5 in)
- Max Digging Height: 2,670 mm (105 in)
- Max Dumping Height: 1,900 mm (75 in)
- Max Reach at Ground: 3,400 mm (134 in)
- Dozer Blade Width: 910 mm (36 in)
- Dozer Blade Height: 200 mm (8 in)

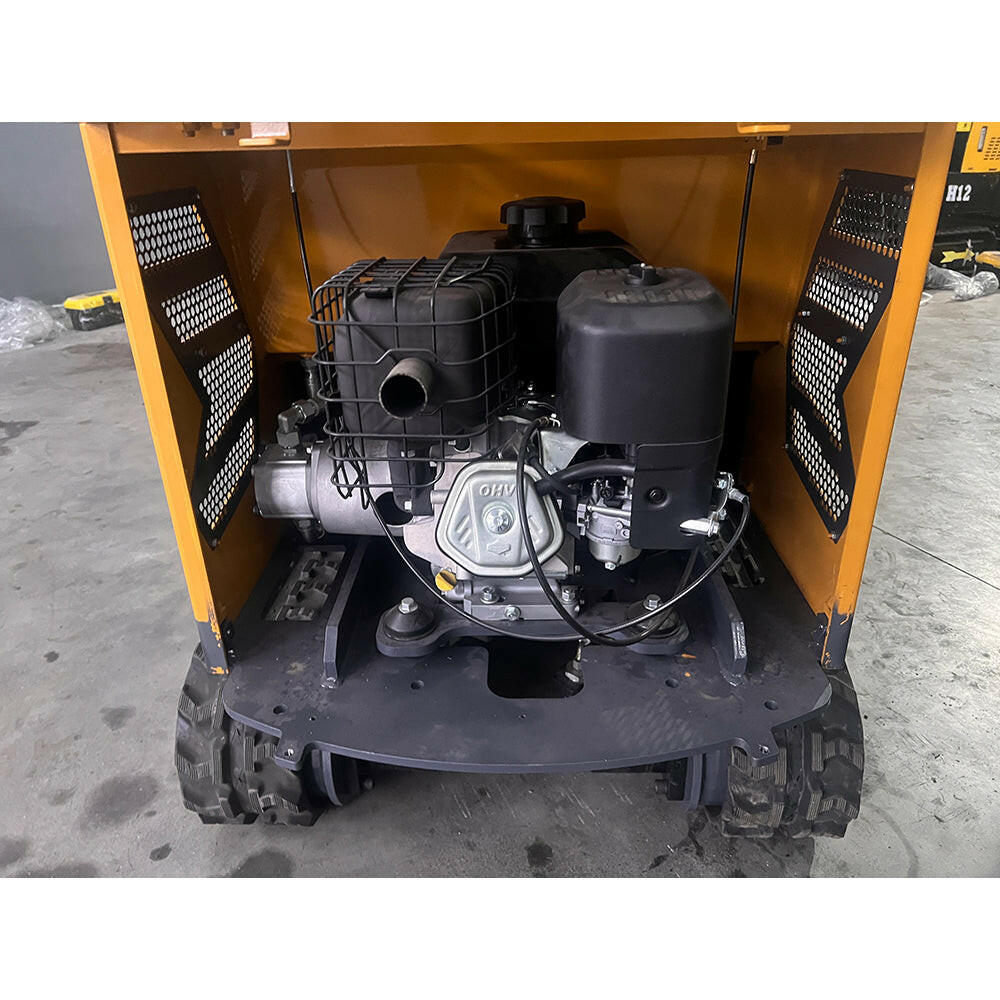

Engine
- Engine Brand: B&S
- Fuel Type: Gasoline
- Model: XR
- Rated Power: 10.5 kW (13.5 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
- Fuel Consumption: 0.5-1.2 L/hr
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2300 PSI)
- Hydraulic Tank Capacity: 18 L (4.8 gal)
- Traveling Hydraulic Motor Type: BM6-310
- Rotary Hydraulic Motor Type: BM2-250
- Battery: 12V, 45–60Ah
Features

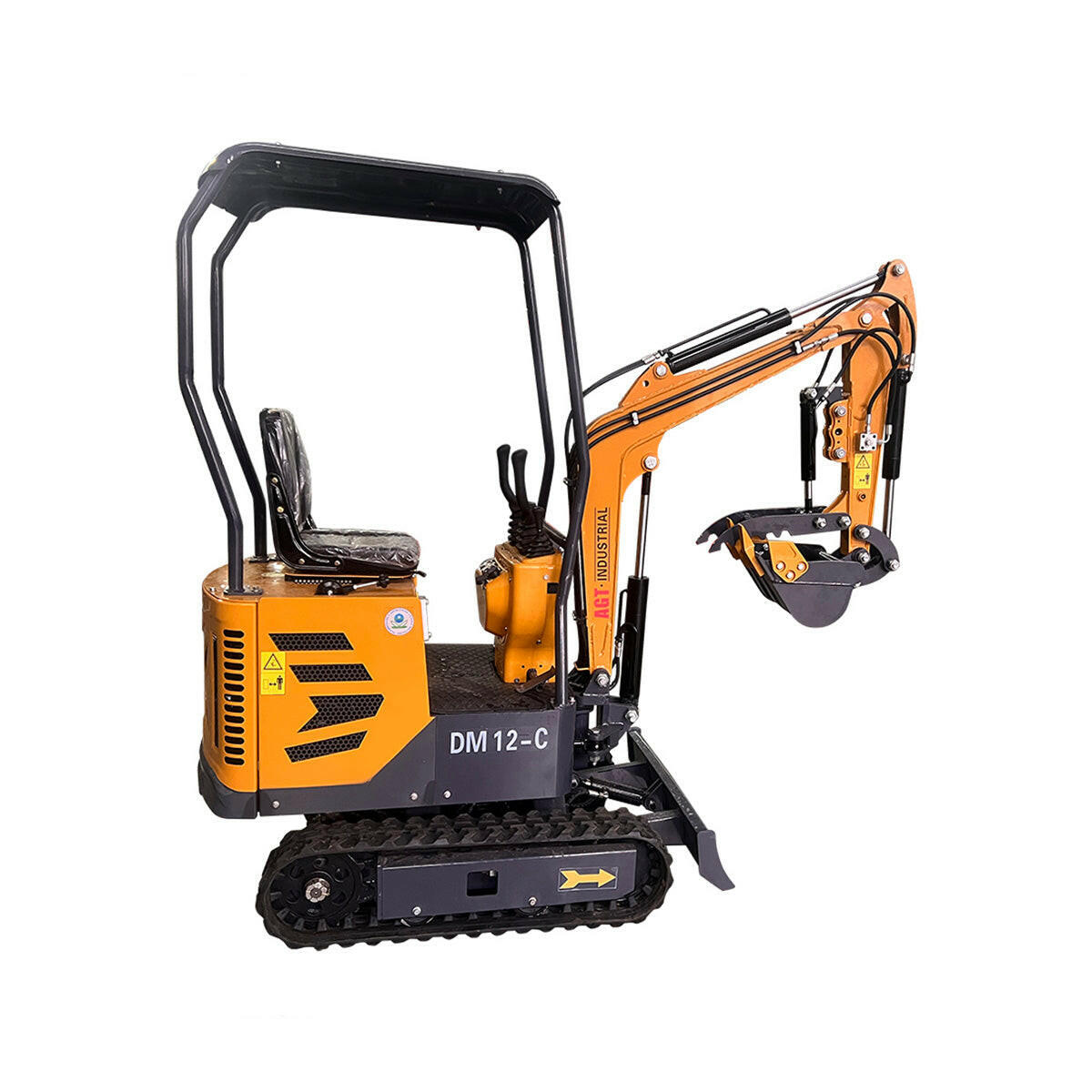

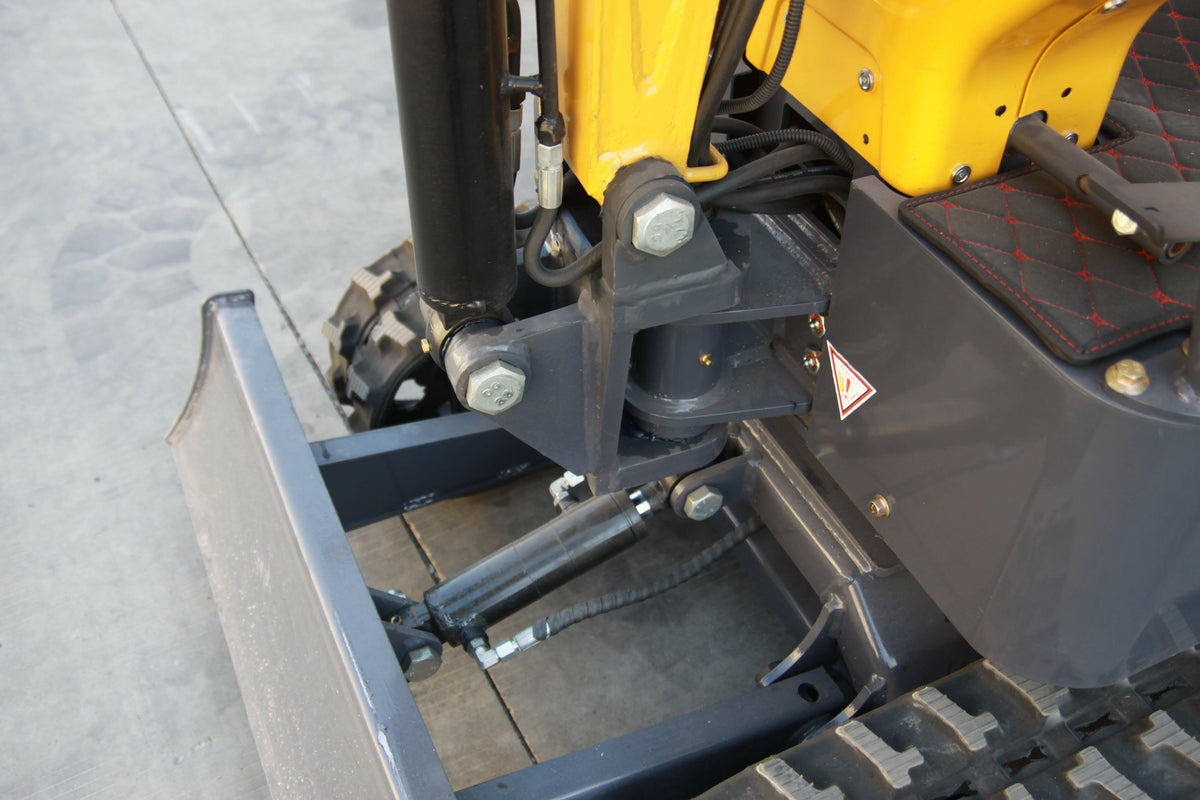

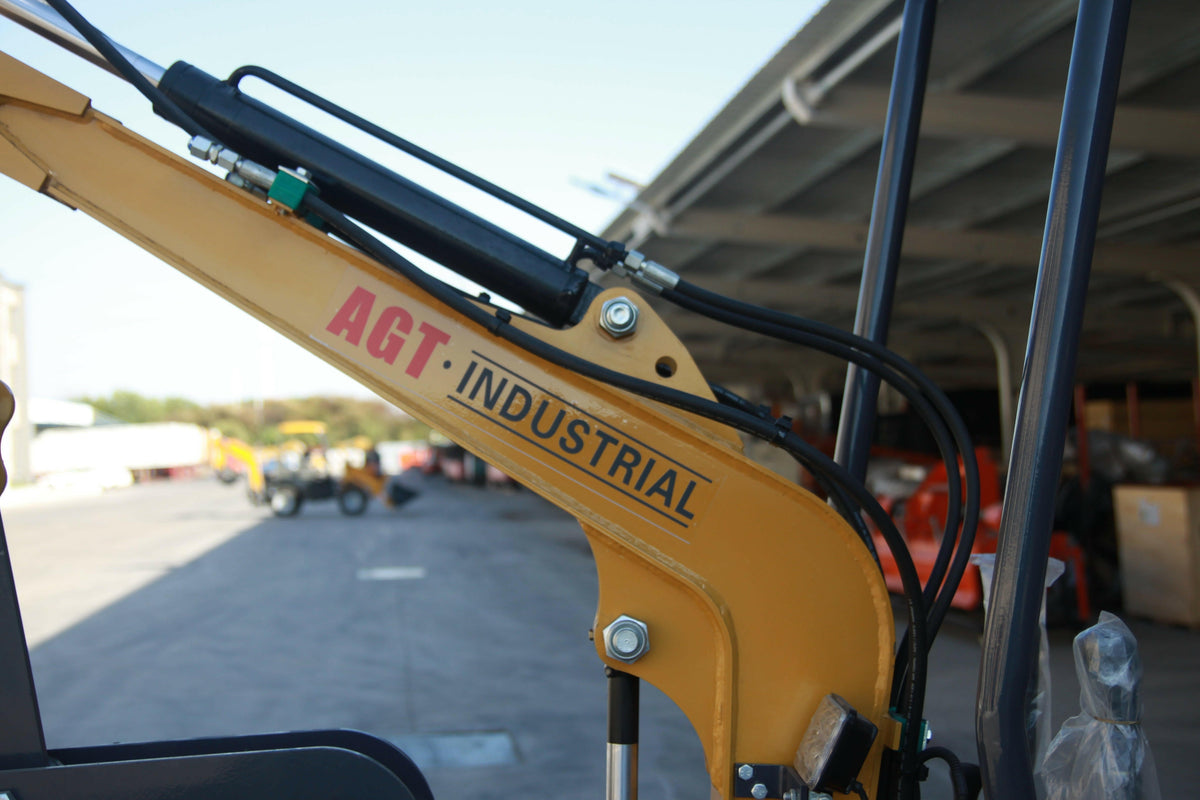

- Swing Boom

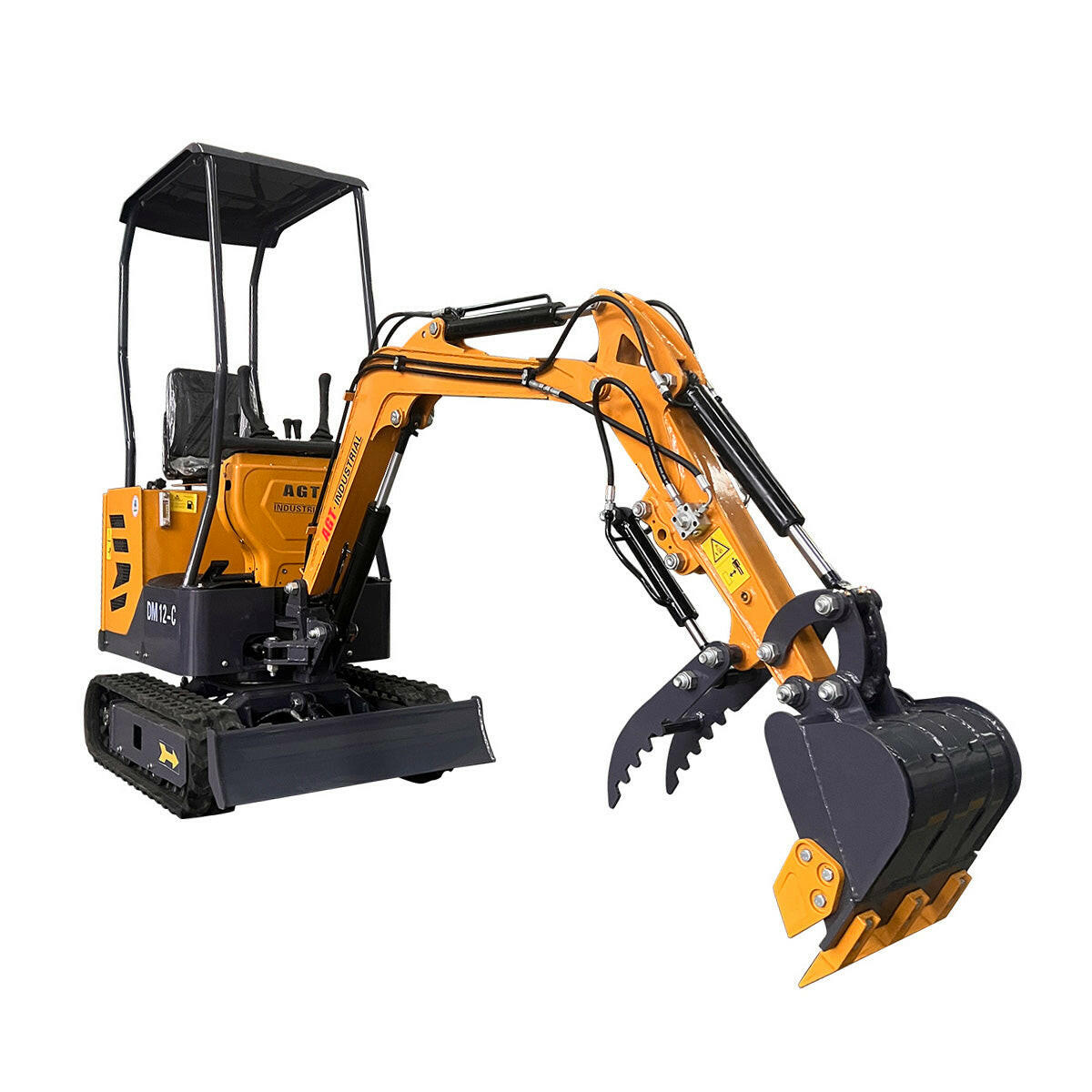

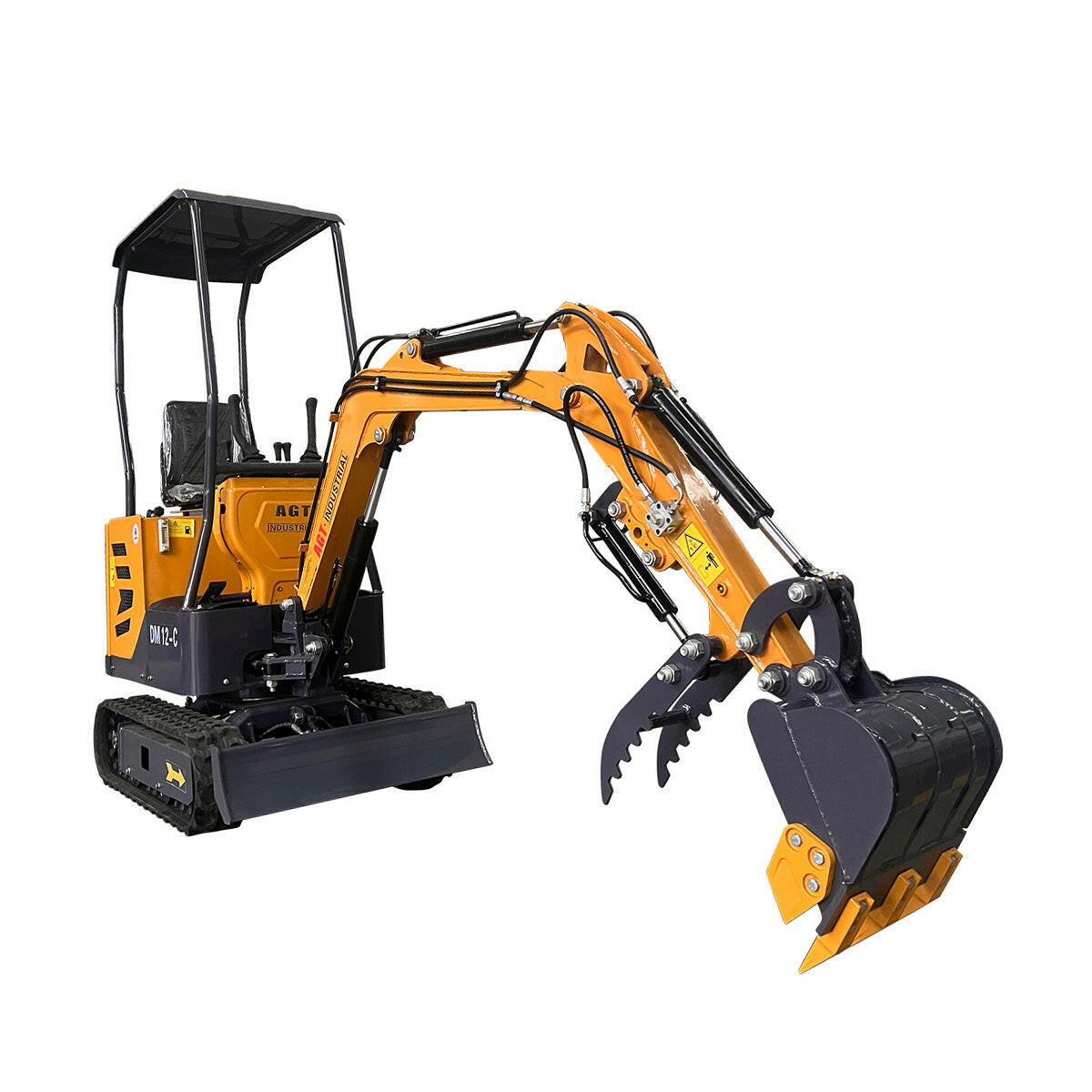

- Hydraulic Thumb
- LED Worklight

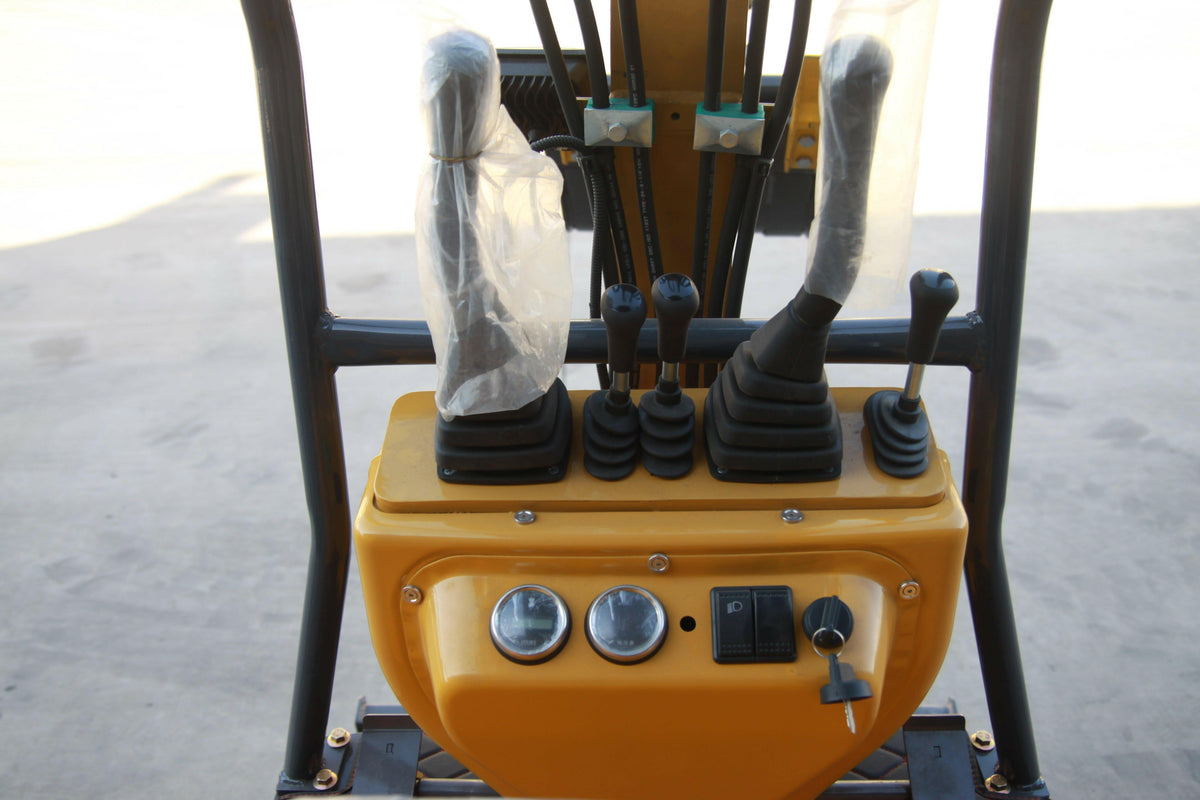

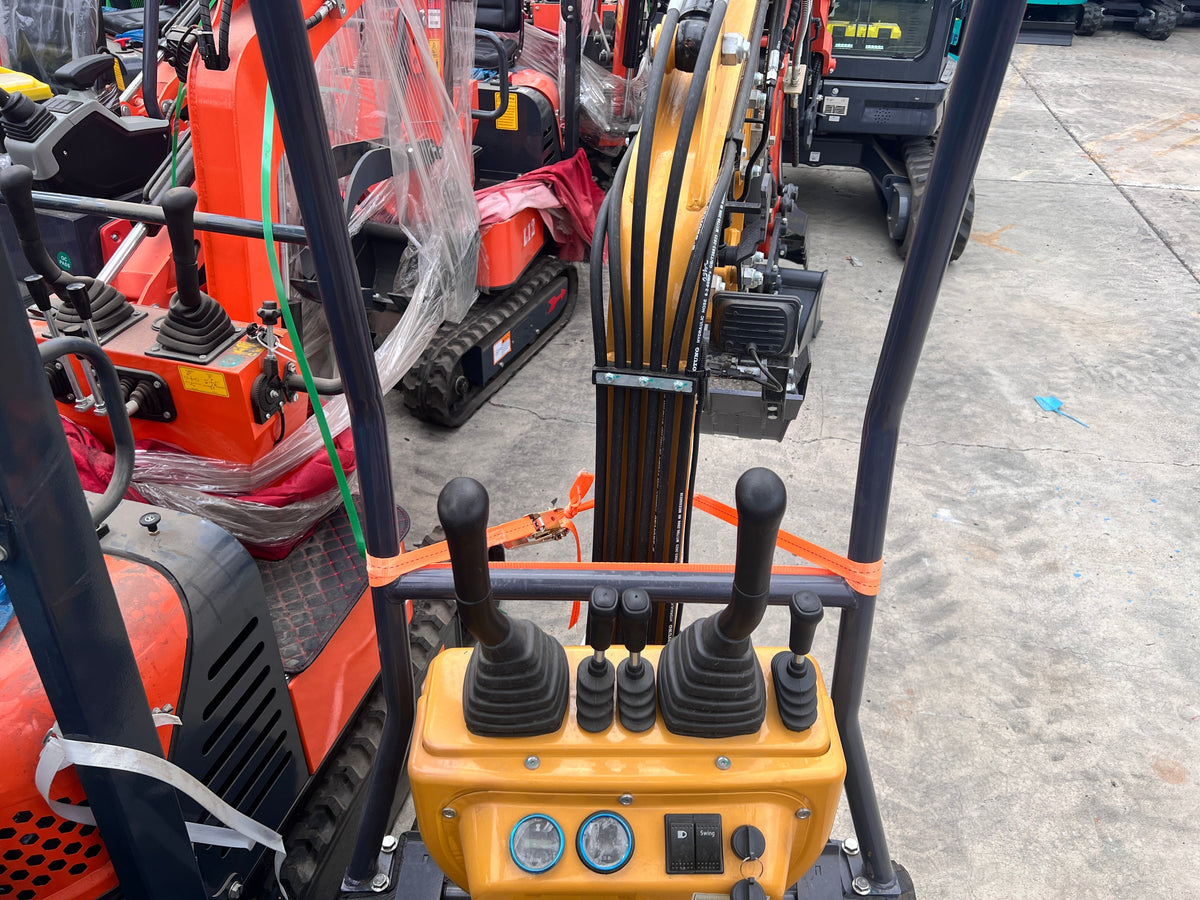

- Foot Pedal
Need help choosing the right configuration? HyperLifts can help review your application, delivery requirements, and equipment needs before reservation.
