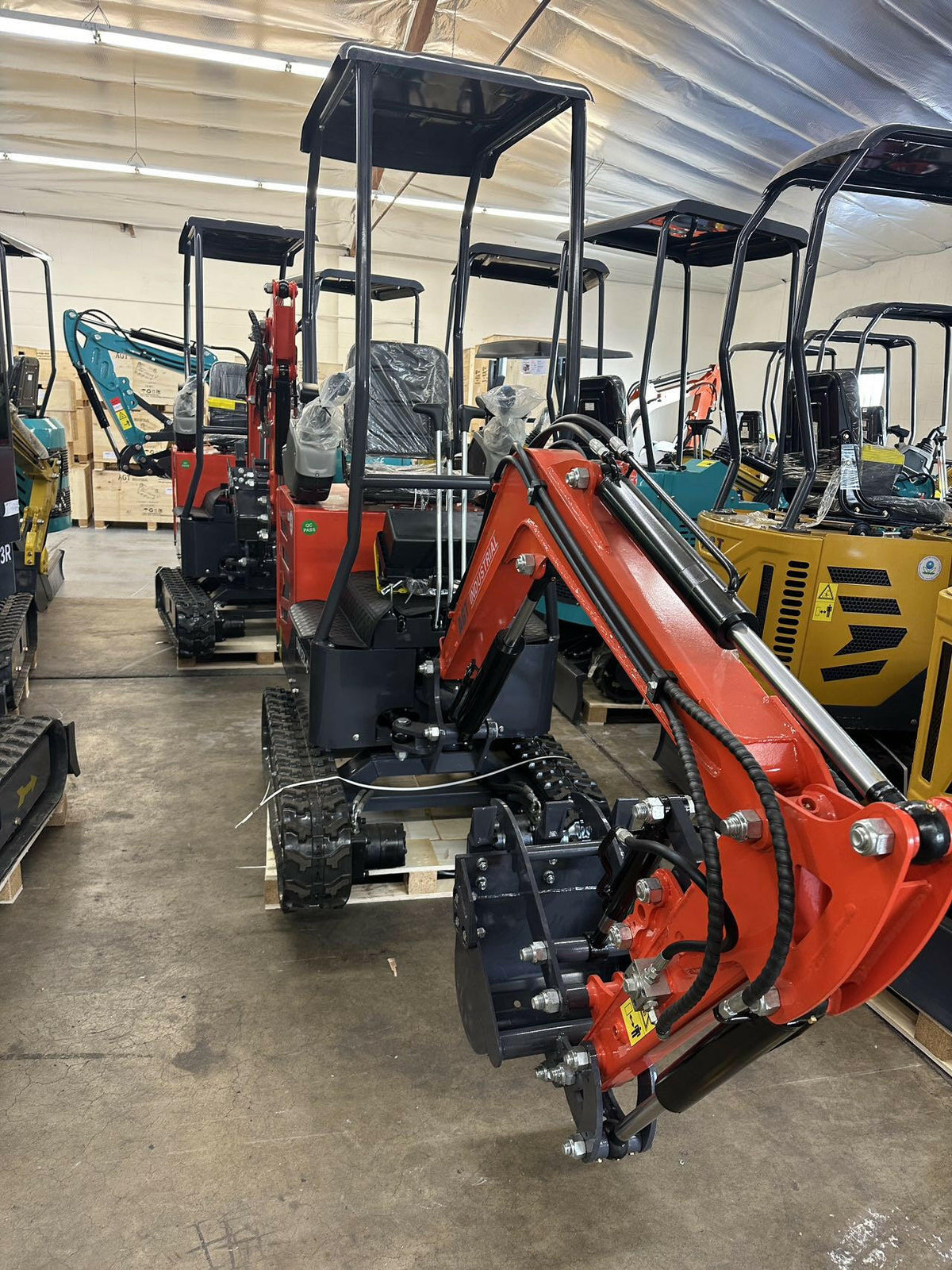

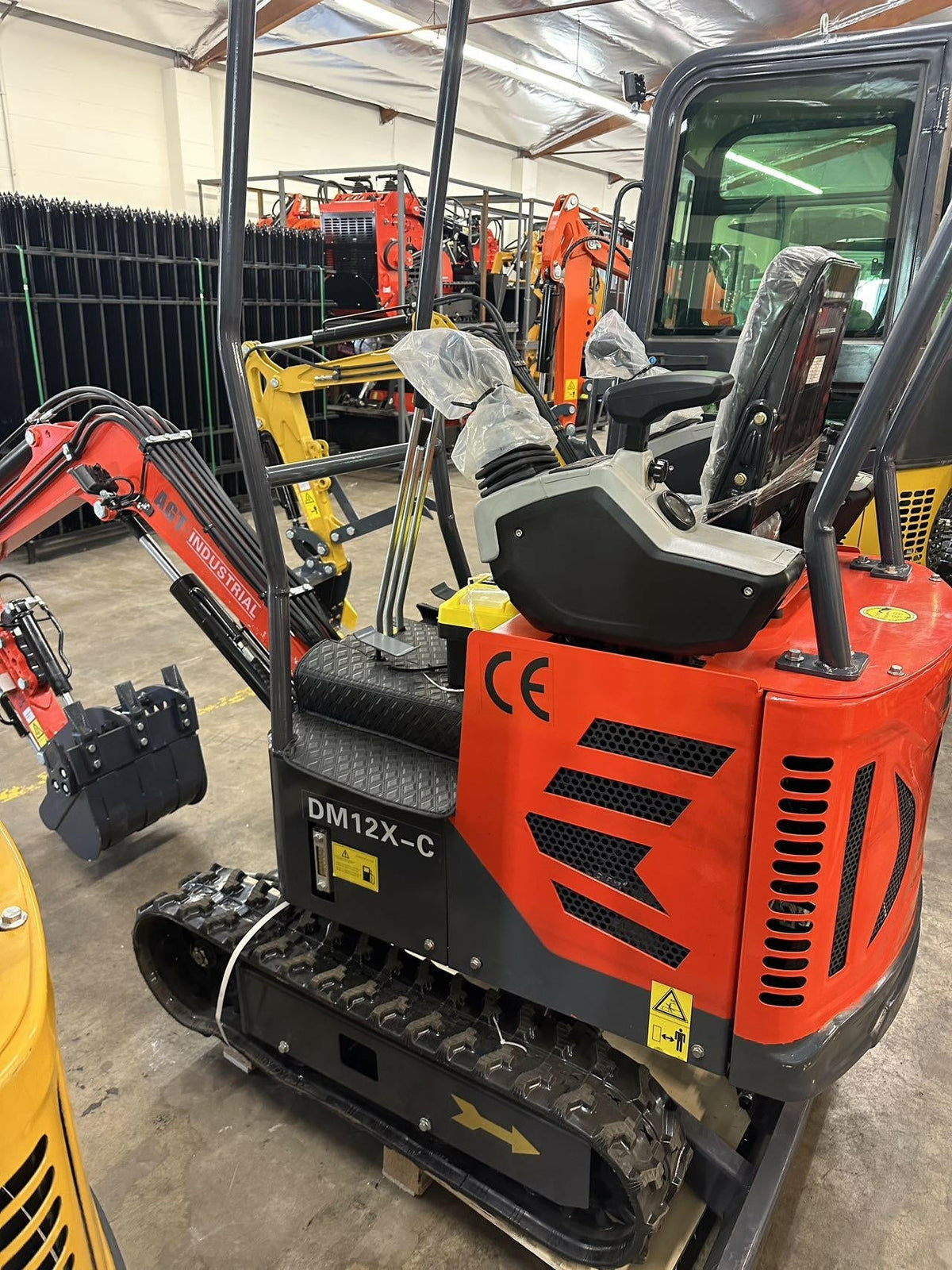

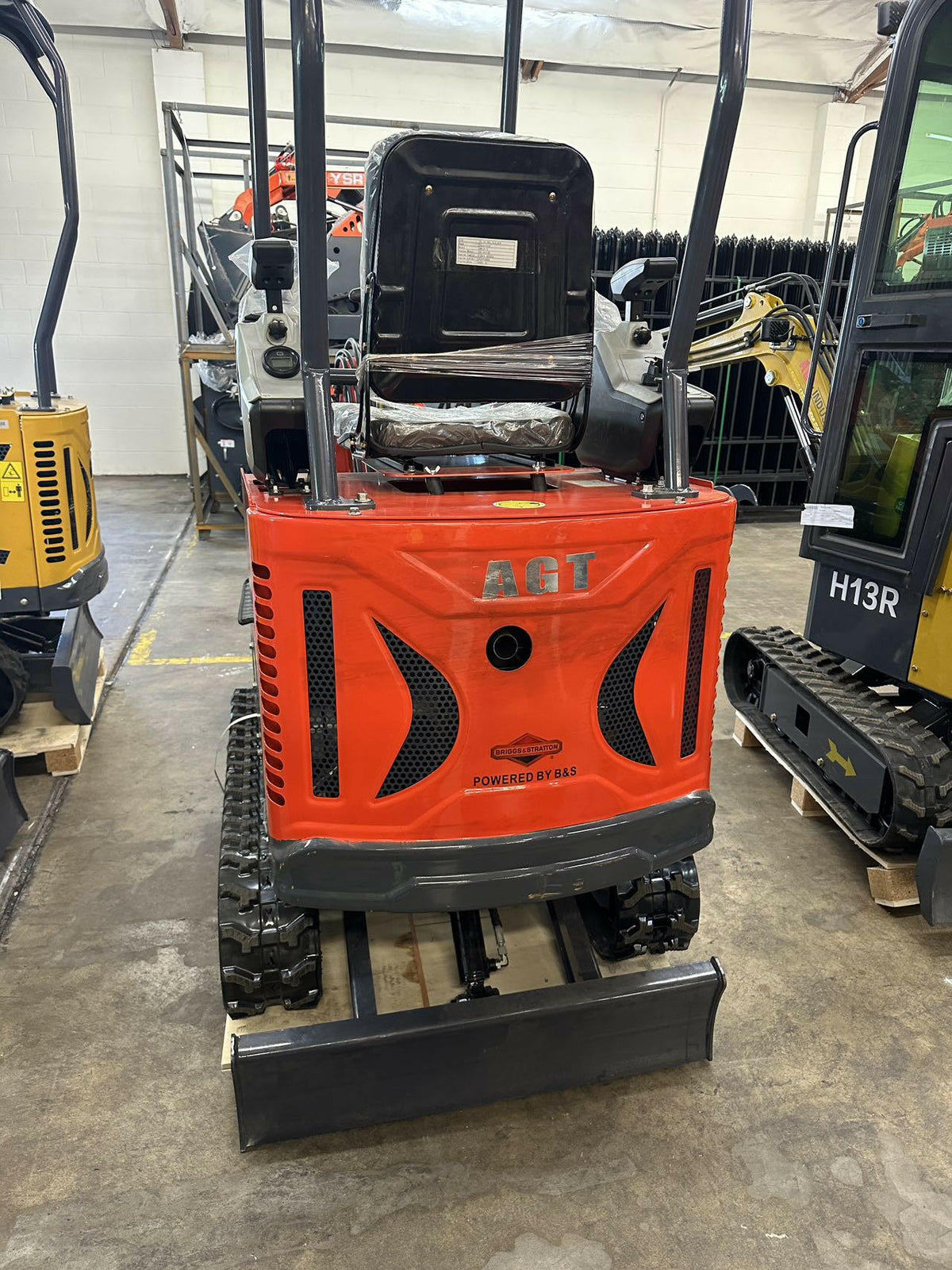

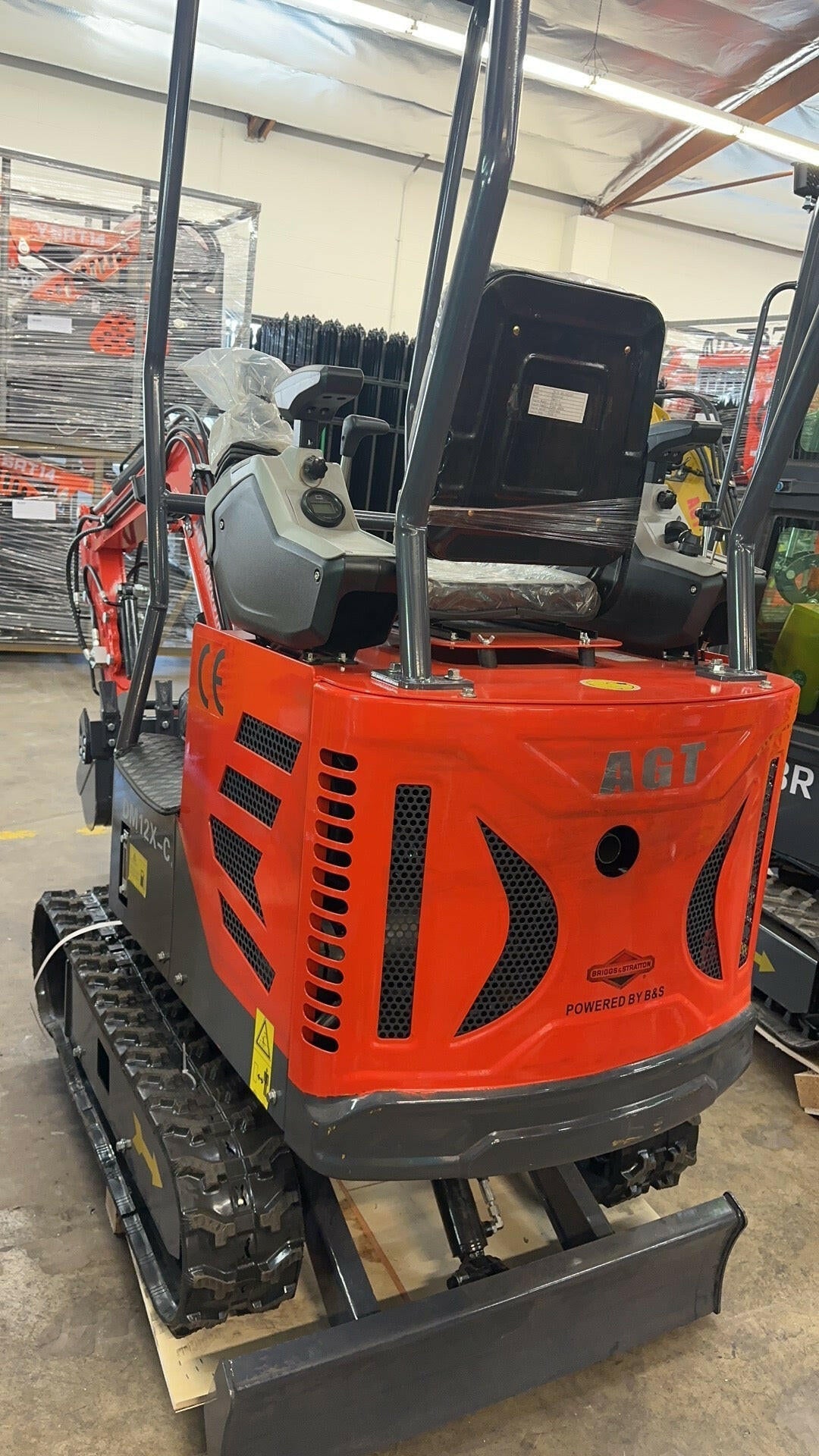

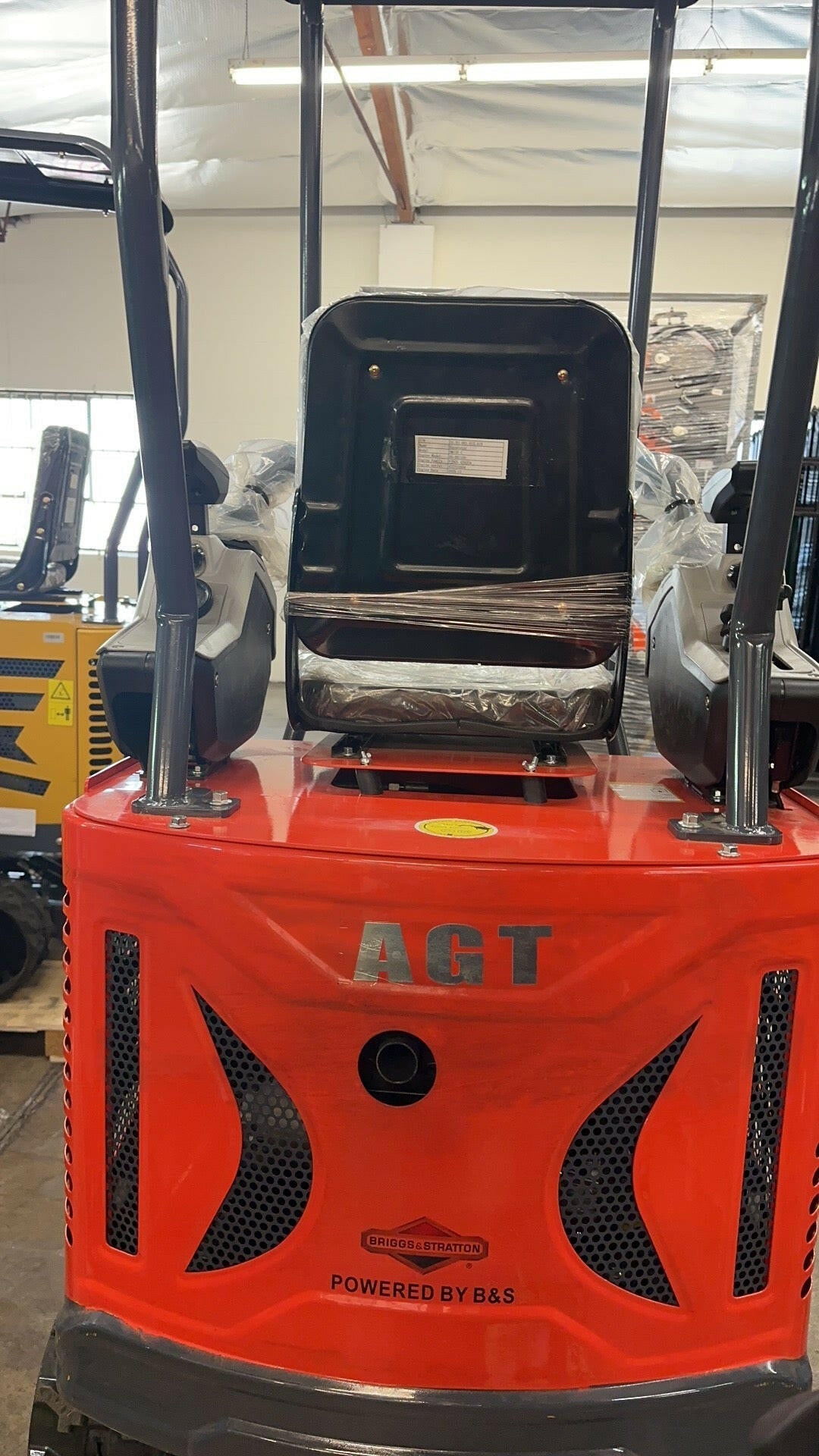

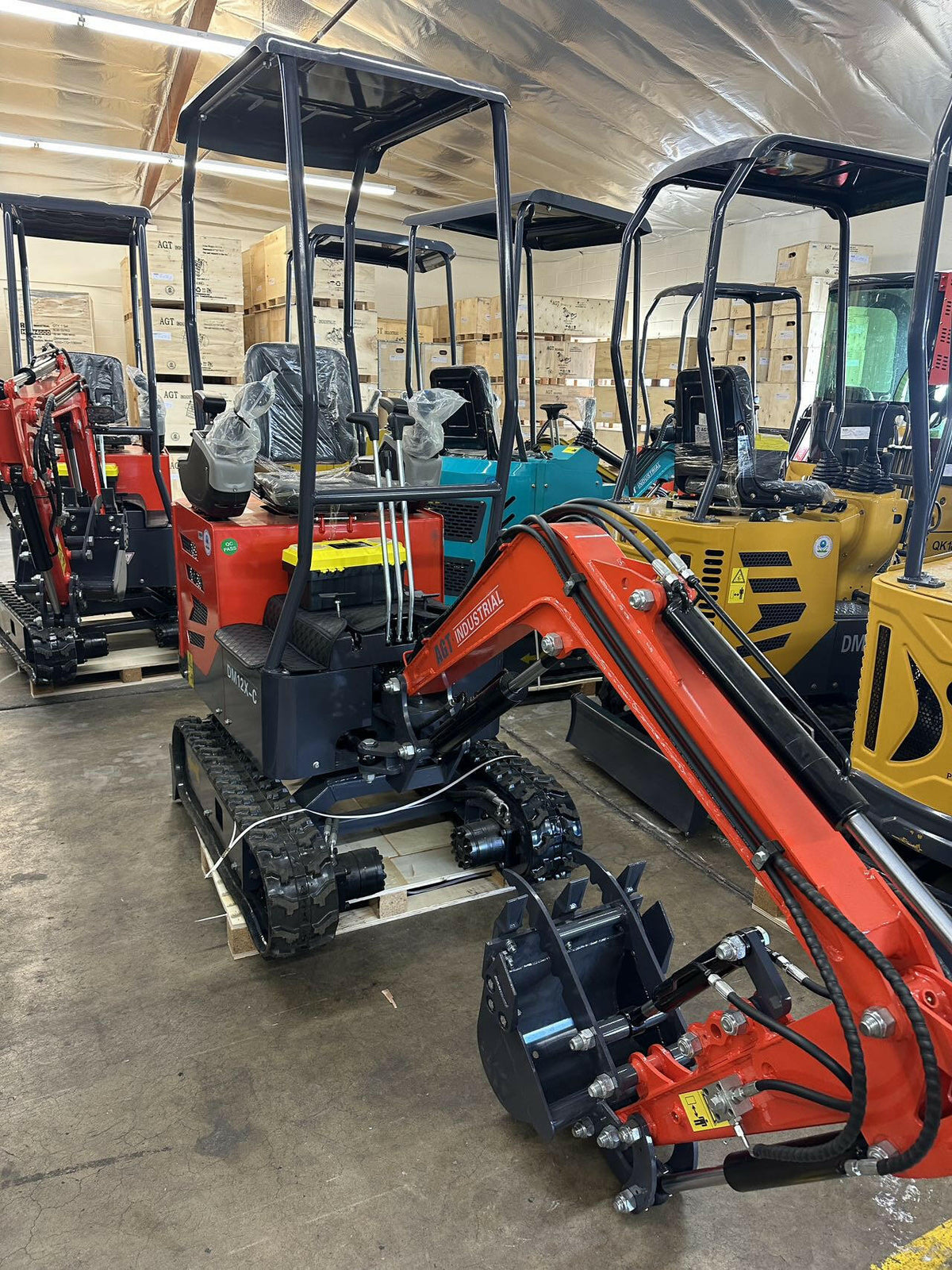

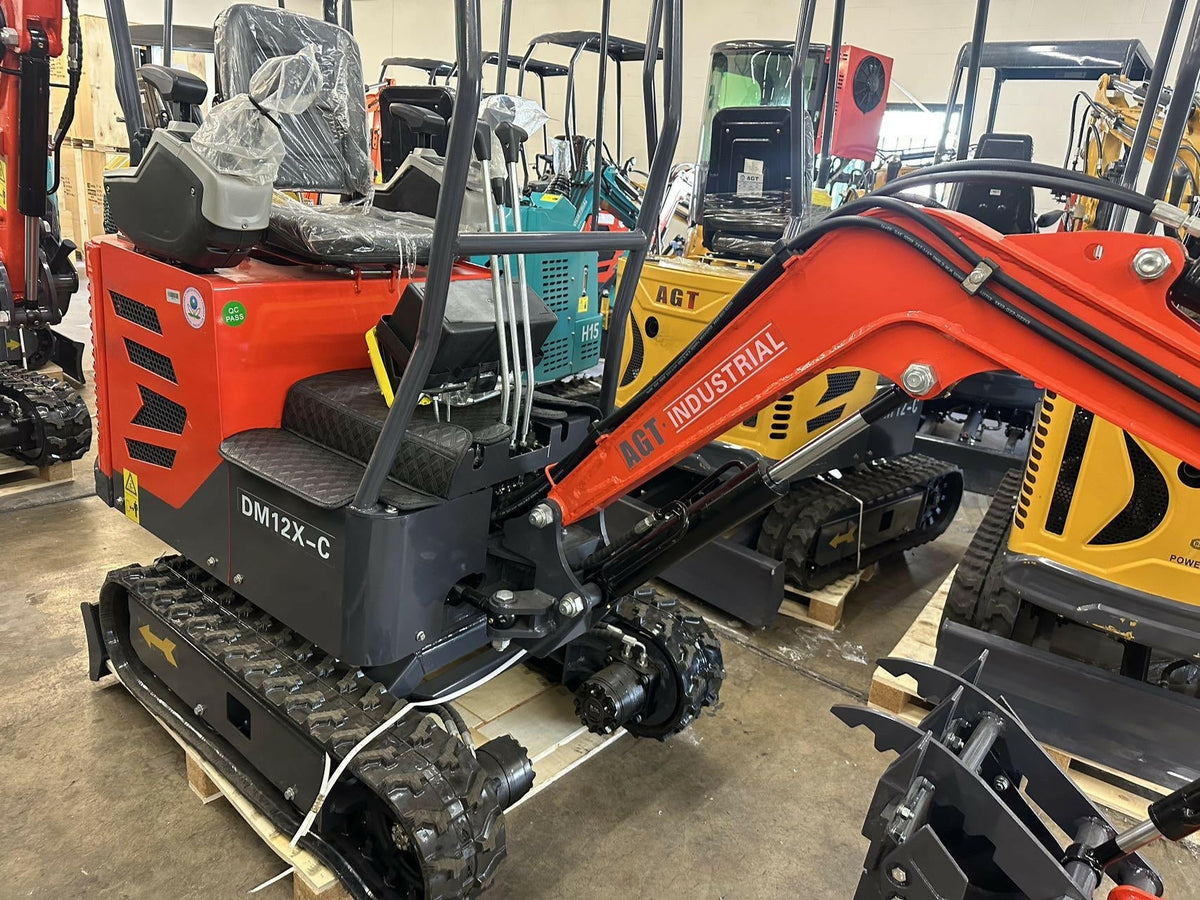

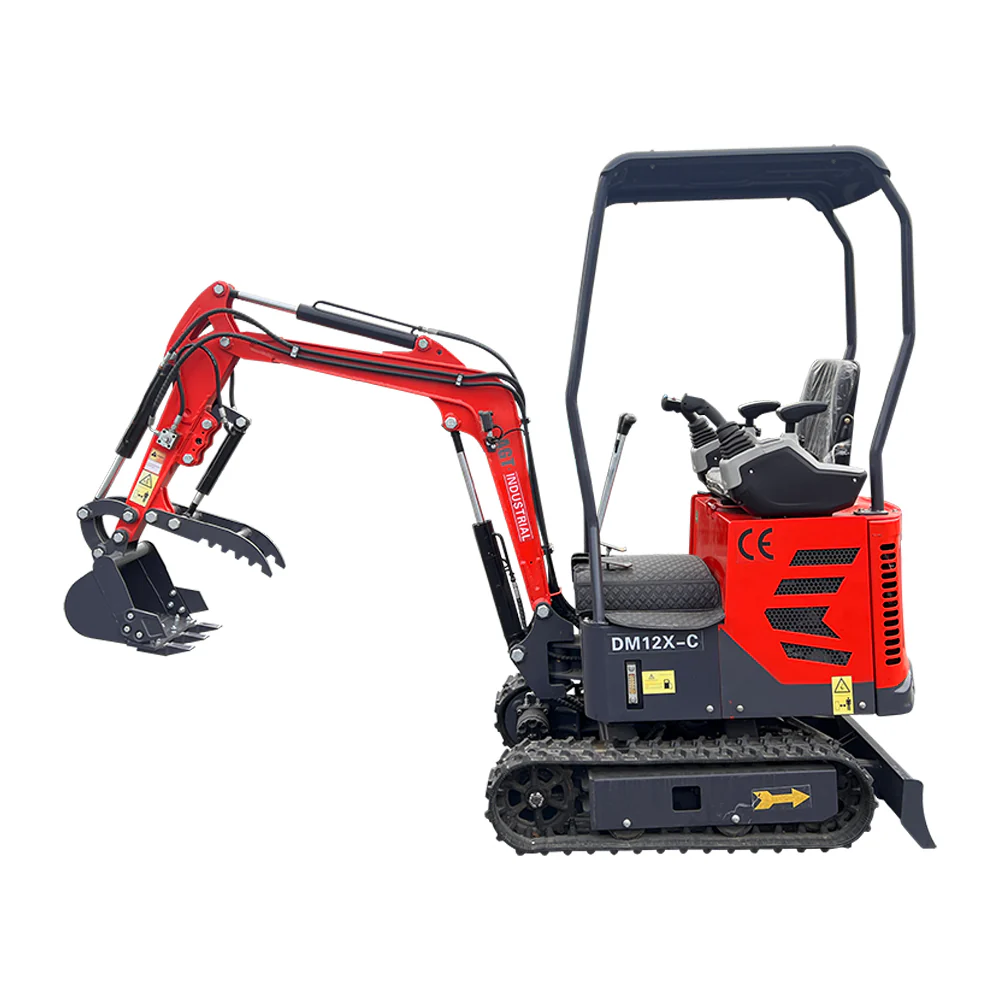

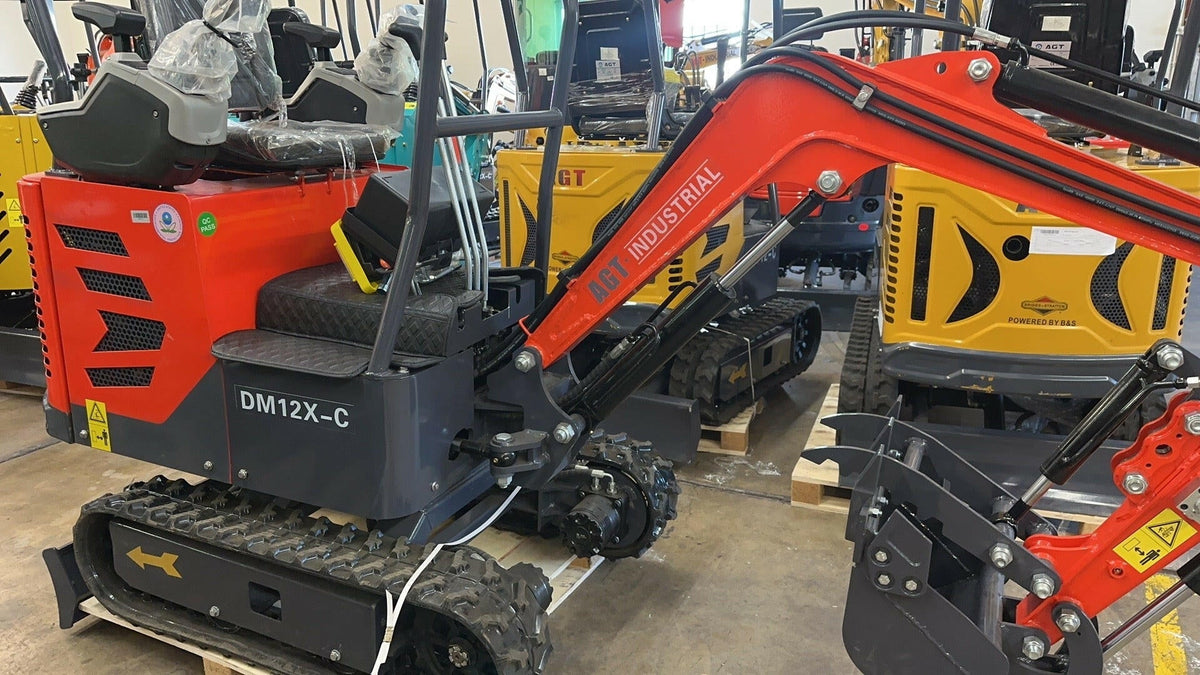

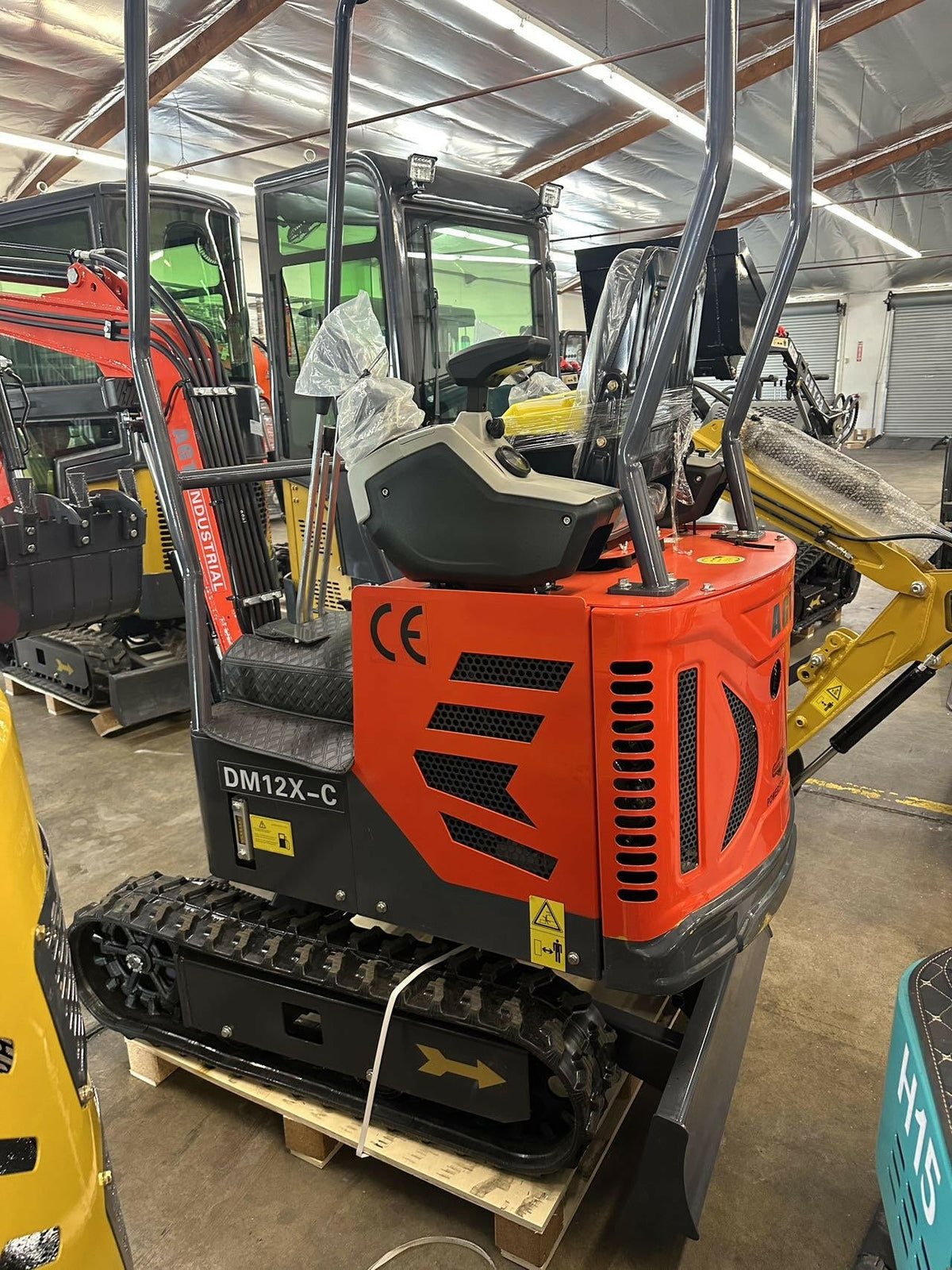

1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb | DM12X-C
4.9/5 243 reviews
$5,550.99
Professional equipment built for demanding jobs. 1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb | DM12X-C The DM 12X-C is a cutting-edge mini excavator with upgraded components to eliminate overheating issues. It's...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
1 Ton, Upgraded Mini Excavator w/ Pilot Control & Swing Boom & Hydraulic Thumb | DM12X-C
The DM 12X-C is a cutting-edge mini excavator with upgraded components to eliminate overheating issues. It's an upgrade from our QH12 and H12 with a side swing boom, pilot controls and hydraulic thumb. Enjoy easy maintenance with convenient back bay engine access.
In Action Video
Exploded View Parts List
Technical Data:
- Operation Weight: 1.1 Ton
- Engine: B&S
- Max Angle: 30 Degree
Dimension
- Operating Weight: 1.1 Ton (2,425 lbs)
- Overall Length: 2,260 mm (89 in)
- Overall Width: 965 mm (38 in)
- Overall Height: 2,210 mm (87 in)
- Track Size: 180*72*37 (Width*Pitch Length*Links)
Working Range
- Max Digging Depth: 1,753 mm (69 in)
- Max Digging Height: 2,667 mm (105 in)
- Max Dumping Height: 1,905 mm (75 in)
- Max Reach at Ground: 3,073 mm (121 in)
- Dozer Blade Width: 900 mm (35 in)
- Dozer Blade Height: 200 mm (8 in)
Features

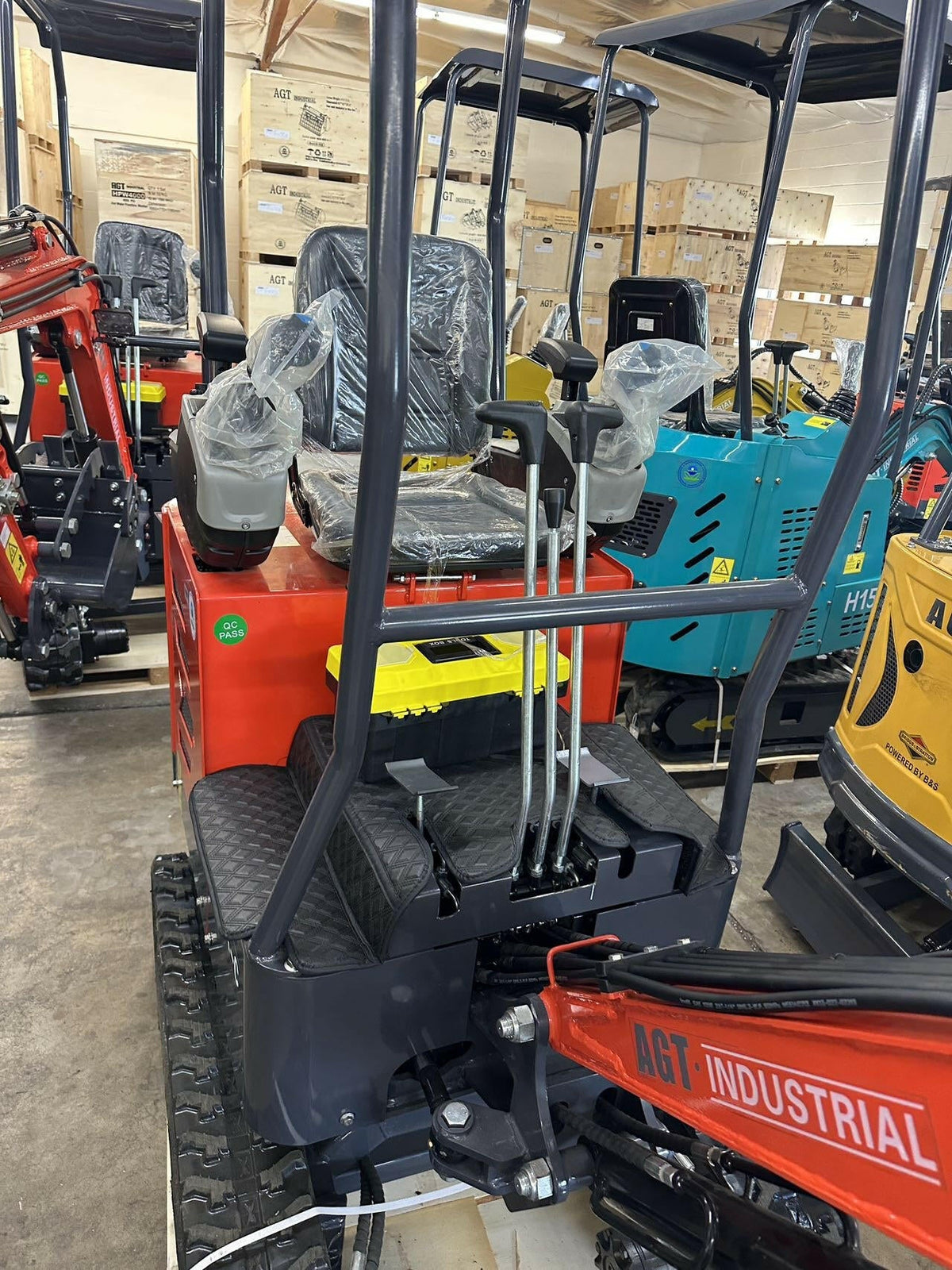

- Pilot Control
- Swing Boom
- Hydraulic Thumb
Engine
- Engine Brand: B&S
- Fuel Type: Gasoline
- Model: XR
- Rated Power: 10 kW (13.3 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
- Fuel Consumption: 0.5 - 1.2 L/hr
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSI)
- Hydraulic Tank Capacity: 18 L (4.75 gal)
- Travel Hydraulic Motor Type: BM6-310
- Swing Hydraulic Motor Type: BM2-250
