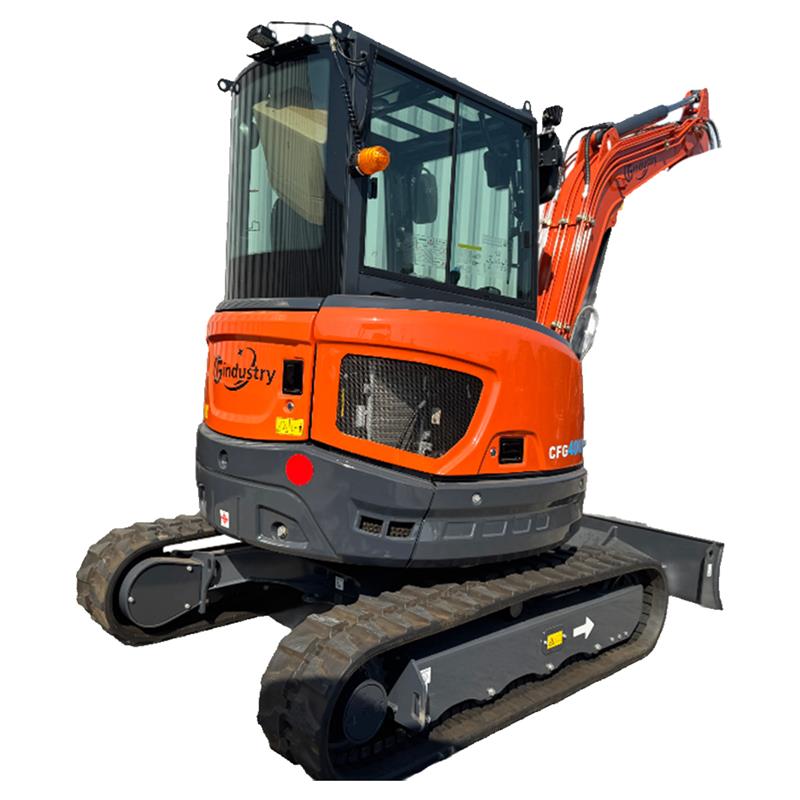

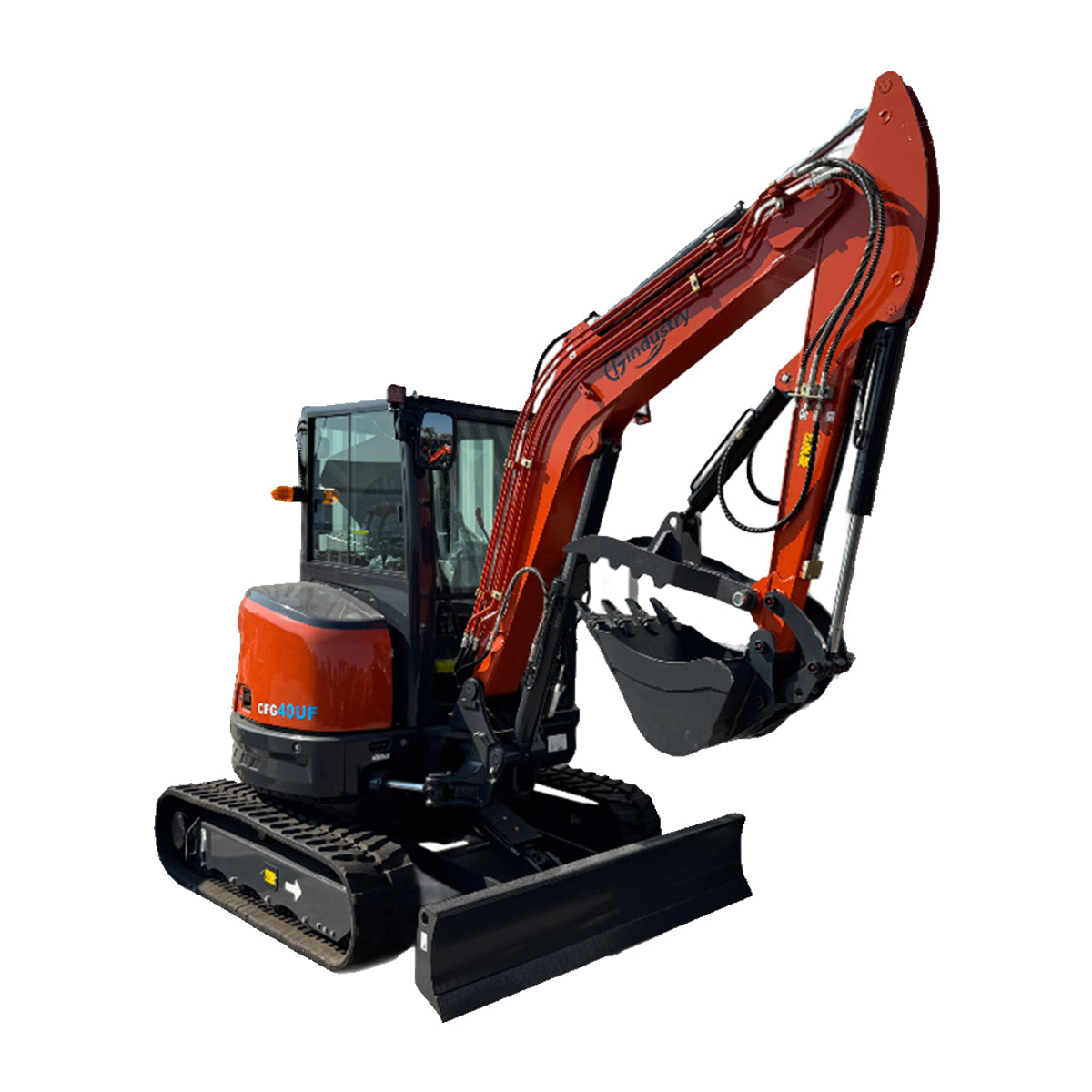

4 Ton Mini Excavator Kubota Diesel Engine w/ A/C & Thumb | CFG-40UF
4.9/5 243 reviews
$22,213.09
Professional equipment built for demanding jobs. 4 Ton Mini Excavator Kubota Diesel Engine w/ A/C & Thumb | CFG-40UF This versatile excavator offers a cabin/canopy option and delivers exceptional performance with a Kubota D1703-E4B-SWD-1 engine, 0.11m³ bucket capacity,...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
4 Ton Mini Excavator Kubota Diesel Engine w/ A/C & Thumb | CFG-40UF

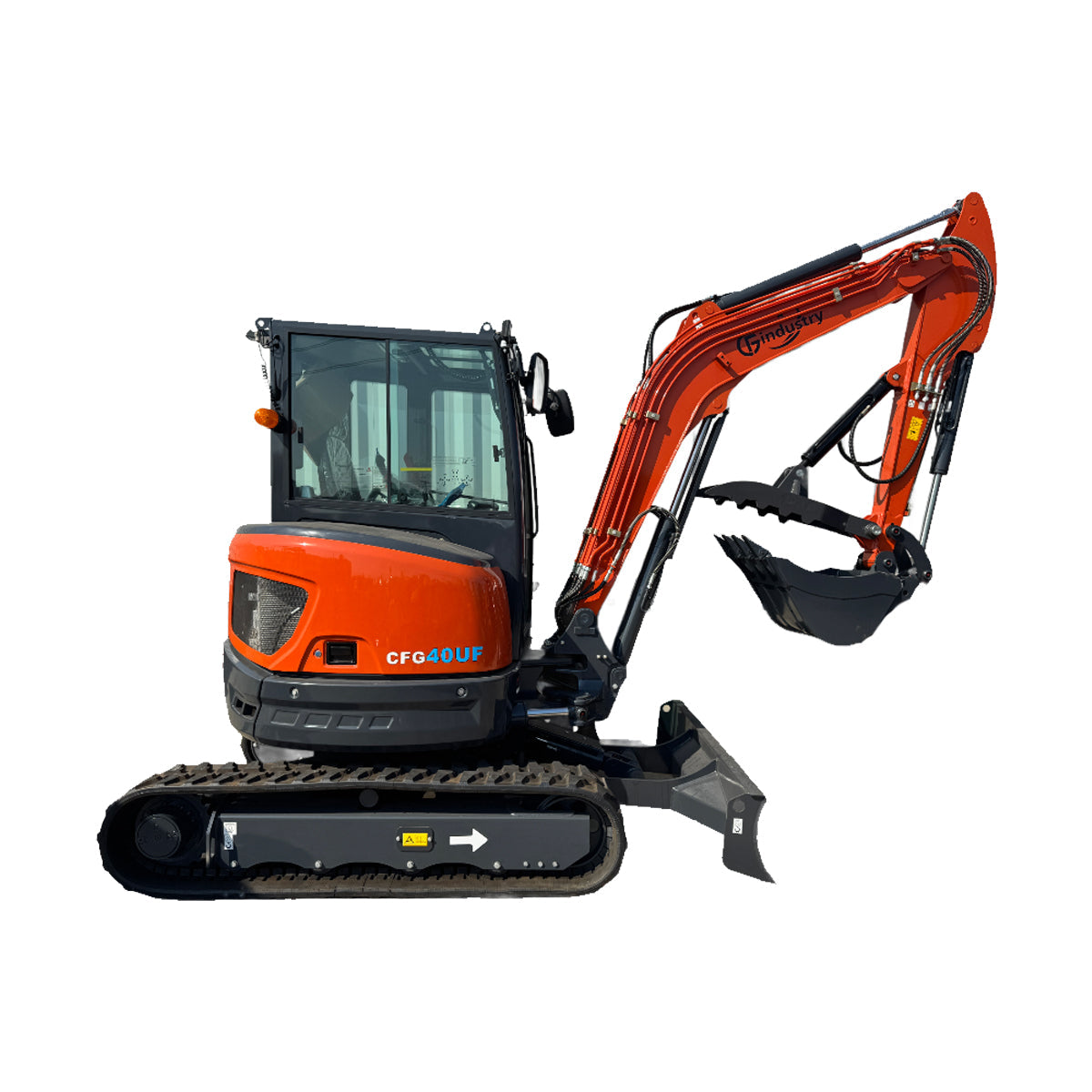

This versatile excavator offers a cabin/canopy option and delivers exceptional performance with a Kubota D1703-E4B-SWD-1 engine, 0.11m³ bucket capacity, and maximum digging depth of 130.7". Designed for precision and power, it features rubber or steel tracks, a hydraulic thumb, and excellent reach, with a maximum digging force of 31.8kN. Easy to maneuver and maintain, it's ideal for demanding tasks in construction and landscaping.
Video
In Action Video
Manual
Parts List

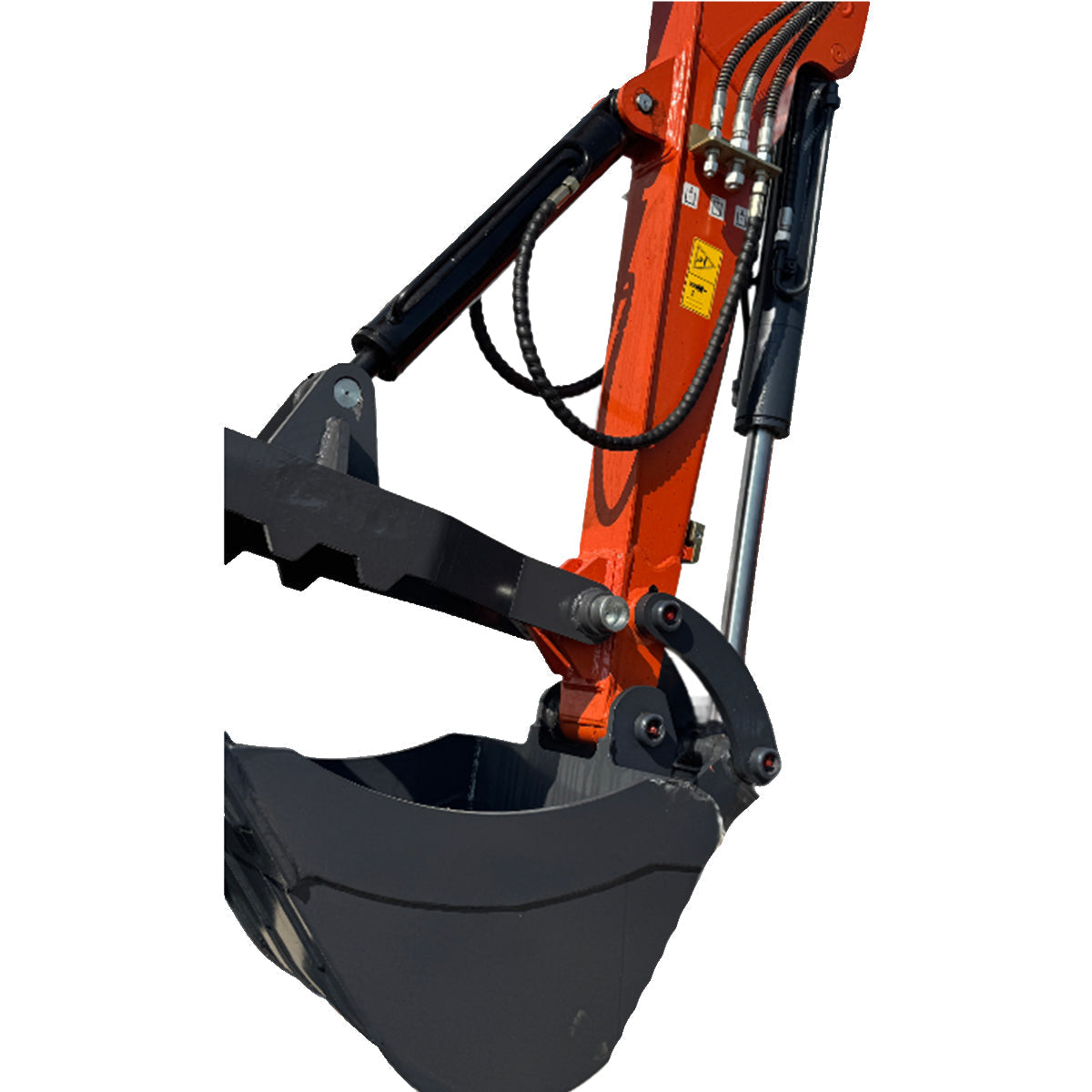

Uses 35 mm pin attachments. Replaced Radio with Hydraulic Thumb.

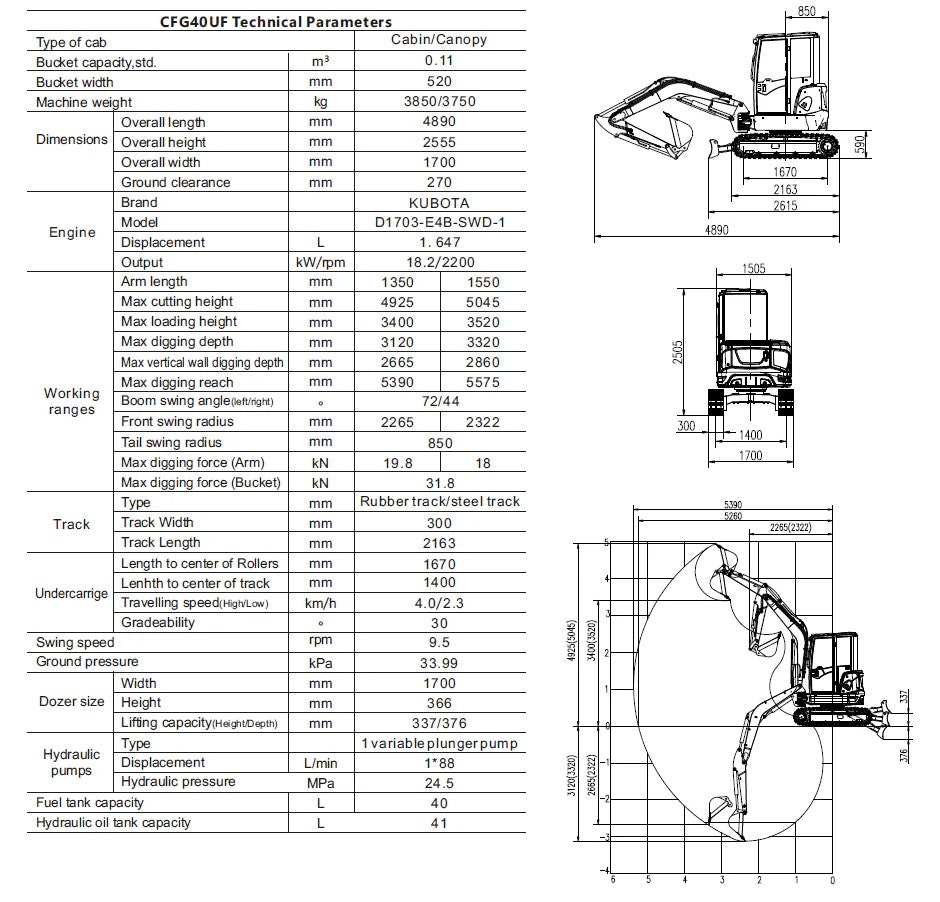

Dimension
- Operating Weight: 3.8 Ton (8,377 lb)
- Overall Length: 4,890 mm (192.5 in)
- Overall Width: 1,700 mm (67 in)
- Overall Height: 2,555 mm (100.5 in)

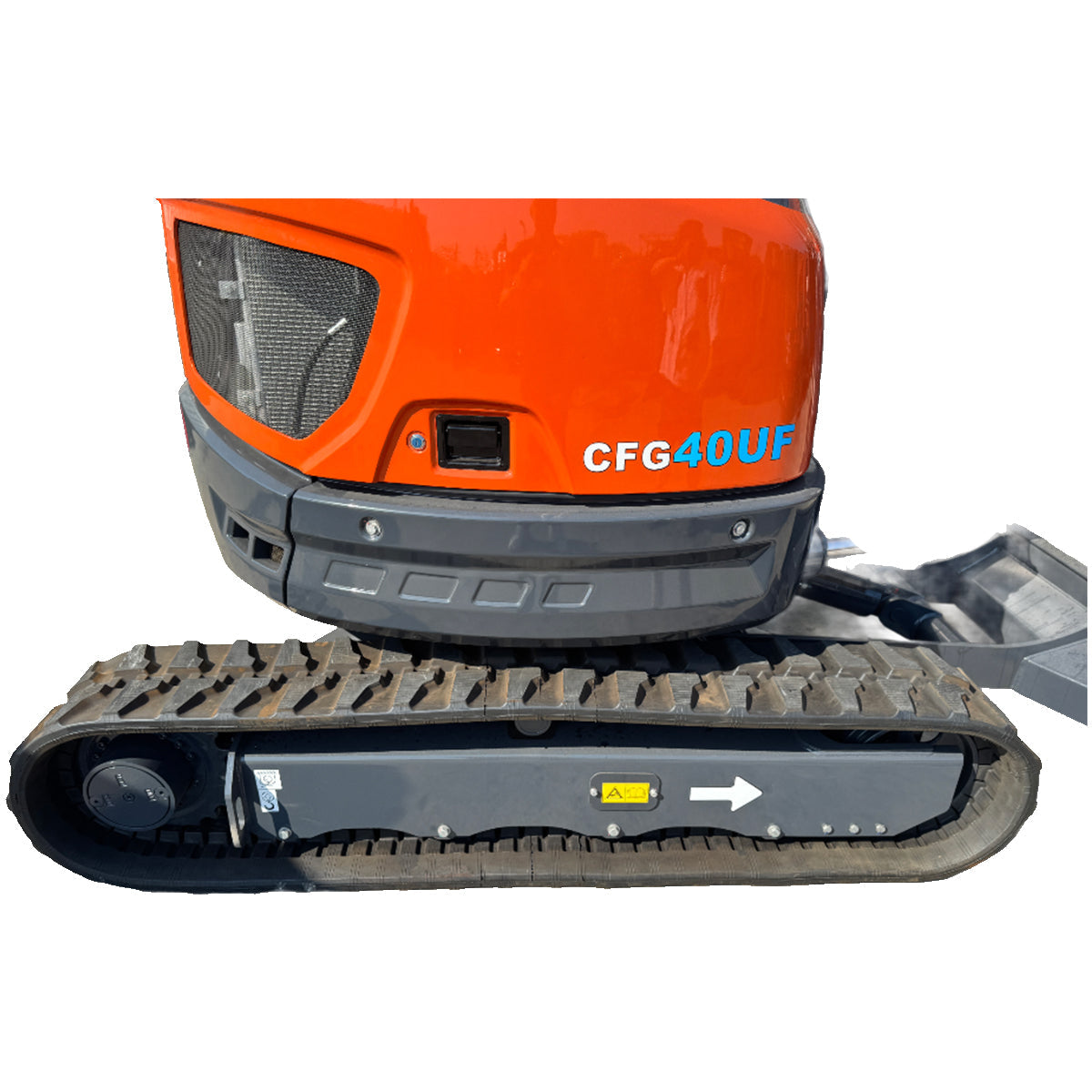

- Track Size: 300*55*84 (W*P*L)
Working Range
- Max Digging Depth: 3,320 mm (131 in)
- Max Digging Height: 5,045 mm (198 in)
- Max Dumping Height: 3,520 mm (138 in)
- Max Reach at Ground: 5,575 mm (219 in)
- Dozer Blade Width: 1,700 mm (67 in)
- Dozer Blade Height: 366 mm (14 in)
- Blade Max Lifting Height: 336 mm (13 in)
- Blade Max Drop Depth: 336 mm (13 in)
Engine
- Engine Brand: Kubota
- Fuel Type: Diesel
- Model: D1703-E4B
- Rated Power: 18.2 kW (24.4 HP)
- Displacement: 1,647 cc
- Fuel Capacity: 40L (10.6 gal)
- Hydraulic Flow Rate: 67.2 L/min (17.75 gal/min)
- Hydraulic Pressure: 24.5 MPa (3,553 psi)
- Hydraulic Tank Capacity: 41 L (10.8 gal)
- Battery: 12V

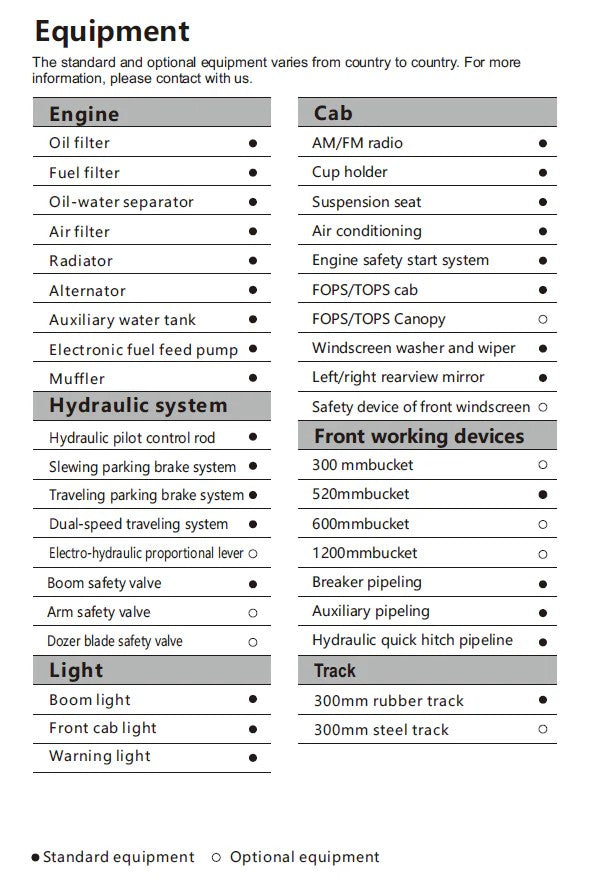

Features
- Enclosed Cab
- LED Lights
- AM/FM Radio
- AC
- Rearview Mirror
- Pilot Control

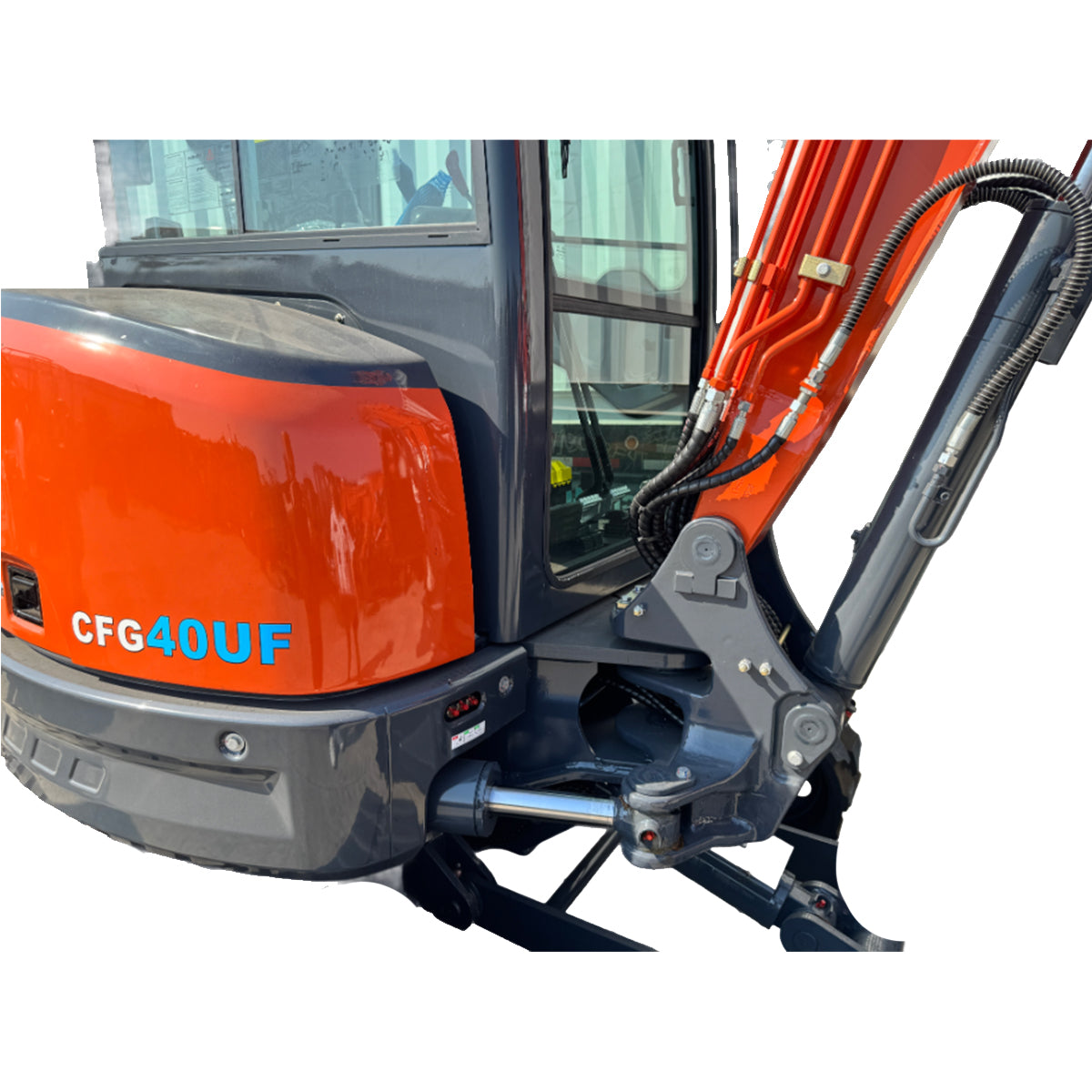

- Side Swing Boom
Need help choosing the right configuration? HyperLifts can help review your application, delivery requirements, and equipment needs before reservation.
