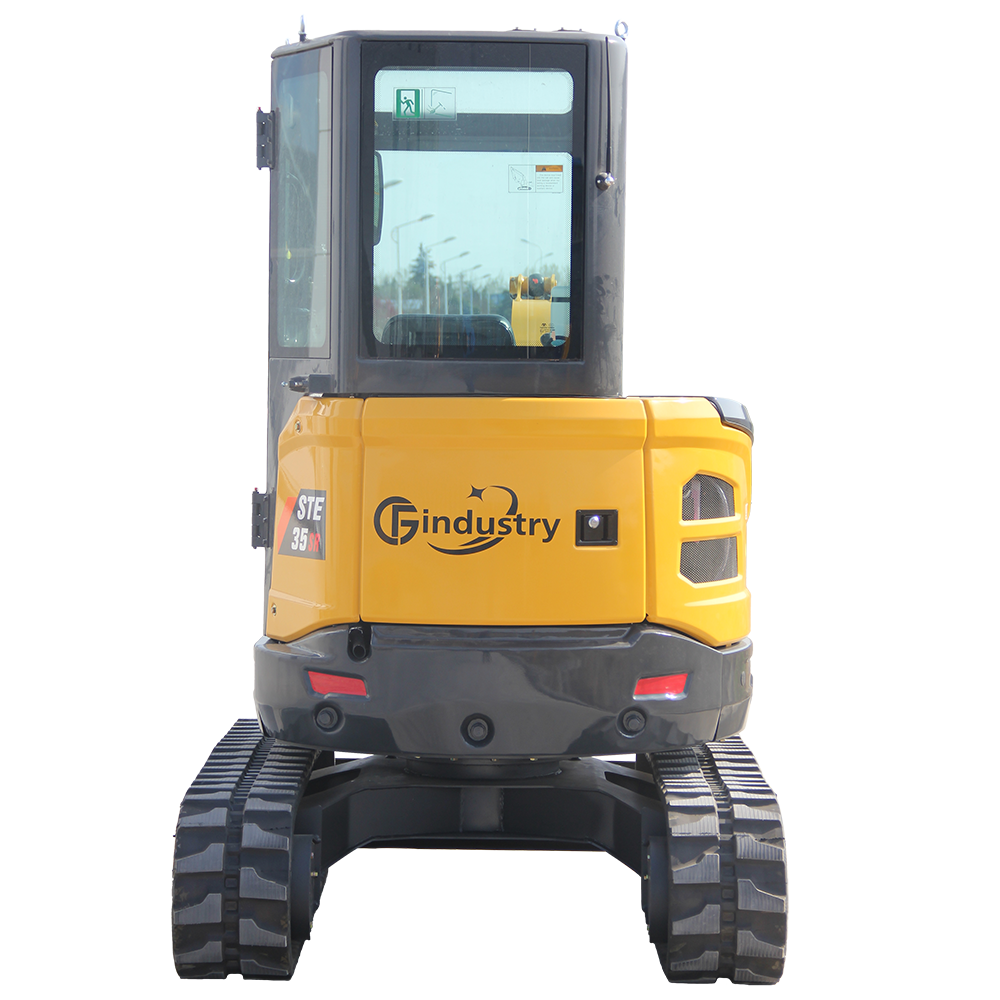

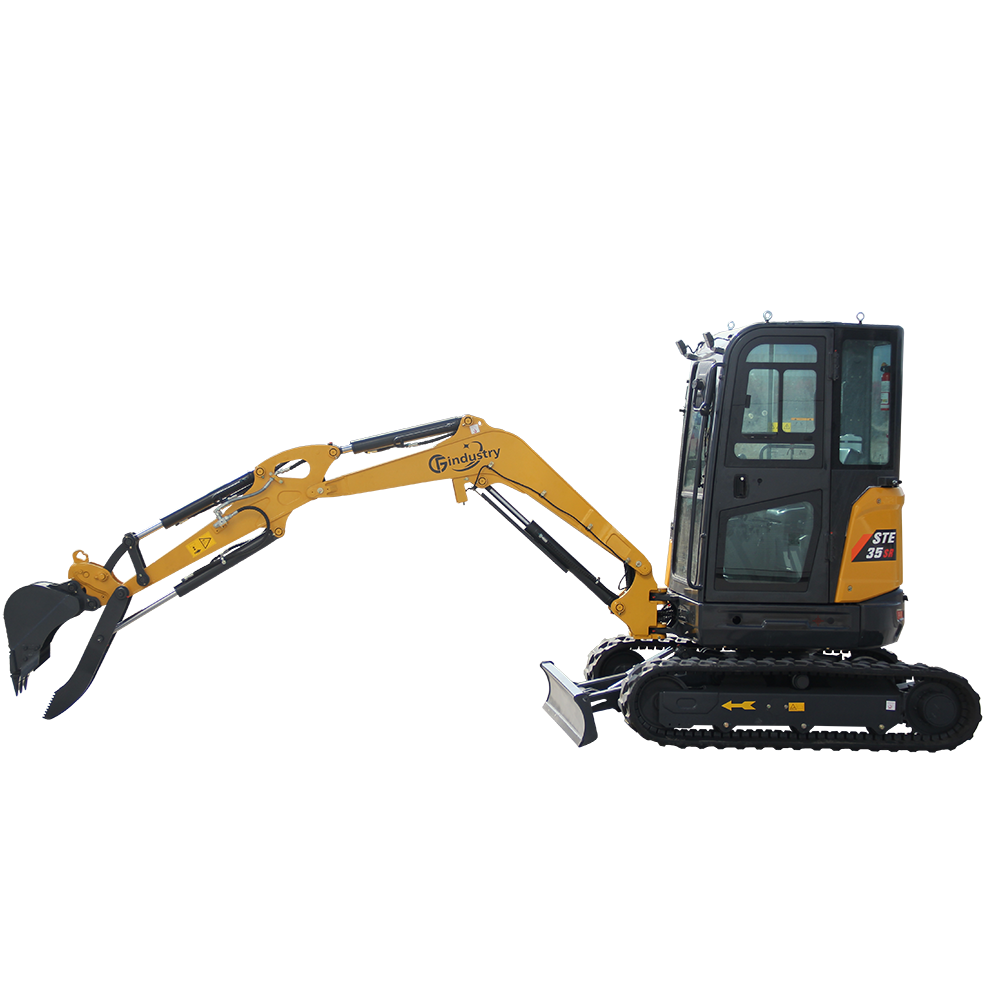

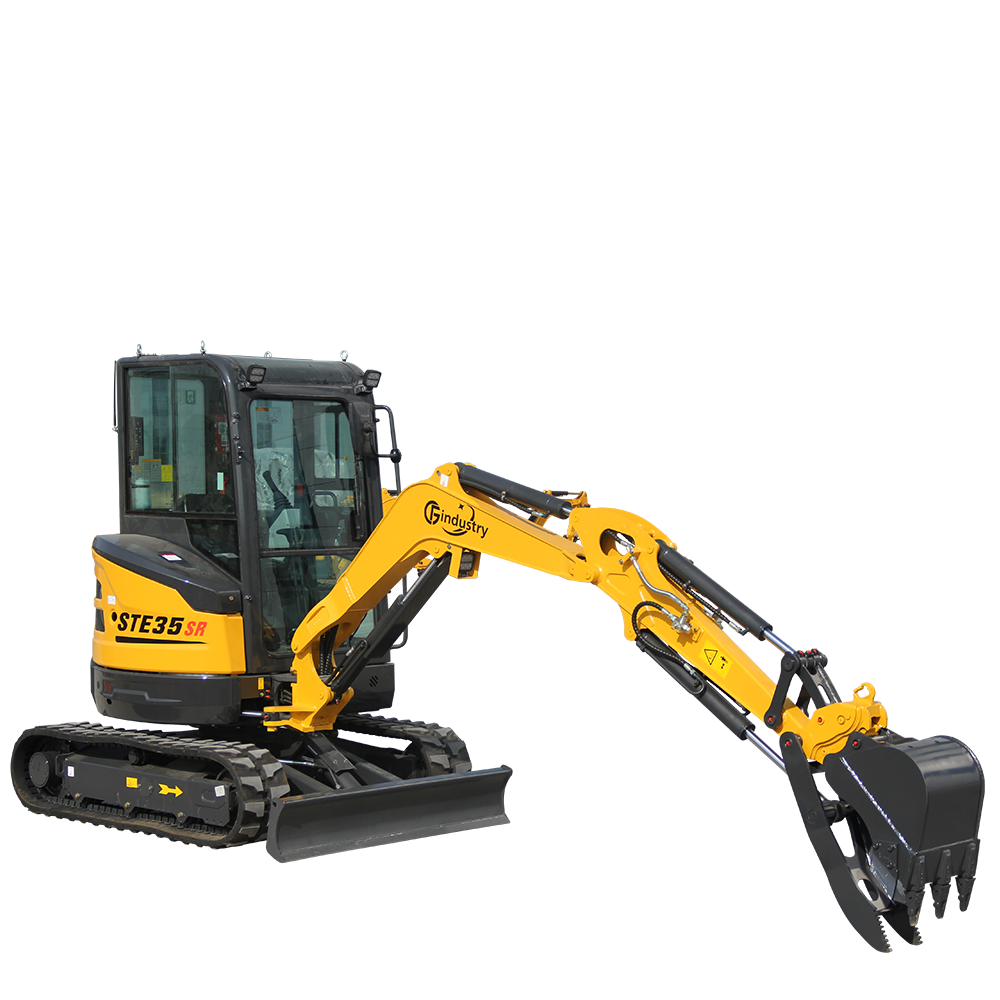

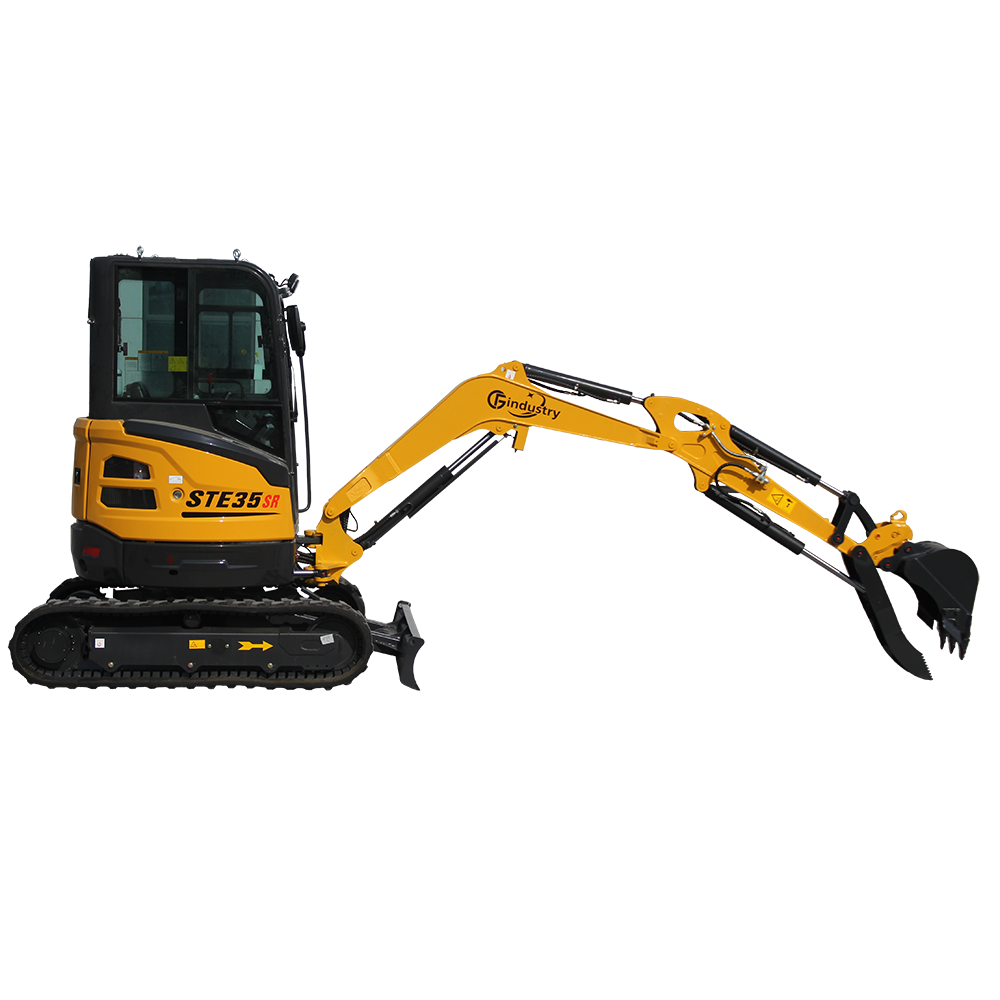

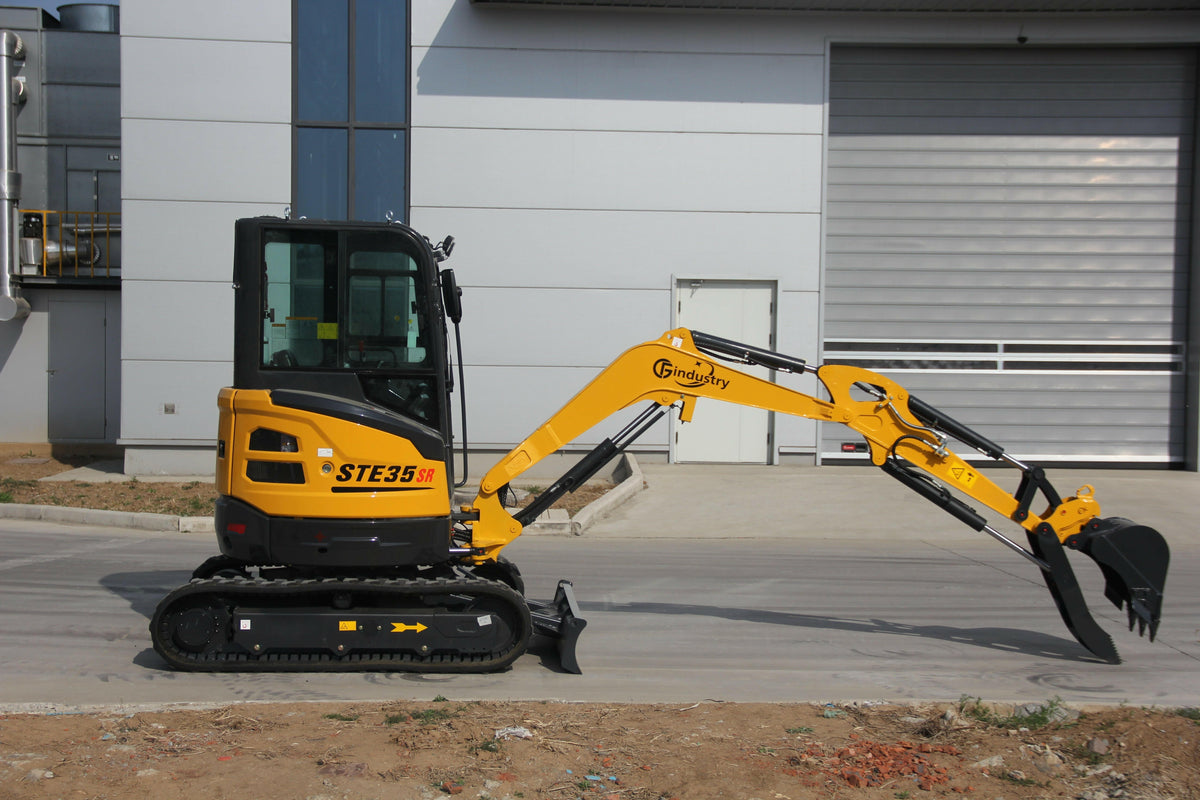

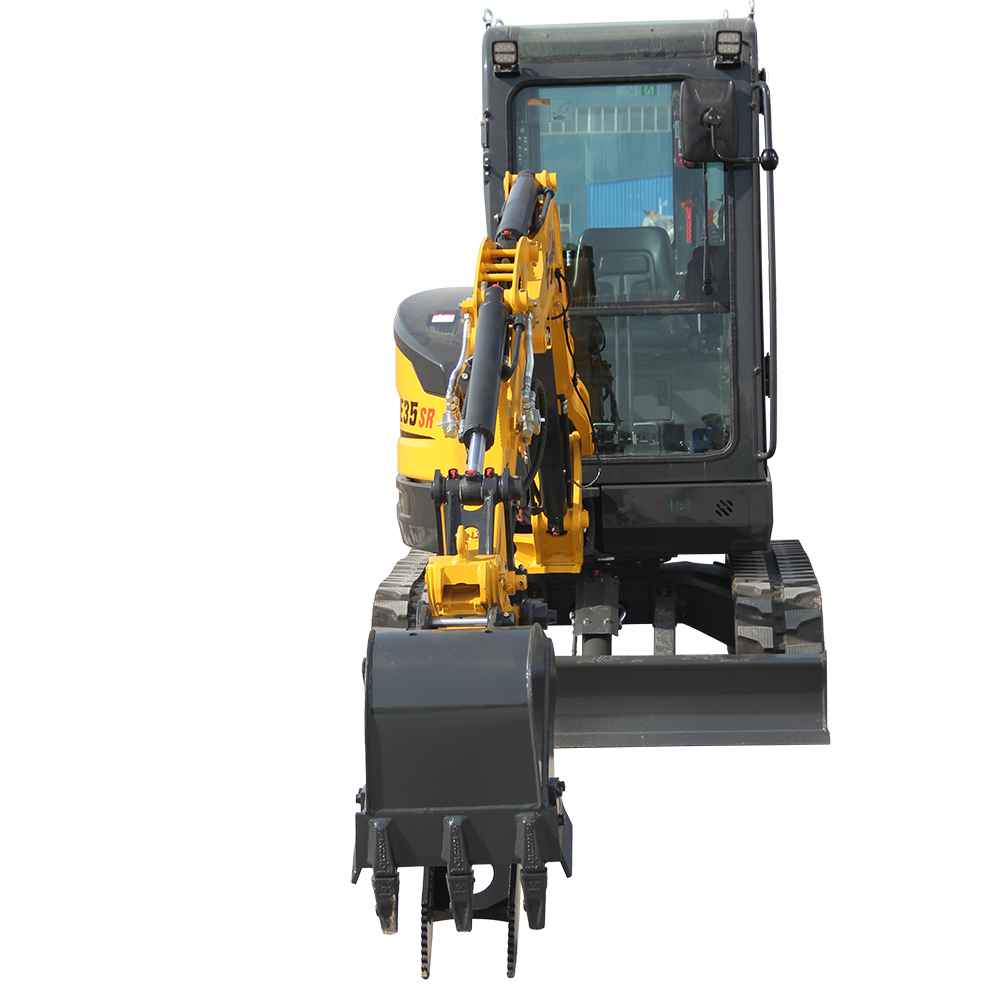

2.8 Ton Mini Excavator Yanmar 25HP Diesel Enclosed Cab w/ Thumb | CFG-STE35SR
4.9/5 243 reviews
$18,823.69
Professional equipment built for demanding jobs. 2.8 Ton Mini Excavator Yanmar 25HP Diesel Enclosed Cab w/ Thumb | CFG-STE35SR This 2.8-ton mini excavator combines compact design with powerful performance, featuring a 9.19-foot maximum digging depth for efficient work...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.

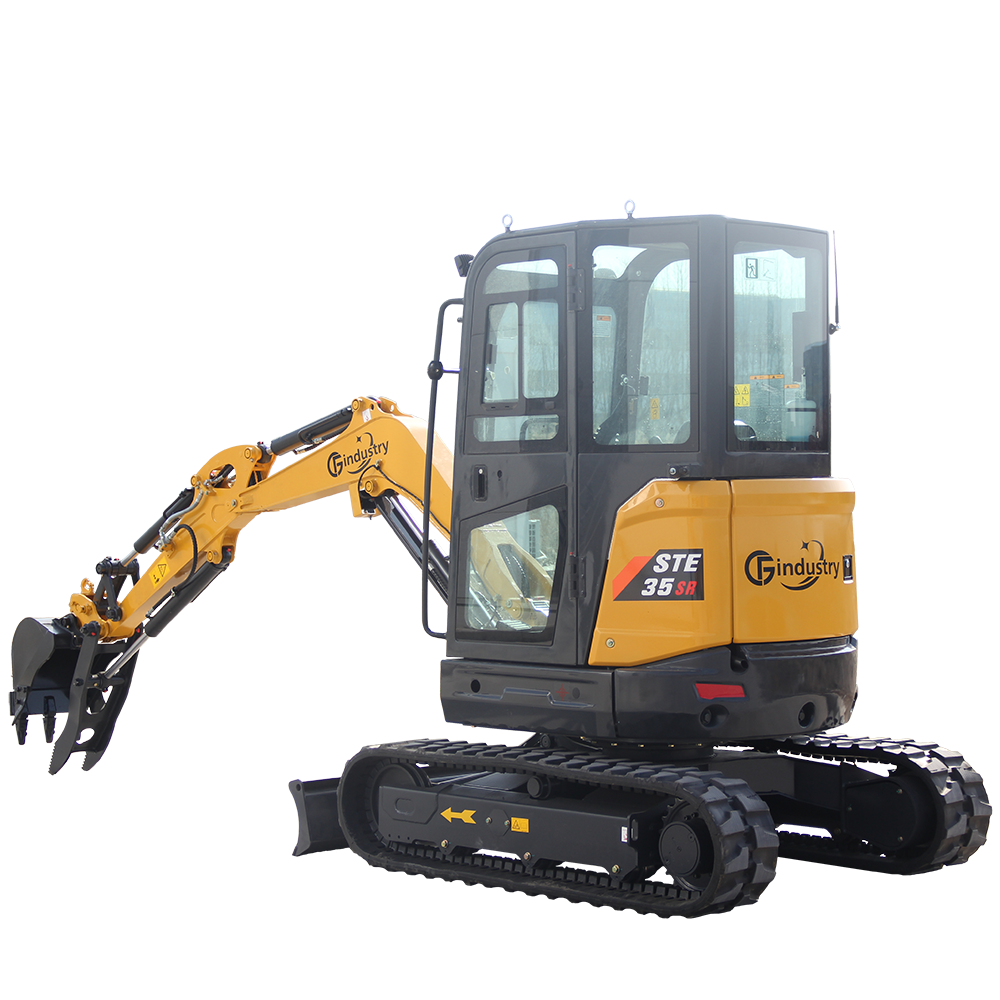

2.8 Ton Mini Excavator Yanmar 25HP Diesel Enclosed Cab w/ Thumb | CFG-STE35SR

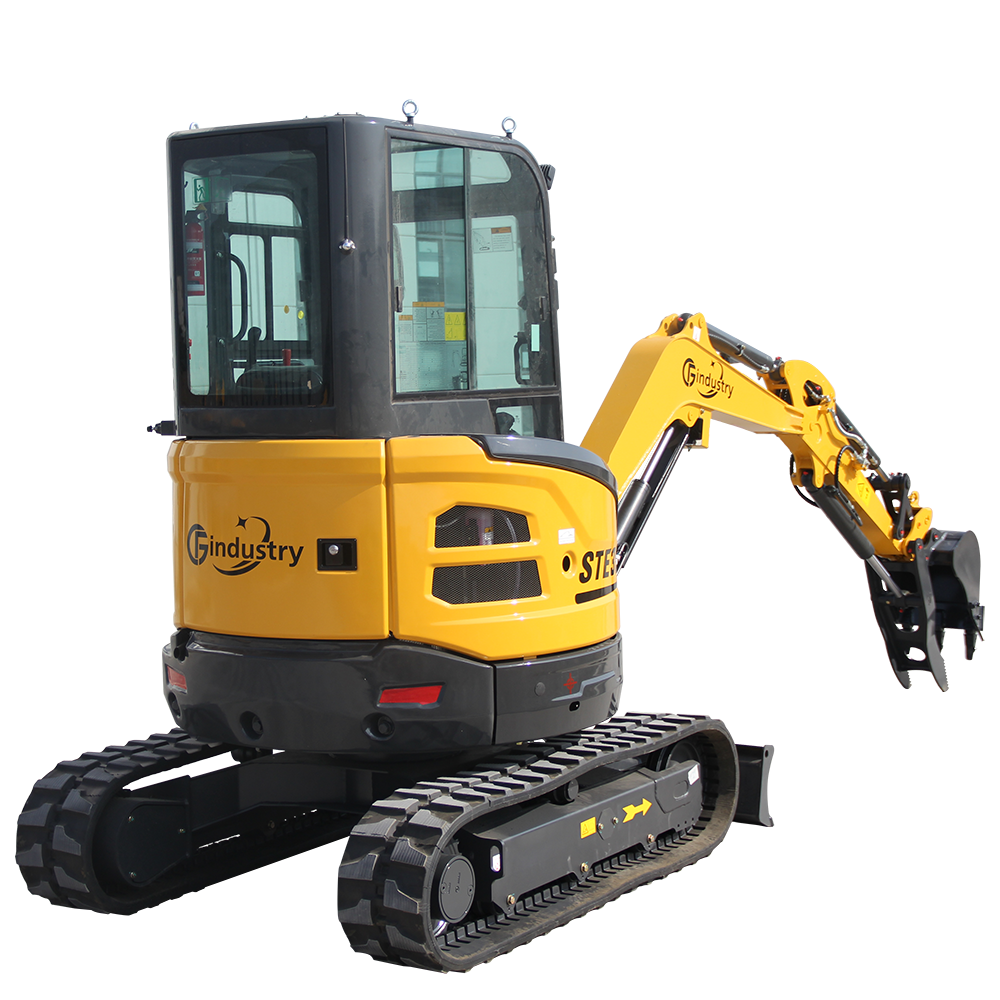

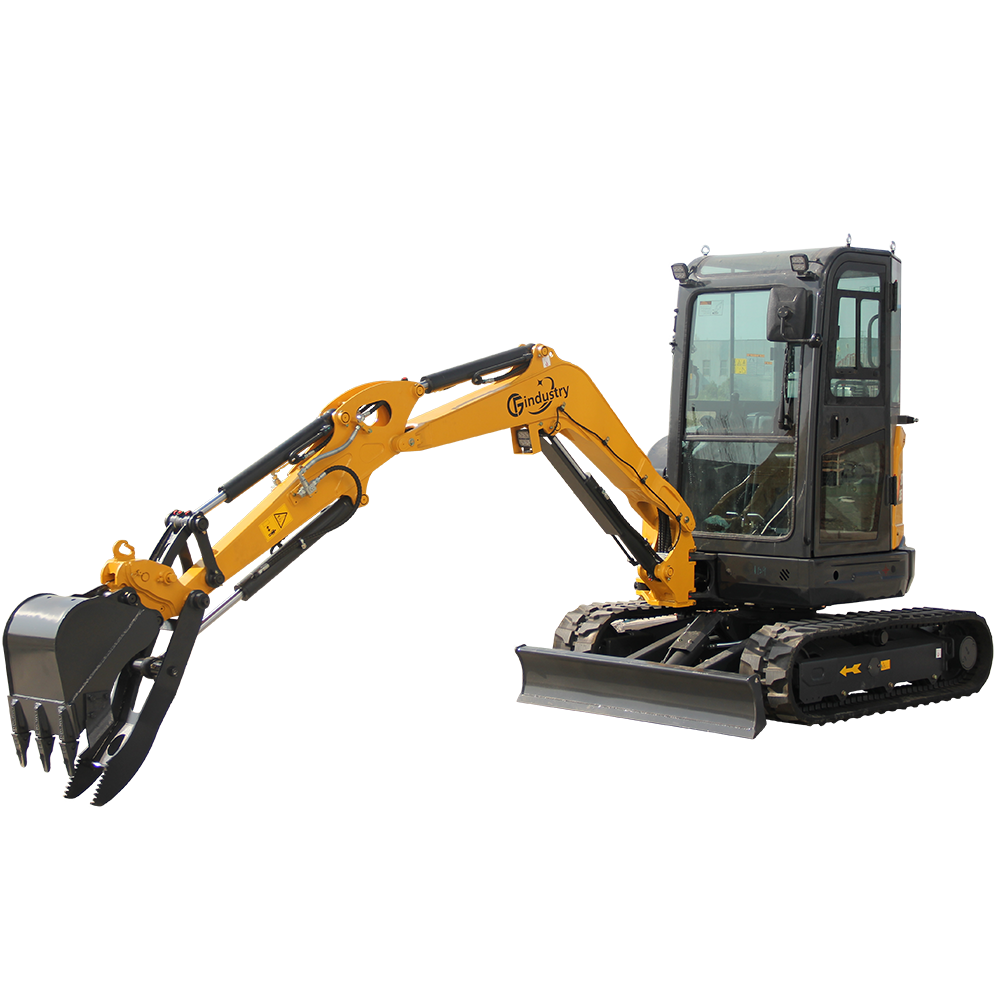

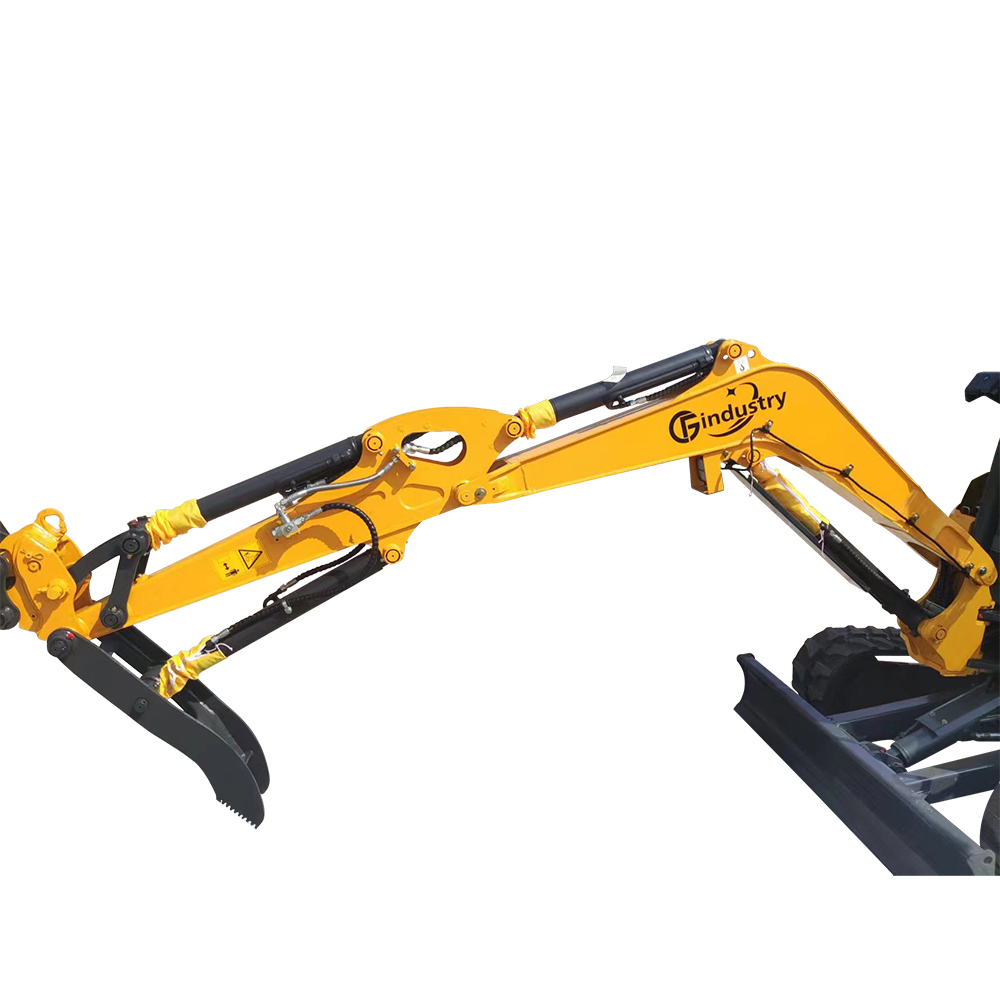

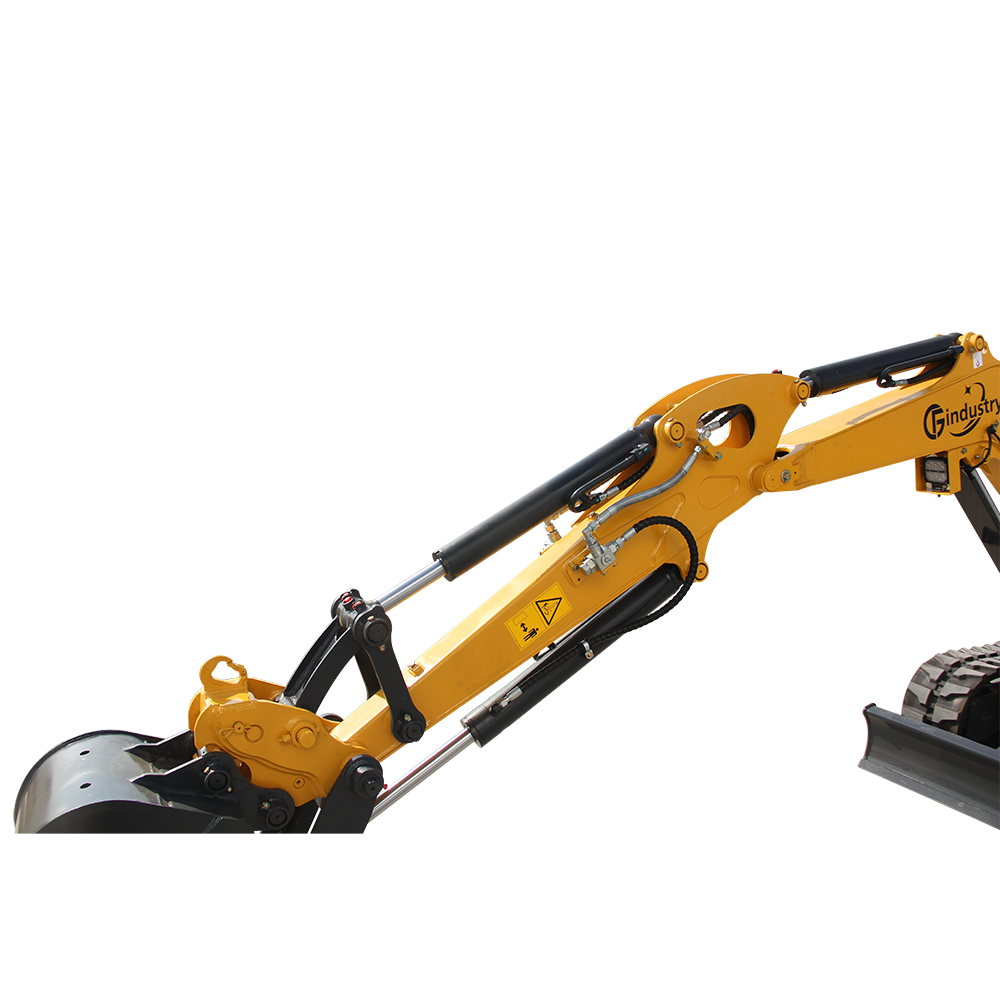

This 2.8-ton mini excavator combines compact design with powerful performance, featuring a 9.19-foot maximum digging depth for efficient work in tight spaces like driveways, backyards, and gardens. Equipped with a hydraulic thumb, internal hydraulic hoses for added safety, and rear-opening compartments for easy maintenance, it's built for reliability and convenience.
Uses 35 mm pin attachments
In-Action Video
Manual
Engine & Powertrain
-

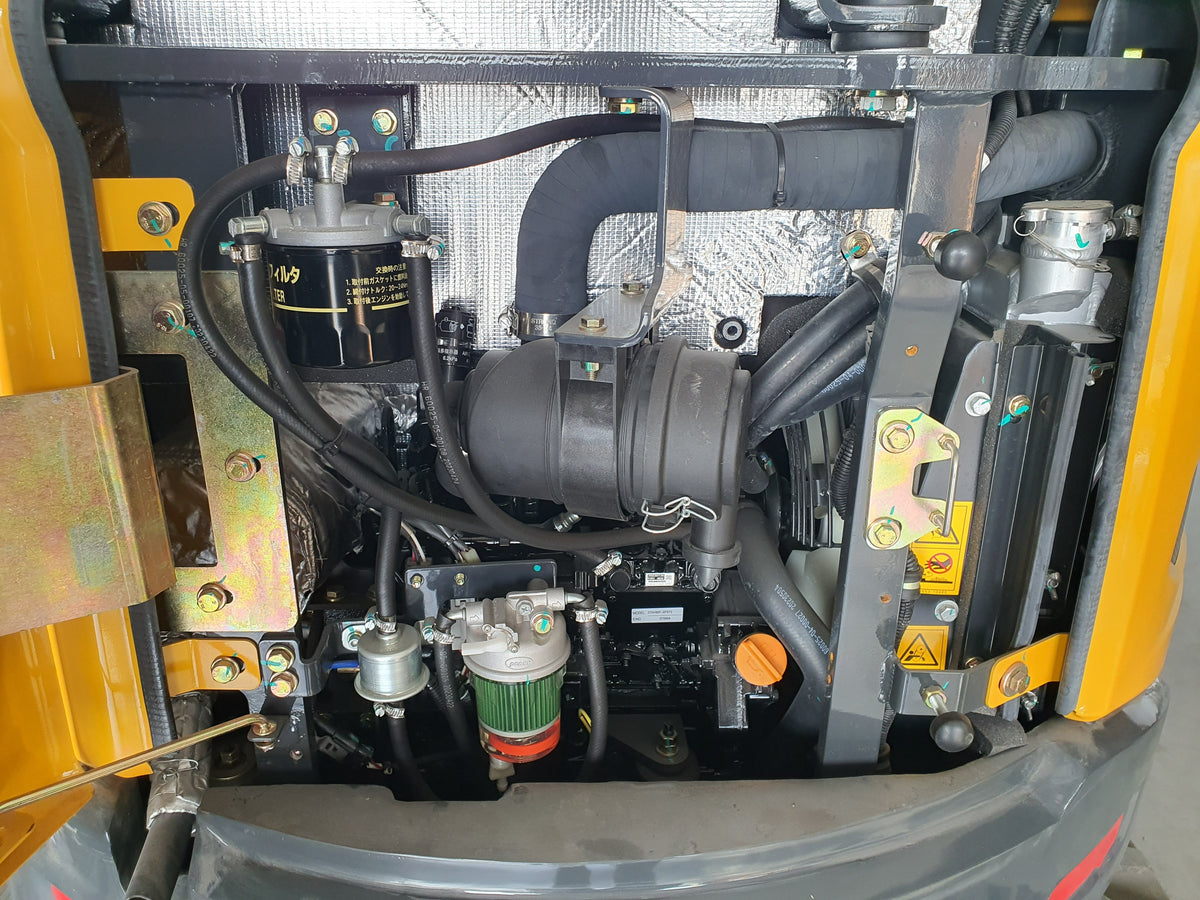

Engine Brand/Model: Yanmar 3TNV80F (3-Cylinder, Water-Cooled Diesel)
-
Emission Standard: EPA Tier 4 Final / EU Stage V
-
Displacement: 1.267 L
-
Power Output: 14.6 kW @ 2400 rpm (approx. 19.6 hp)
-
Travel Speed: Dual-speed system (2.0 / 3.1 km/h)
-
Max. Drawbar Pull: 29 kN
Hydraulic System & Forces
-
Max. Hydraulic Flow: 87 L/min (approx. 23 GPM) — Excellent for high-demand attachments!
-
Bucket Digging Force: 24 kN
-
Arm Digging Force: 14.8 kN
-
Hydraulic Pilot Control Rod: Standard Equipped (Smooth Joystick Operation)
Dimensions & Operating Weight
-
Transport Length (Arm Lowered): 4,200 mm (approx. 165.4 in)
-
Overall Height (Top of Canopy/Cab): 2,480 mm (approx. 97.6 in)
-
Undercarriage Width: 1,550 mm (approx. 61.0 in)
-
Undercarriage Length: 2,020 mm (approx. 79.5 in)
-
Upperbody Width (Zero Tail Swing): 1,400 mm (approx. 55.1 in)
-
Track Shoe Width: 300 mm (Standard Rubber Tracks)
Working Range & Capabilities
-
Max. Digging Height: 4,390 mm (approx. 172.8 in)
-
Max. Dumping Height: 3,060 mm (approx. 120.5 in)
-
Max. Digging Depth: 2,800 mm (approx. 110.2 in)
-
Max. Digging Radius: 4,800 mm (approx. 189.0 in)
-
Max. Reach at Ground Level: 4,680 mm (approx. 184.2 in)
-
Maximum Dozer Lift Height: 300 mm / Max Dozer Dig Depth: 320 mm
Refilling Capacities
-
Fuel Tank: 33 L
-
Hydraulic Oil Tank: 22 L
-
Cooling System: 5 L
-
Engine Oil: 3.4 L
Premium Standard Equipment Included:
-

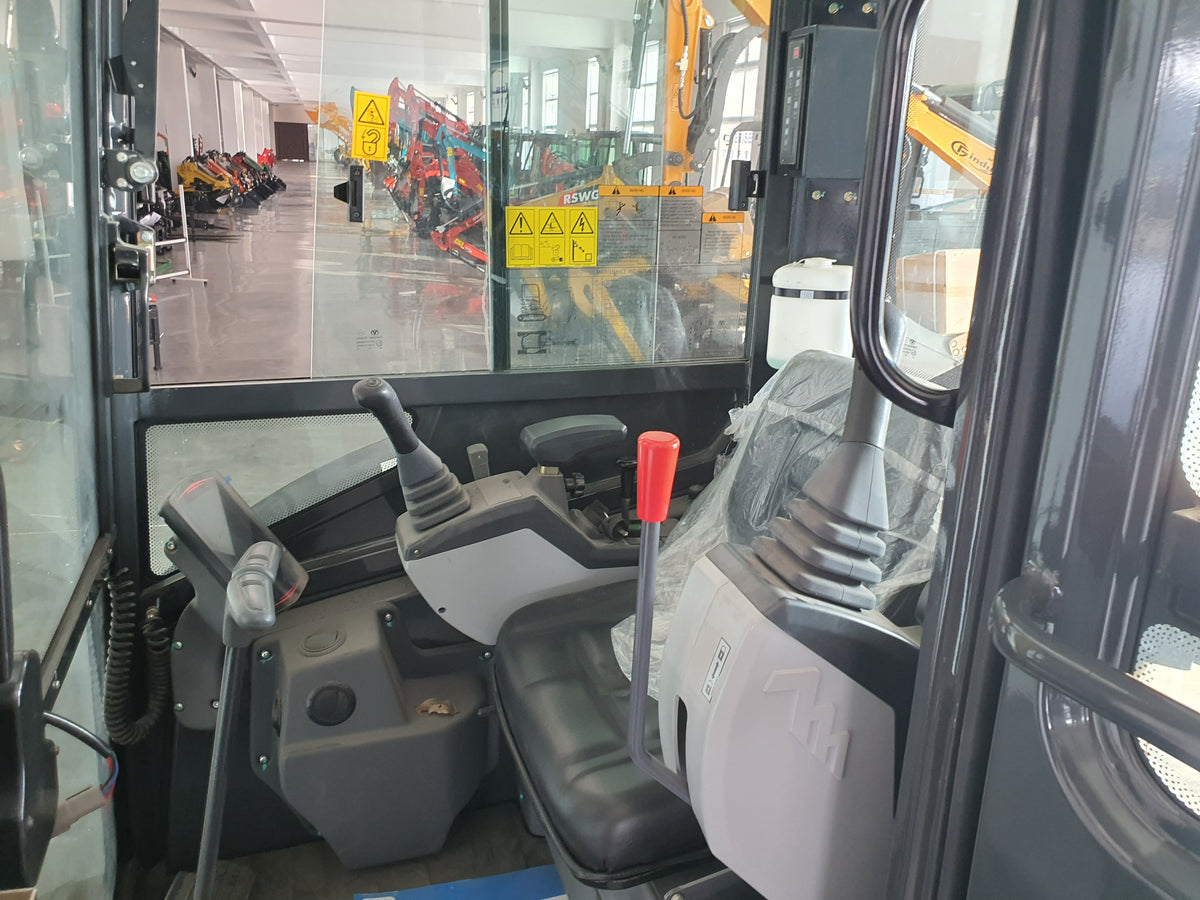

Fully Enclosed Cabin with Windscreen Washer/Wiper & Left Rearview Mirror
-
AM/FM Radio & Engine Safety Start System
-
Boom Light & Front Cab Work Lights (LED)
-
Pre-piped Breaker/Auxiliary Lines for easy attachment hookups
-
460mm Heavy-Duty Backhoe Bucket (Capacity: 0.06 m³)
