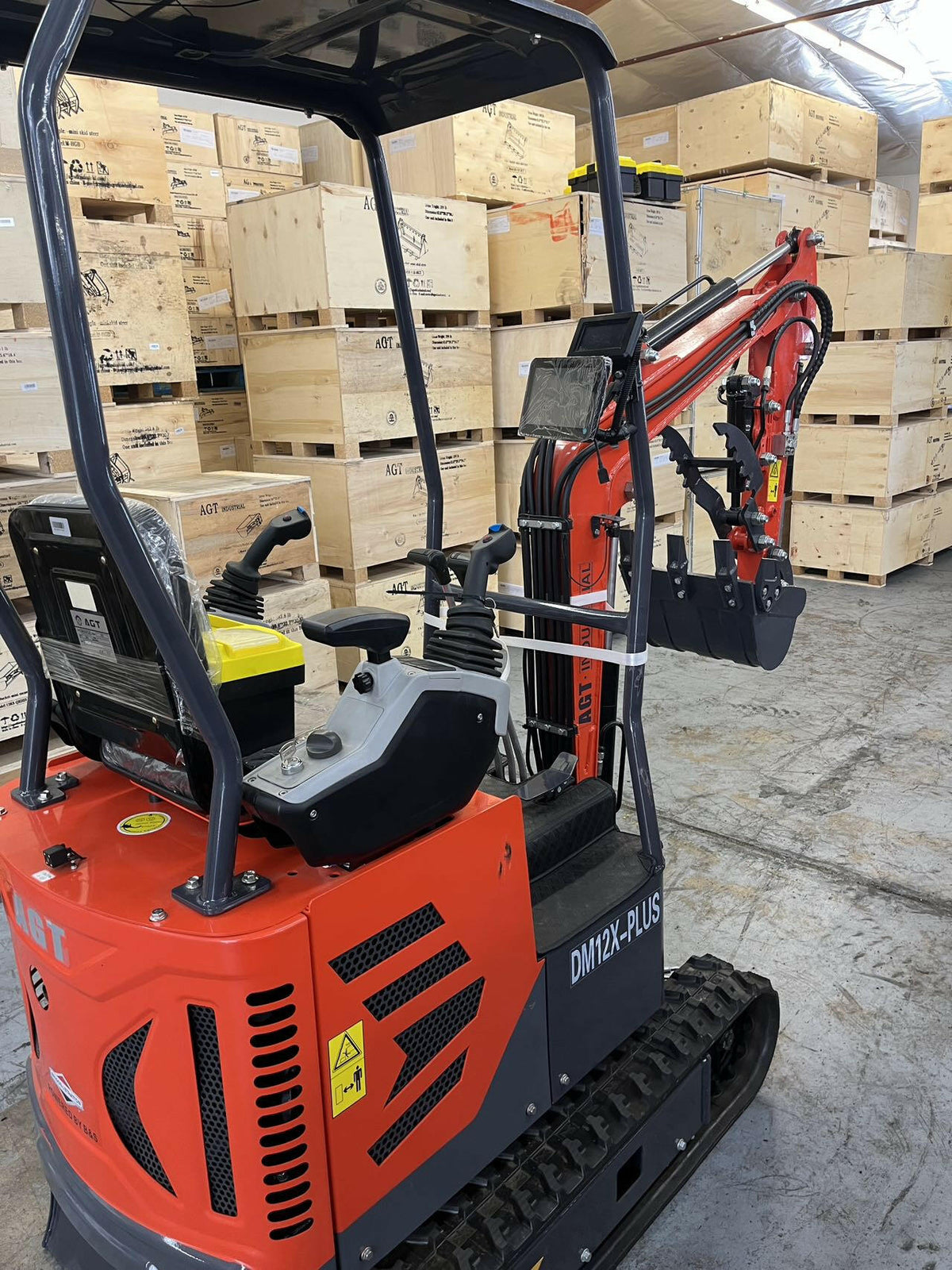

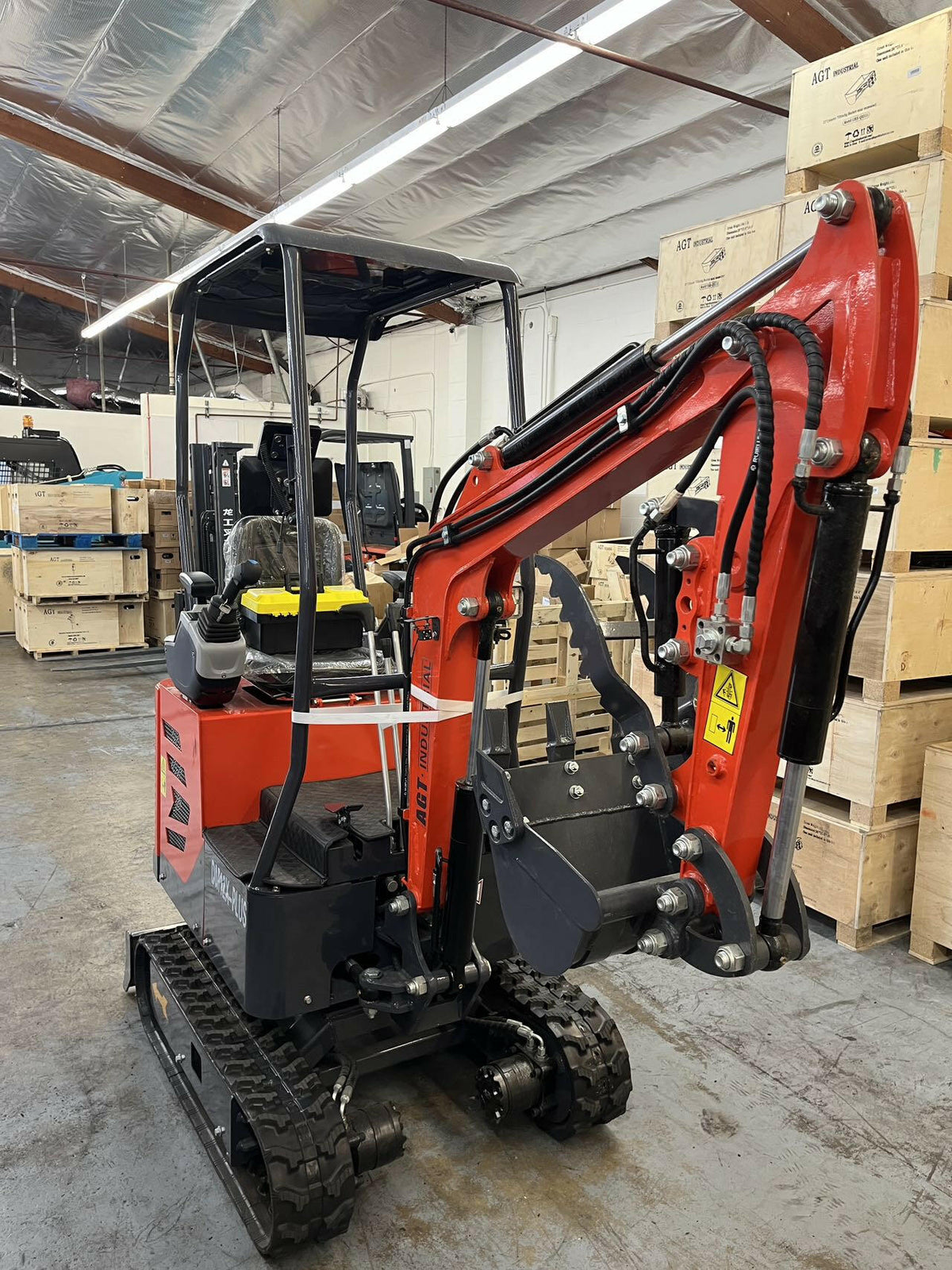

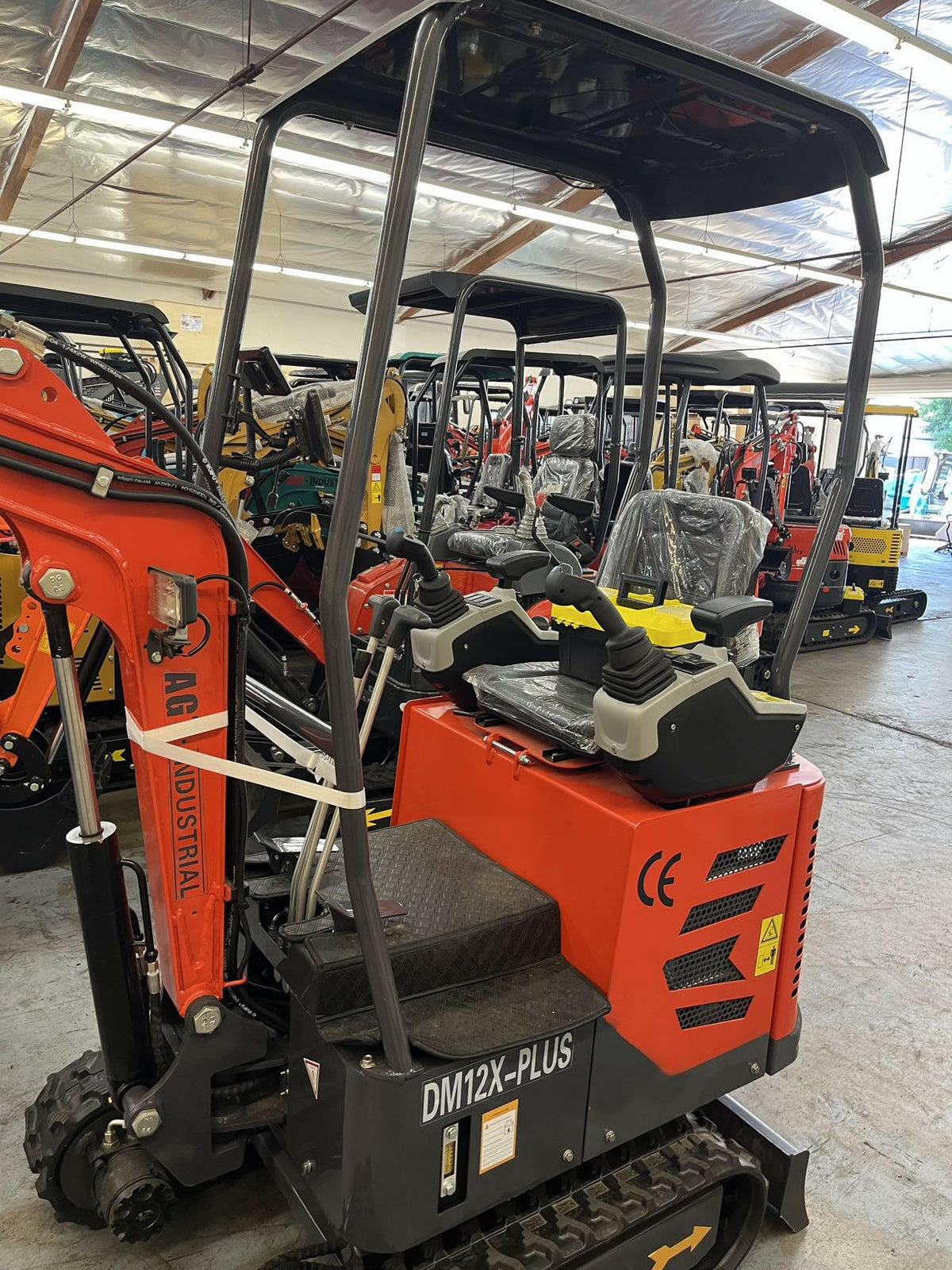

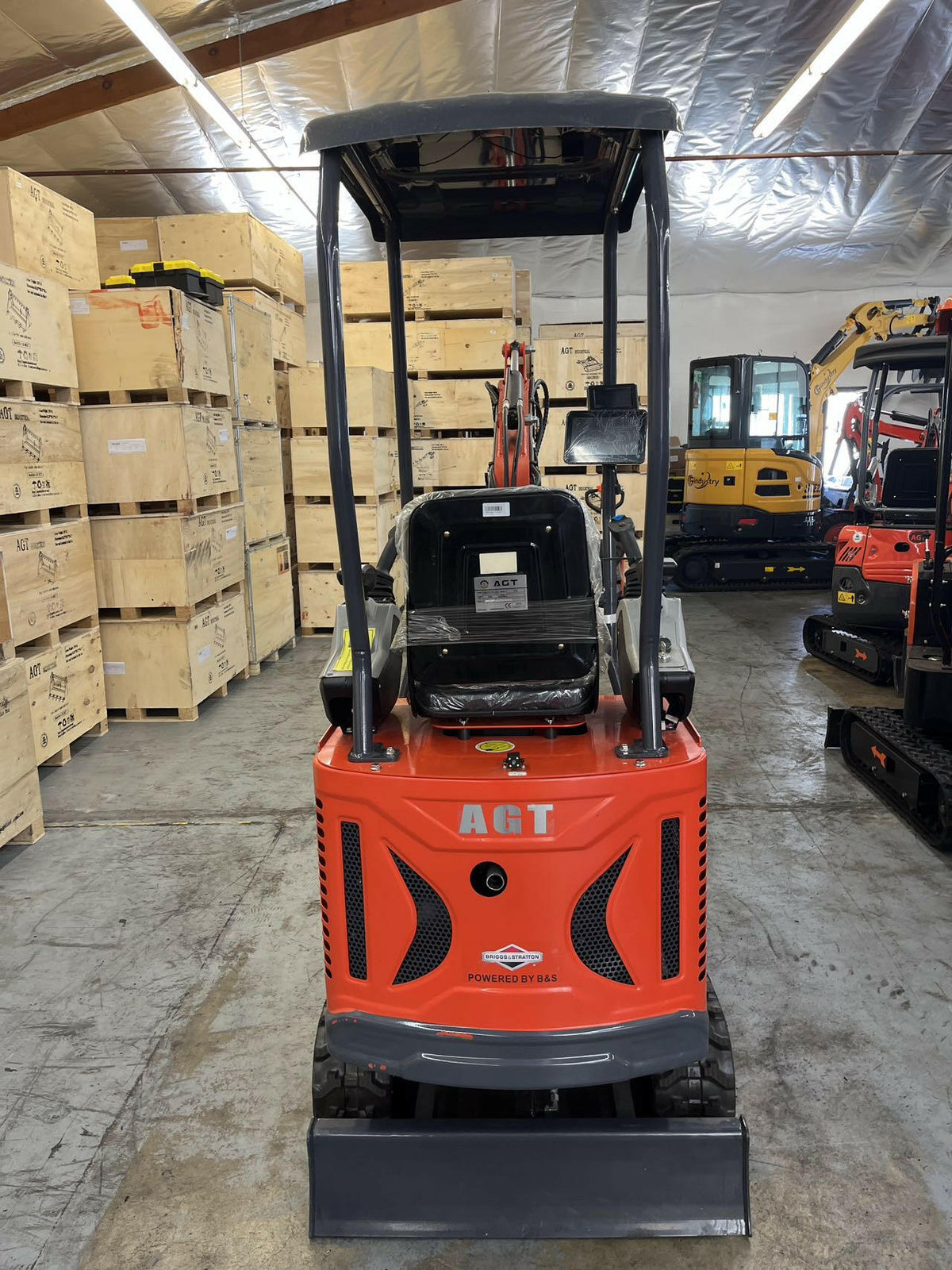

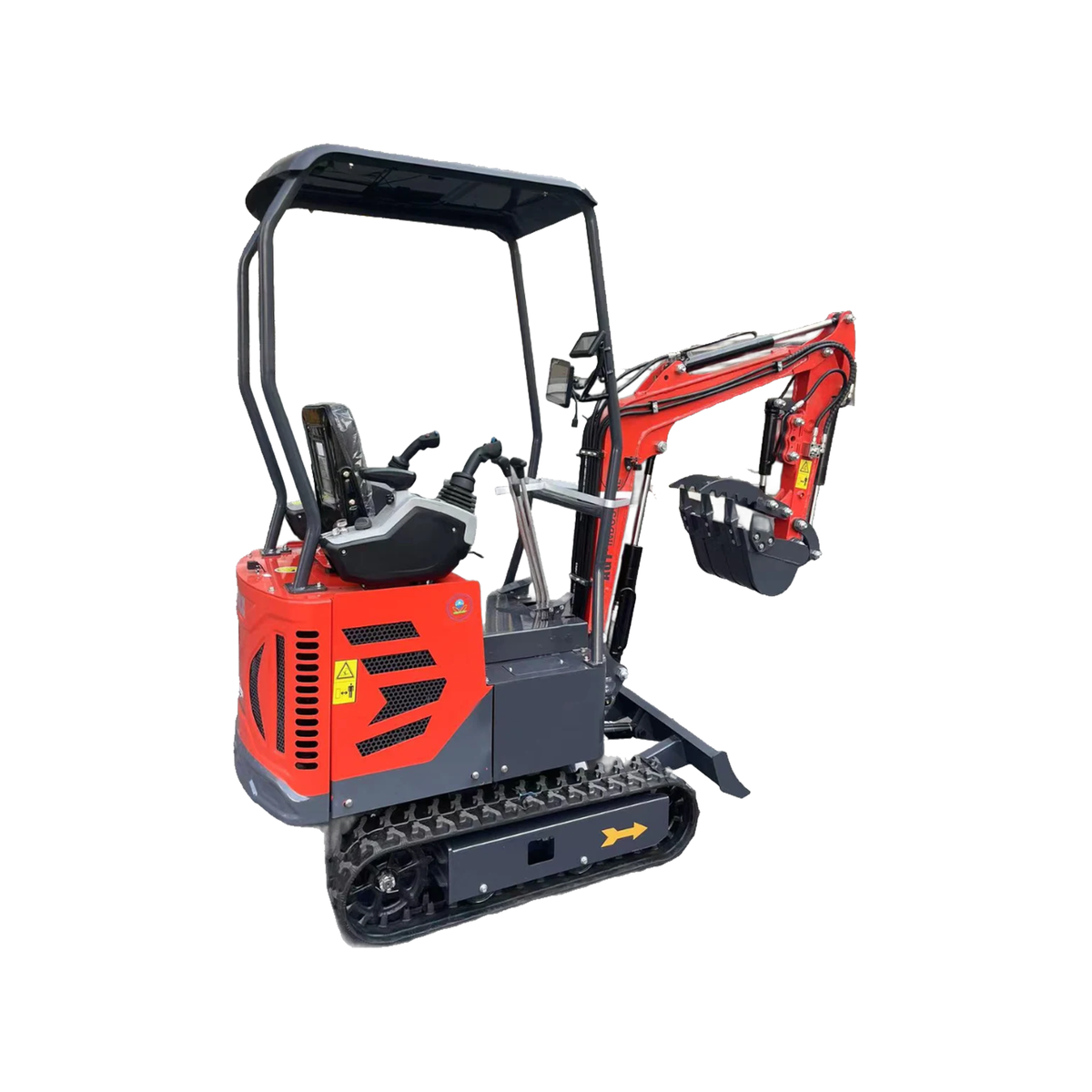

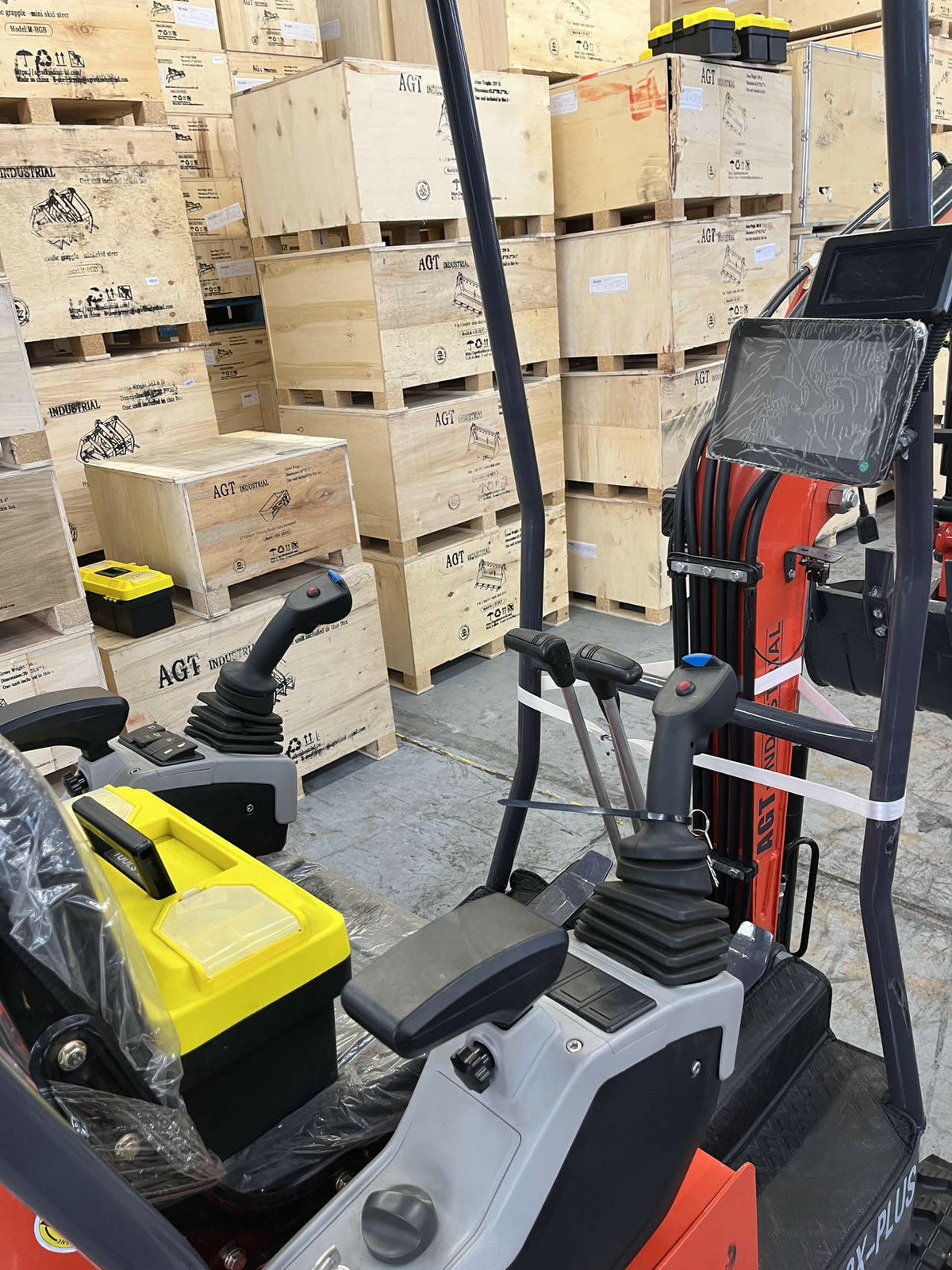

1.1 Ton Pro Mini Excavator EFI Engine w/ Two Speed & Pilot Control | DM12X-PLUS
4.9/5 243 reviews
$4,458.99
Professional equipment built for demanding jobs. 1.1 Ton Pro Mini Excavator EFI Engine w/ Two Speed & Pilot Control | DM12X-PLUS AGT-DM12X-PLUS has a compact and reliable design that ensures easy maneuverability in small areas such as farms,...
Credit cards & bank transfers accepted
Delivery estimateTypical delivery is 2–6 weeks
Freight coordinationDestination and unloading review
Warranty & supportProduct guidance beyond delivery
Equipment guidance
Practical help before you order.
Nationwide delivery
Freight coordinated to your location.
Freight coordination
Destination and unloading details reviewed with your order.
Product overview
Built for the work ahead.
Professional equipment built for demanding jobs.
1.1 Ton Pro Mini Excavator EFI Engine w/ Two Speed & Pilot Control | DM12X-PLUS
AGT-DM12X-PLUS has a compact and reliable design that ensures easy maneuverability in small areas such as farms, gardens, public spaces, parks, orchards, and farms. Featuring Two Speed, Pilot Control, Hydraulic Cooler, Swing Boom, and more! This is a feature heavy Mini Excavator and the Pro-grade version of AGT-DM12X-C.
Start Up Instruction
Walk-Around Video
Manual
Exploded View Parts List
TECHNICAL DATA:
- EFl Electric Fuel lnjection Engine
- Stainless steel screws for exterior parts

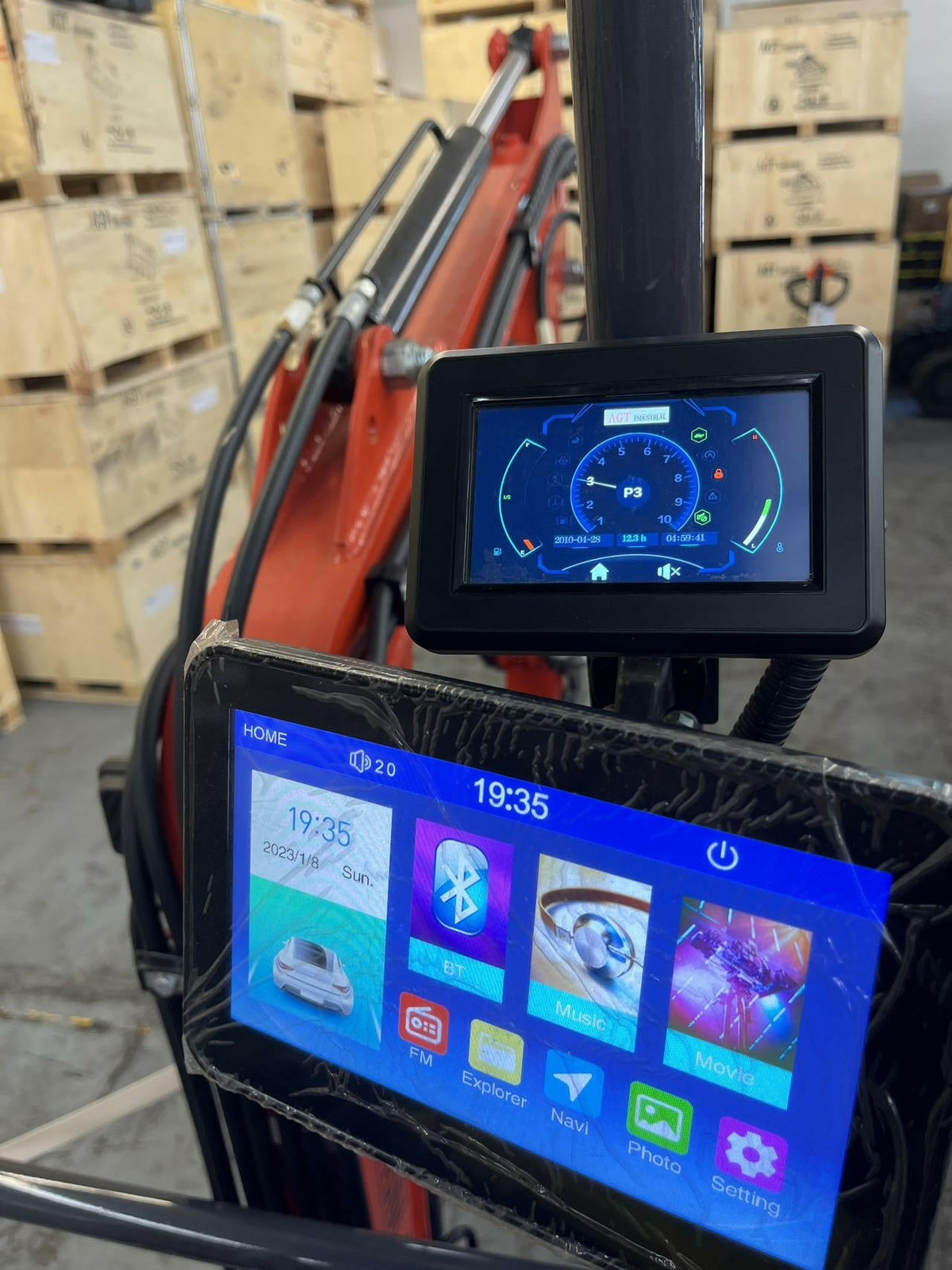

- Dual display screen (parameter screen, entertainment screen)
- Front and rear double camera
- Oil cooling configuration
- Electric injection engine, adjustable high and low speeds
- Main Pump Type/Model: Gear pump/06
- Travel Hydraulic Motor: BM6-310
- Swing Hydraulic Motor: BM2-250
DIMENSION
- Operating Weight: 1.1 Ton (2,425 lbs)
- Overall Length: 2,560 mm (100 in)
- Overall Width: 965 mm (38 in)
- Overall Height: 2,210 mm (87 in)
- Track Size: 180*72*37 (Width*Pitch Length*Links)
WORKING RANGE
- Max Digging Depth: 1,753 mm (69 in)
- Max Digging Height: 2,667 mm (105 in)
- Max Dumping Height: 1,905 mm (75 in)
- Max Reach at Ground: 3,073 mm (121 in)
- Blade Width: 900 mm (35 in)
- Blade Height: 200 mm (8 in)
- Blade Max Lifting Height: 380 mm (15 in)
- Blade Max Drop Depth: 170 mm (6.7 in)
ENGINE
- Engine Brand: RATO
- Fuel Type: Gasoline (Direct Fuel injection)
- Rated Power: 10 kW (13.3 HP)
- Displacement: 420 cc
- Fuel Capacity: 6.6 L (1.7 gal)
- Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
- Hydraulic Pressure: 16 MPa (2,320 PSl)
- Hydraulic Tank Capacity: 18 L (4.7 gal)
- Battery: 12V, 45 - 60Ah
FEATURES

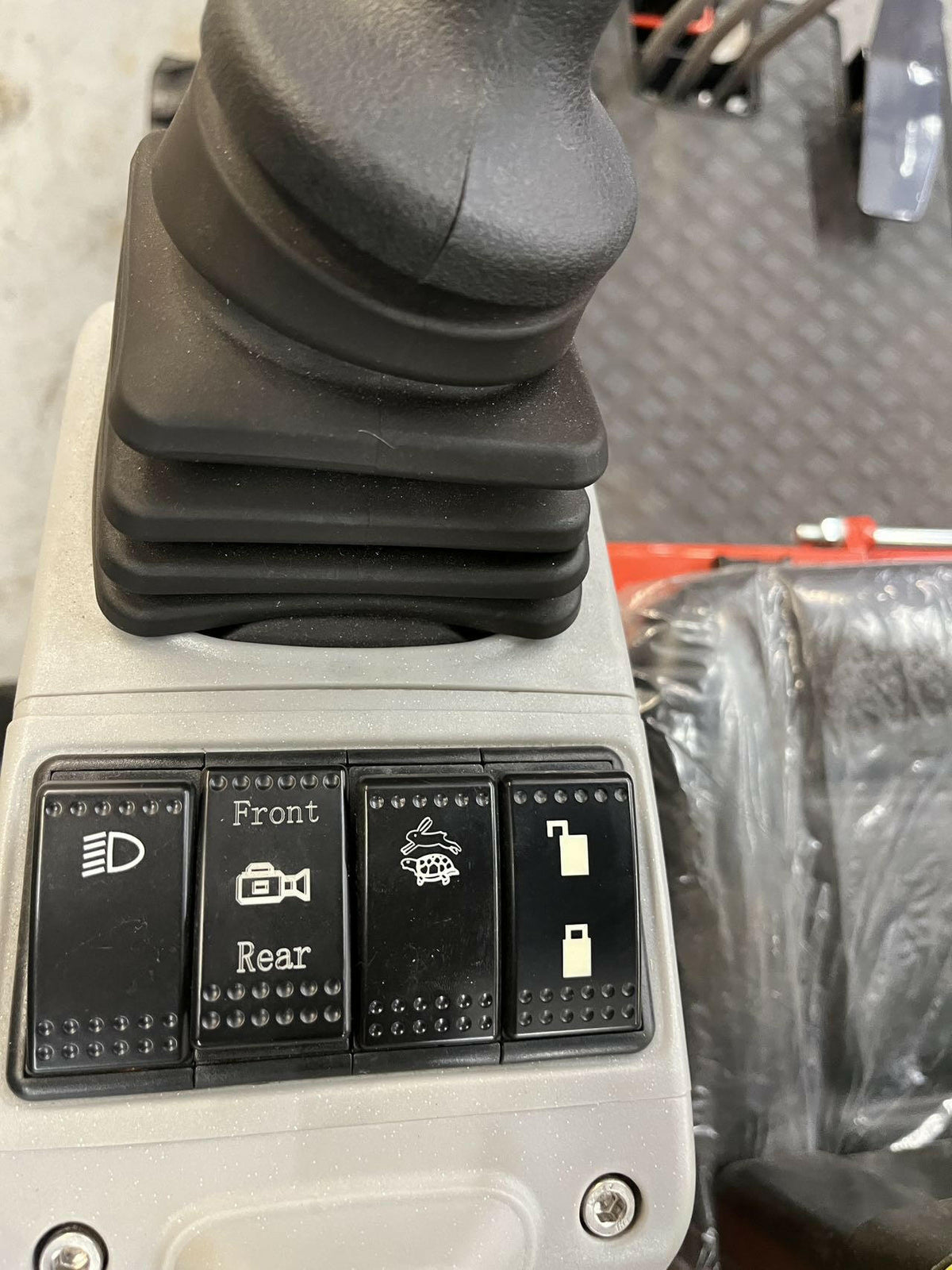

- Pilot Control
- Electric Fuel injection
- Dual Display
- Front & Rear Camera

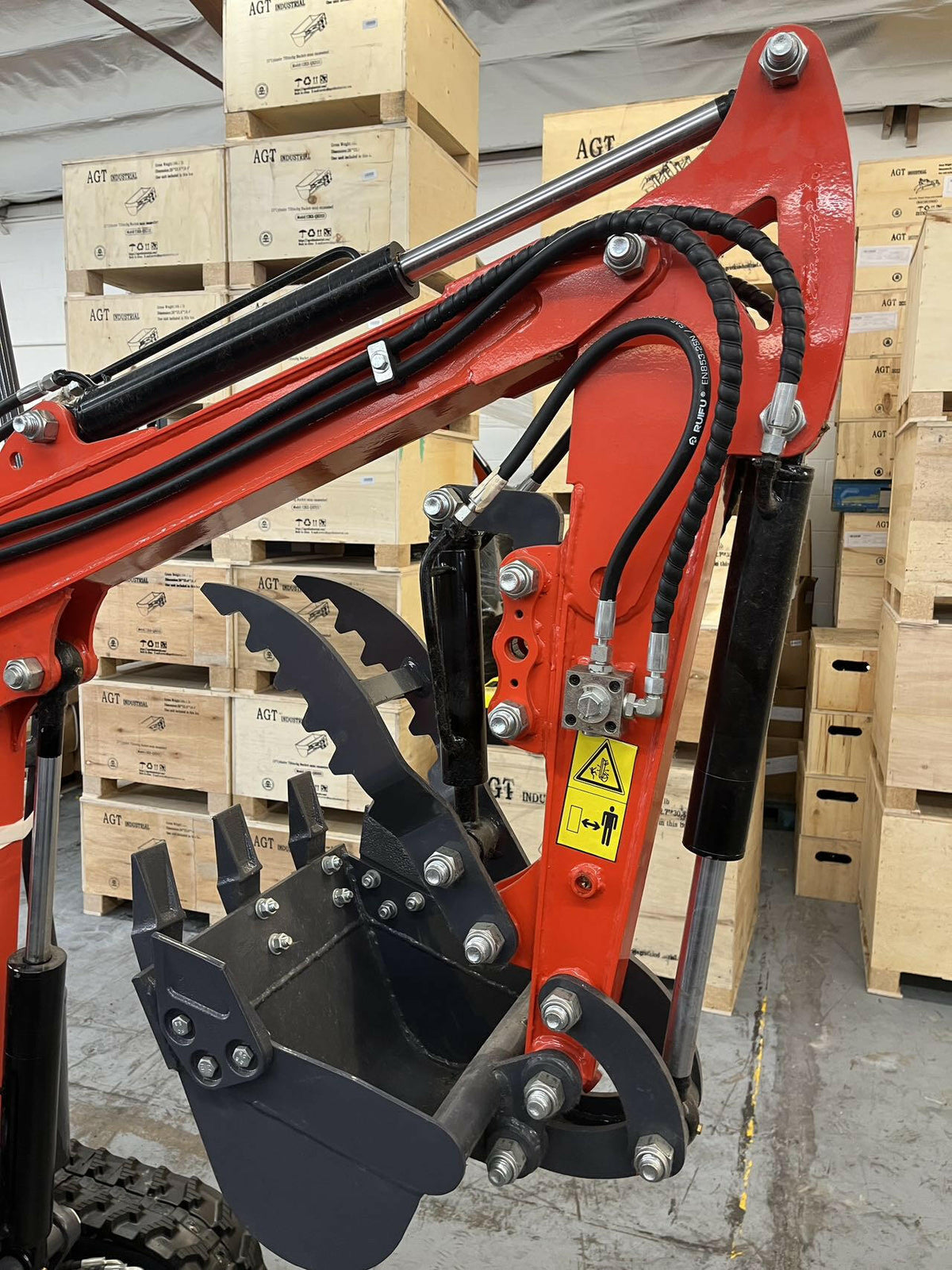

- Hydraulic Thumb
- Swing Boom
